AI Agent Tool Integration: Function Calling, MCP, and Secure Execution

Quick answer: AI agent tool integration connects a model's proposed actions to controlled application capabilities such as search, databases, and APIs. Function calling provides a structured way for a model to request an action; the application validates, authorizes, executes, and reports the result. The Model Context Protocol (MCP) standardizes how AI applications discover and invoke external tools. Neither mechanism grants the model permission to act on its own.

A conversational model can explain a refund policy. An agent with tools may look up an order, calculate eligibility, prepare a refund, and submit it. That difference creates business value: and a new security boundary. The critical engineering decision is not simply which tools should be exposed? It is which actions may execute, for whom, under what constraints, and with what evidence?

How AI agent tool integration works

A production tool call is a controlled request-and-execution cycle:

User task
   ↓
Agent selects a capability
   ↓
Model proposes tool name + arguments
   ↓
Application validates arguments and identity
   ↓
Policy / approval gate
   ↓
Tool dispatcher invokes backend service
   ↓
Structured result + error status
   ↓
Agent continues or escalates
   ↓
Trace, audit, and evaluation

The model proposes an action; trusted application code executes it. The trust boundary is between those two steps. A well-designed integration can survive an invalid model argument, a malicious retrieved document, a compromised upstream service, or a transient API failure without granting unintended authority.

Tool selection is not authorization

A model may select issue_refund because it appears relevant. That does not establish that the requesting user owns the order, the amount is correct, or an approval exists. Treat the model's output as untrusted input to a normal, independently authorized backend operation. This principle aligns with DataKnobs' broader AI agent security architecture.

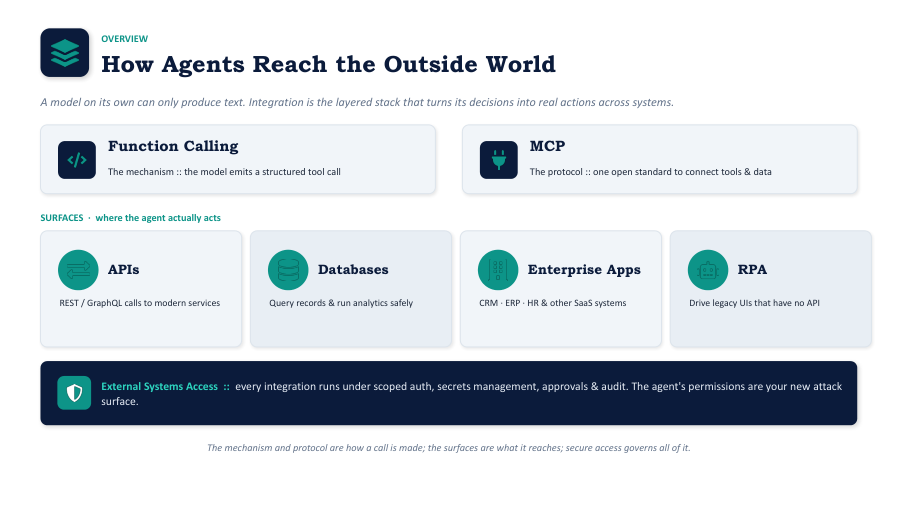

Function calling versus MCP: different layers

Function calling and MCP are complementary, not mutually exclusive.

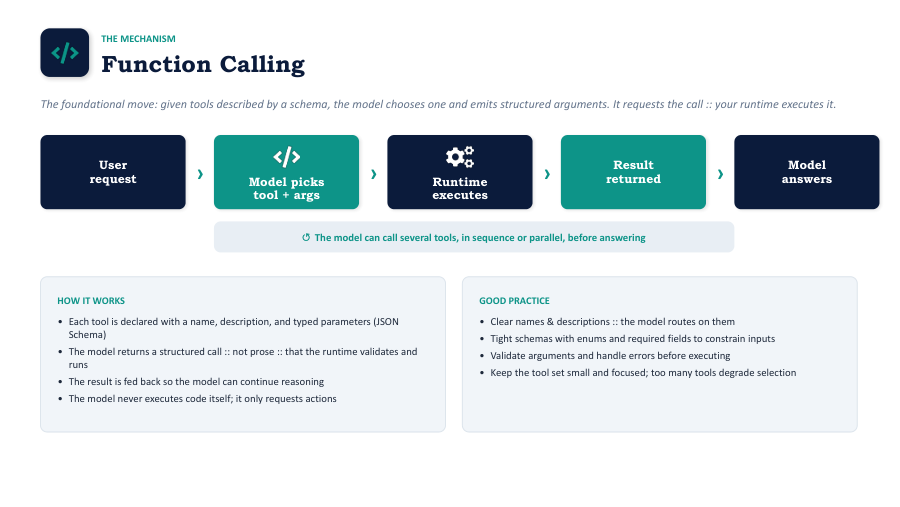

Function calling is the model-to-application interface. The model returns a structured request to call a named function with arguments; the application handles execution. Provider-specific APIs may vary in format and schema restrictions. See the OpenAI function-calling guide for one concrete implementation.

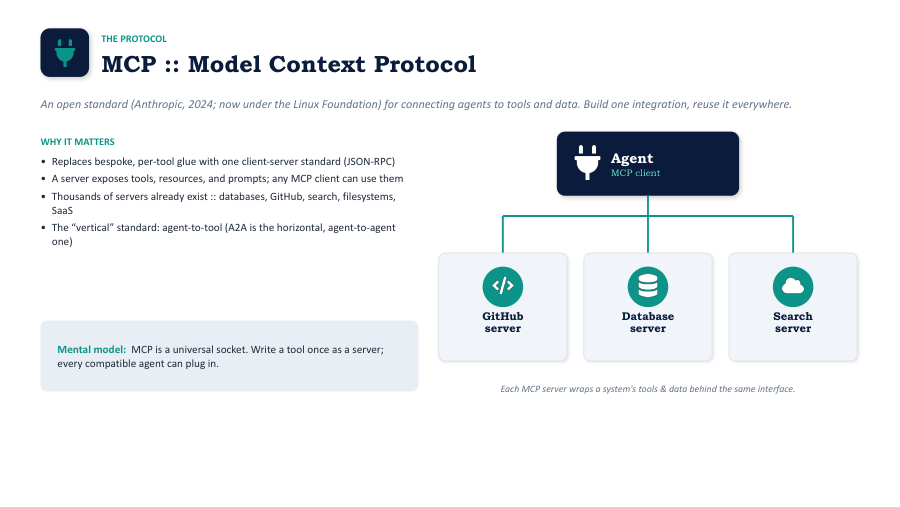

MCP is an application-to-capability interoperability protocol. An MCP host uses a client connection to discover resources, prompts, and tools exposed by an MCP server. The current official specification is version 2026-07-28, which describes hosts, clients, servers, JSON-RPC messages, and tool discovery. Refer to the MCP specification.

There is no universal threshold such as “use MCP after ten tools.” Choose based on reuse, operational ownership, transport support, trust boundaries, and maintenance cost: not an arbitrary tool count.

What MCP does not guarantee

MCP does not automatically provide least privilege, safe execution, approval workflows, tenant isolation, or prompt-injection protection. It also does not mean that every server will work identically with every agent host: compatibility depends on implemented features, supported protocol versions, and policies.

The protocol helps standardize an integration boundary. Your architecture must secure that boundary.

Design tool contracts beyond a name and description

A minimal tool definition has a name, description, and input schema. Production contracts also need output semantics, risk classification, authentication context, retry rules, and measurable failure behavior. The 2026-07-28 MCP tools specification includes optional output schemas and annotations; it also says untrusted server annotations must not be treated as authoritative security assertions.

Consider a customer-service tool. Make its purpose narrow: get_order_status rather than execute_sql, and prepare_refund rather than manage_customer_account.

{
  "name": "get_order_status",
  "description": "Read the status of one order visible to the authenticated customer-service user. Never modifies data.",
  "inputSchema": {
    "type": "object",
    "properties": {
      "order_id": { "type": "string", "minLength": 1 }
    },
    "required": ["order_id"],
    "additionalProperties": false
  },
  "outputSchema": {
    "type": "object",
    "properties": {
      "order_id": { "type": "string" },
      "status": { "type": "string" },
      "checked_at": { "type": "string", "format": "date-time" }
    },
    "required": ["order_id", "status", "checked_at"]
  }
}

This is an illustrative MCP-style tool declaration; the exact SDK wrapper differs by language and version.

Write descriptions for good selection and safe use

Tool descriptions should explain what the tool does, when to use it, important limits, and the meaning of arguments. Avoid marketing language and ambiguous names. When two tools overlap, give clear distinctions to reduce mis-selection.

Do not place secrets in tool descriptions or prompts. Tool definitions may be exposed to models, logs, administrators, and connected clients.

Output contracts matter as much as input contracts

Standardize success, recoverable errors, terminal errors, provenance, and freshness. For example:

{
  "ok": false,
  "error": {
    "code": "ORDER_NOT_VISIBLE",
    "retryable": false,
    "message": "The caller cannot access this order."
  },
  "request_id": "req-8f32"
}

Structured error responses let the agent recover appropriately without guessing. Never expose internal database errors, credentials, or unnecessary personal data in the model-visible response.

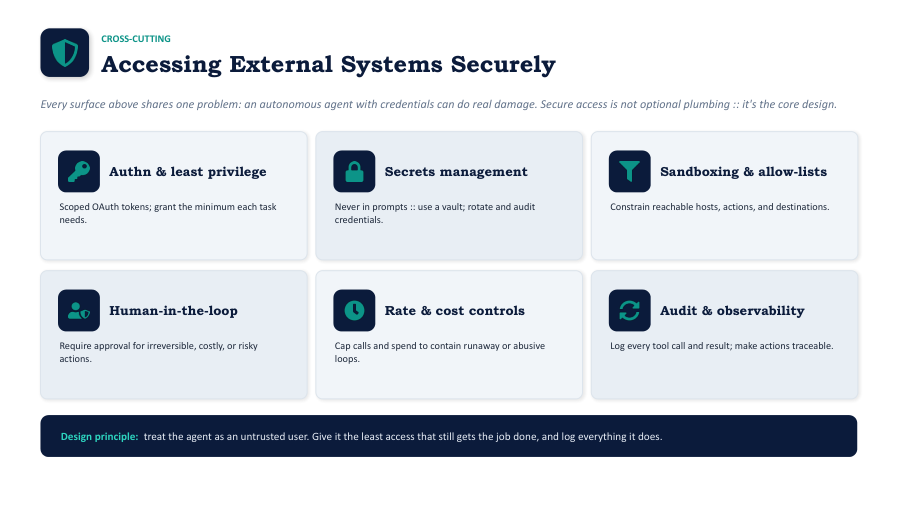

Build a secure execution boundary

Use a server-side dispatcher or tool gateway with explicit policy enforcement:

Agent / MCP client
        ↓
Approved tool registry
        ↓
Authentication + caller context
        ↓
Input validation
        ↓
Resource-level authorization
        ↓
Risk check / approval when required
        ↓
Bounded tool execution
        ↓
Output validation + redaction
        ↓
Telemetry + audit event

Separate identity from credentials

The gateway should know the authenticated user, agent identity, application, tenant, requested resource, and operation. It may use a delegated access token or a constrained workload identity to call an upstream system. Never infer identity from an argument such as user_id generated by the model.

For remote HTTP-based MCP servers, authorization follows protocol-specific OAuth resource and authorization-server conventions. Local process transports have different security arrangements. See the MCP authorization specification and DataKnobs' AI agent identity and authorization guide. Do not describe “OAuth enabled” as a complete security design: tokens still need audience, scope, expiry, and per-resource checks.

Enforce least privilege for every call

Create an allowlist by agent and workflow. Enforce row- or resource-level access independently. Restrict outbound hosts, database statements, upload destinations, financial thresholds, and execution time. Put read-only and write tools in separate permission classes. For consequential actions, attach an approval token bound to the exact transaction rather than a vague general approval.

This is the role of a human-in-the-loop approval workflow: the reviewer approves a specific proposed action with a defined scope and expiry.

Treat tool outputs as untrusted data

A search result, PDF, email, or MCP tool response may contain text trying to redirect an agent. A returned instruction is not a system instruction. Preserve the source's trust level; sanitize display or parser hazards; limit which retrieved fields can influence actions; and re-check authorization before executing follow-up tools.

A model-level warning is not a substitute for an execution policy. For defense-in-depth controls, see AI agent governance.

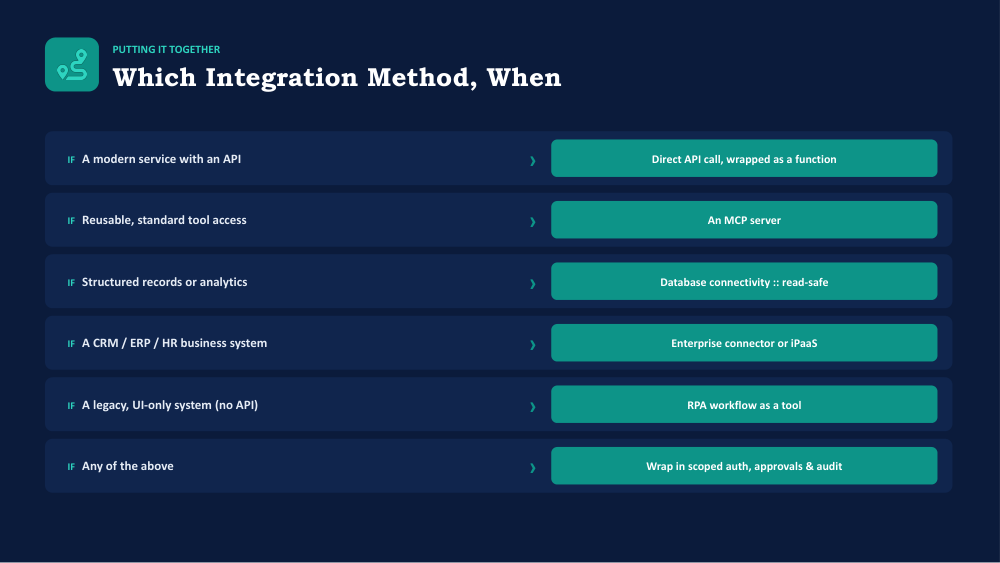

Choose direct tools, MCP servers, or a gateway

Choose direct tools when the capability is stable, maintained within one application, and needs low operational overhead. An internal order-status API is a good example.

Choose MCP servers when a reusable integration serves several agent applications, must advertise capabilities, or benefits from a standard client-server boundary. For example, a governed knowledge catalog could expose search and read operations to several assistants.

Choose an execution gateway when you need consistent identity propagation, network controls, approvals, logging, rate limits, tool certification, and policy enforcement across many agents and transports. A gateway may front direct APIs, MCP servers, or both.

Avoid introducing another central service solely because the integration is called an AI tool. A gateway should solve a concrete operational or governance problem.

Handle retries, idempotency, and long-running actions

Tool calls fail. Network timeouts, provider rate limits, stale resources, and incomplete responses are normal operational conditions.

Separate read-only operations from side-effecting operations. A failed read may be safe to retry with backoff; retrying a payment or refund may duplicate a transaction unless the backend implements idempotency.

request: issue_refund(order=123, amount=50)
  ↓
policy approval
  ↓
request id + idempotency key
  ↓
transaction API
  ↓
confirmed final state

Store idempotency keys and business operation state outside the model context. If an external call times out, query the authoritative system before assuming failure and resubmitting. Design compensating actions only when a true reversal is possible.

For workflows that outlive a single request, persist checkpoints, ownership, progress, and cancellation state. Protocol features for asynchronous work differ by MCP version and extensions; do not assume every client supports long-running tasks. The broader implementation pattern is covered in AI agent reliability engineering.

Scale to many tools without overwhelming the model

An agent does not necessarily need to see every enterprise capability on every turn. Large tool catalogs can increase prompt size and create selection confusion.

Use a layered registry:

1. Identify the workflow or domain.
2. Filter to approved tools for that user and agent.
3. Load only relevant schemas.
4. Execute with independent authorization.
5. Record which tool candidates were exposed and why.

Keep high-use schemas stable where caching matters; use versioned schemas and compatibility tests when interfaces change. The MCP specification supports tool discovery and change notifications, but client-side caching and refresh behavior depend on the implementation.

Tool descriptions are part of agent context. Review them alongside AI agent context engineering.

Example: a governed refund agent

Imagine a customer requests a $50 refund. A safe system should not expose one all-powerful refund_customer tool.

Use a sequence of scoped capabilities:

The agent may interpret the request and recommend the refund, but the backend decides eligibility, permissions, and execution. The final answer should depend on the actual transaction record, not a reassuring tool message.

For an enterprise deployment, connect this workflow to AI agent deployment and release gates before enabling write actions in production.

Evaluate the integration, not just the final answer

A tool integration can be technically correct while causing poor agent behavior. Build regression cases for both when a tool should be used and when it should not. Include the wrong tool, invalid arguments, forbidden resources, stale data, tool timeouts, duplicate calls, and prompt-injected results.

Track at least these dimensions:

Instrument each invocation with agent run ID, tool version, trace ID, caller class, policy decision, latency, and a redacted outcome. See the AI agent observability guide and agent testing and evaluation framework for deeper scoring and release gates.

A practical release criterion is zero known critical authorization bypasses, plus workload-specific targets for success, latency, and cost. Thresholds should be justified by risk and measured baselines, not copied from another team.

A 30-day implementation plan

Week 1 : inventory and classify. List every proposed capability, owner, data source, side effect, tenant scope, and existing backend authorization. Select one low-risk read-only workflow.

Week 2 : contract and execute. Implement schemas, the dispatcher, explicit identity propagation, typed errors, trace IDs, and timeouts. Test resource-level authorization outside the agent.

Week 3 : evaluate and harden. Add golden tasks, forbidden-action tests, prompt-injection cases, retry behavior, and idempotency. Add human approval for material writes.

Week 4 : controlled launch. Deploy with a restricted cohort, monitor real task outcomes, compare against the prior workflow, and retain a rollback or disable path. Expand only after the operational and policy gates pass.

Where KONTROLS fits

Enterprise tool integration crosses from model reasoning into real business systems. KONTROLS is the relevant DataKnobs capability for applying policy checks, oversight, and evidence requirements at that boundary. Pair tool integration with KONTROLS governance and runtime controls so an agent's proposed action remains subject to independently enforced permissions and business policy.

Frequently Asked Questions

Does MCP replace function calling?

No. Function calling describes how a model requests a structured action. MCP standardizes how an AI application discovers and invokes capabilities exposed by an MCP server. They can operate together in one architecture.

Is MCP automatically secure because it supports OAuth?

No. Authentication and OAuth-based authorization are only part of the design. Enterprises still need scope and resource checks, approved tool registries, network restrictions, input validation, approval controls, and auditing. Security expectations also differ between remote HTTP servers and local transports.

What should an AI agent tool schema include?

At minimum, a clear name, behavior description, and argument schema. Production tools should additionally define outputs, error contracts, side effects, security expectations, versioning, retry behavior, and ownership. Use an output schema where supported.

When should an enterprise use an MCP gateway?

Use a gateway when several agents and integrations need centrally operated policy, authentication, routing, observability, version controls, or approvals. A small single-application workflow may be better served by direct function calling.

How do I prevent an AI agent from calling an unauthorized tool?

Expose only the appropriate capabilities, then check user and agent identity, resource access, business rules, and approval state at the actual execution boundary. Never rely on tool descriptions or prompts to enforce permissions.

How should write actions be retried safely?

Use server-side idempotency, durable operation IDs, and authoritative post-call state checks. If a call times out, determine whether the transaction already succeeded before sending a duplicate request. For irreversible actions, require scoped approval and additional verification.

Conclusion

AI agent tool integration is an application architecture problem, not just a model API feature. Start with a small set of narrowly scoped capabilities. Use direct function calling for tightly coupled workflows and MCP when standardized reuse is valuable. Put authorization, approvals, idempotency, observability, and evaluation outside the model's discretion. That combination lets enterprise agents take useful actions without turning natural-language decisions into unchecked production authority.
