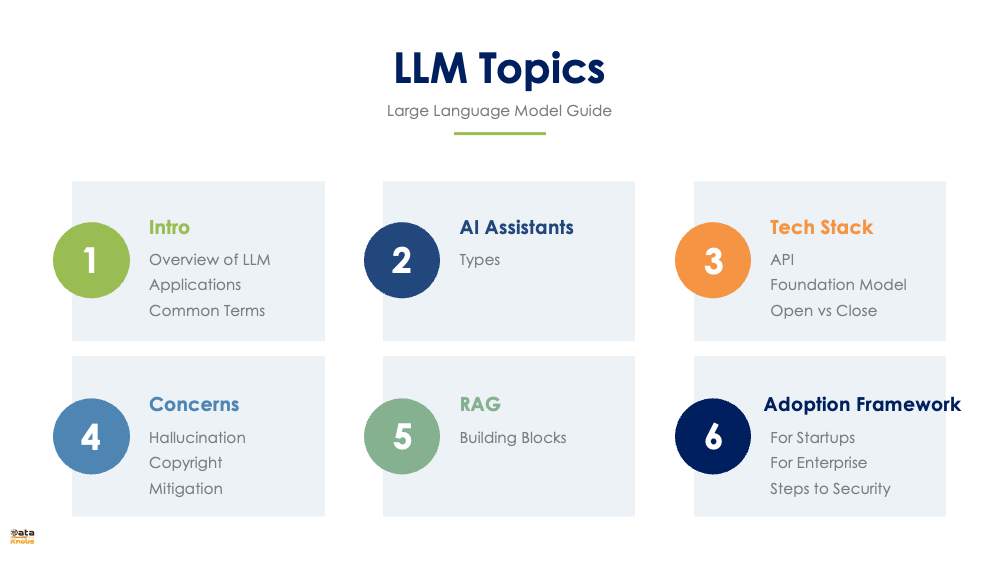

LLM TOPICS

LLM TOPICS
LLM TOPICS

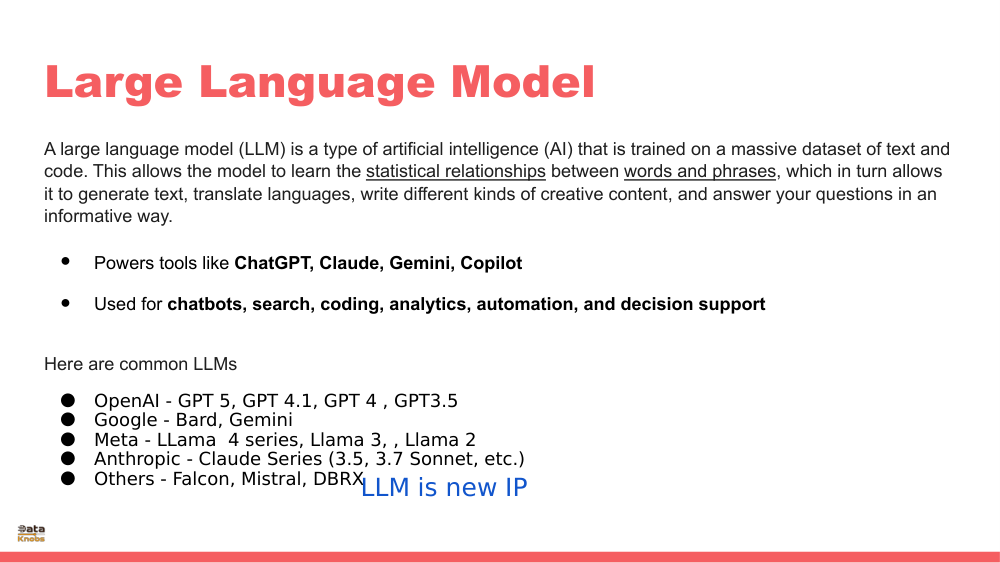

LLM OVERVIEW

LLM OVERVIEW
LLM OVERVIEW

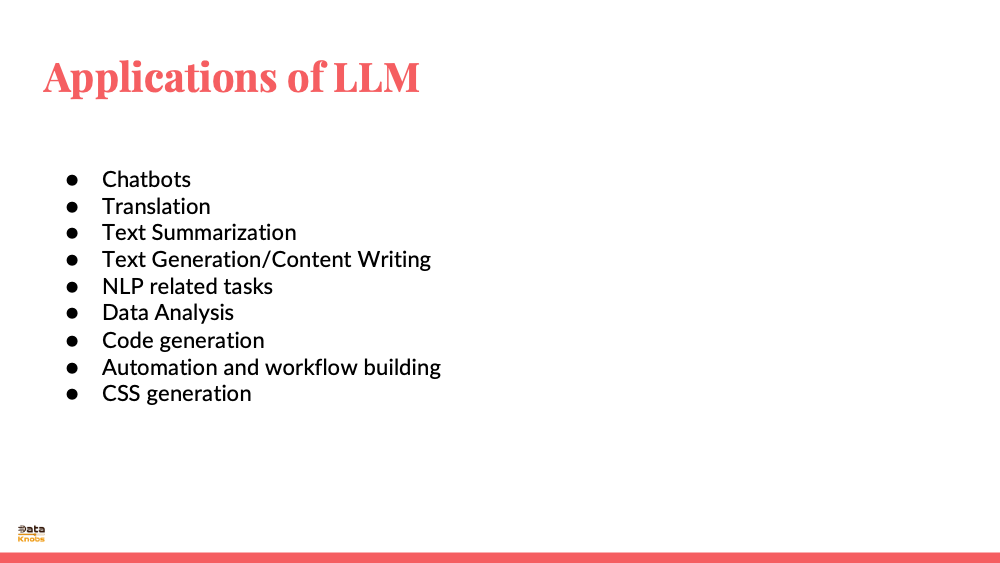

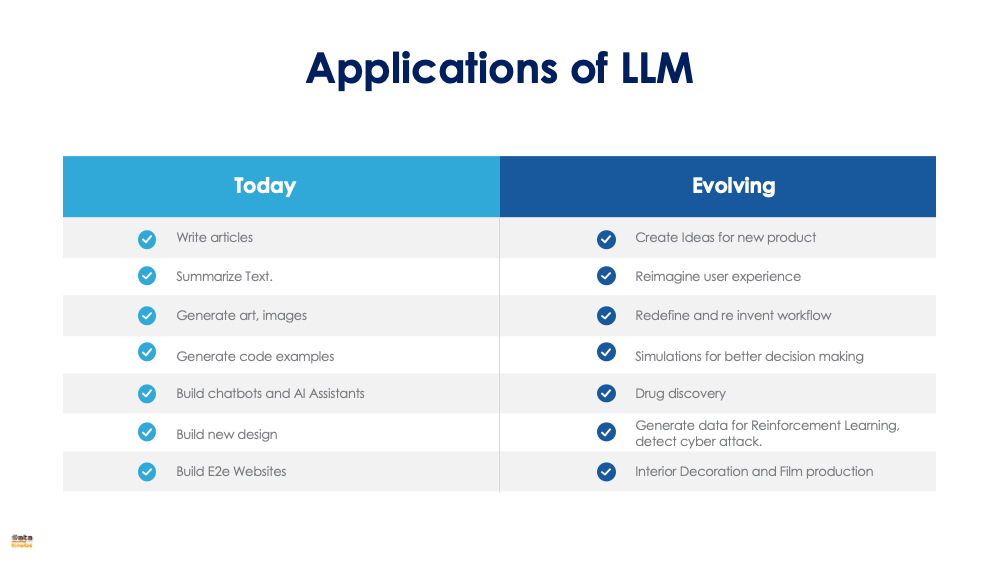

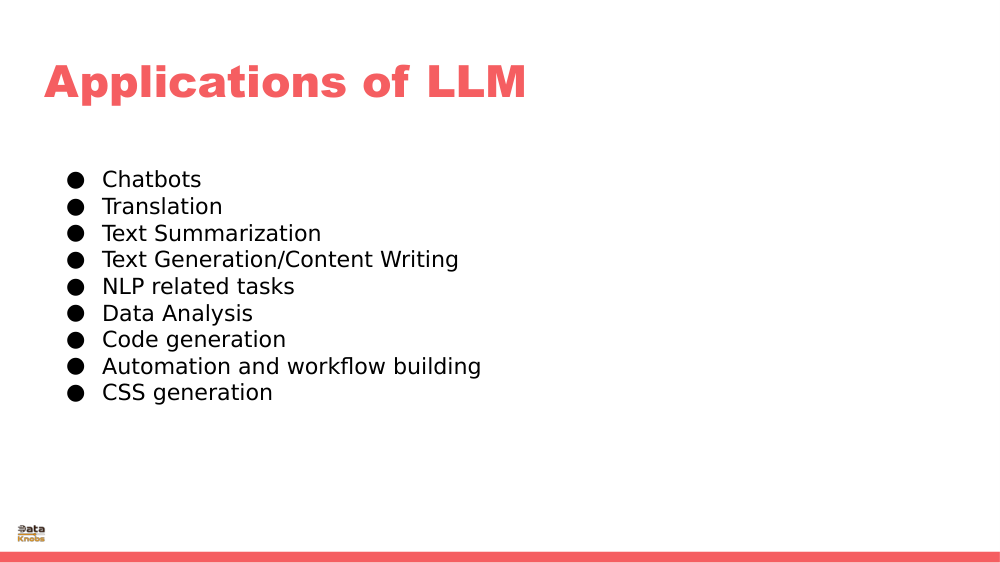

APPLICATIONS OF LLM

APPLICATIONS OF LLM
APPLICATIONS OF LLM

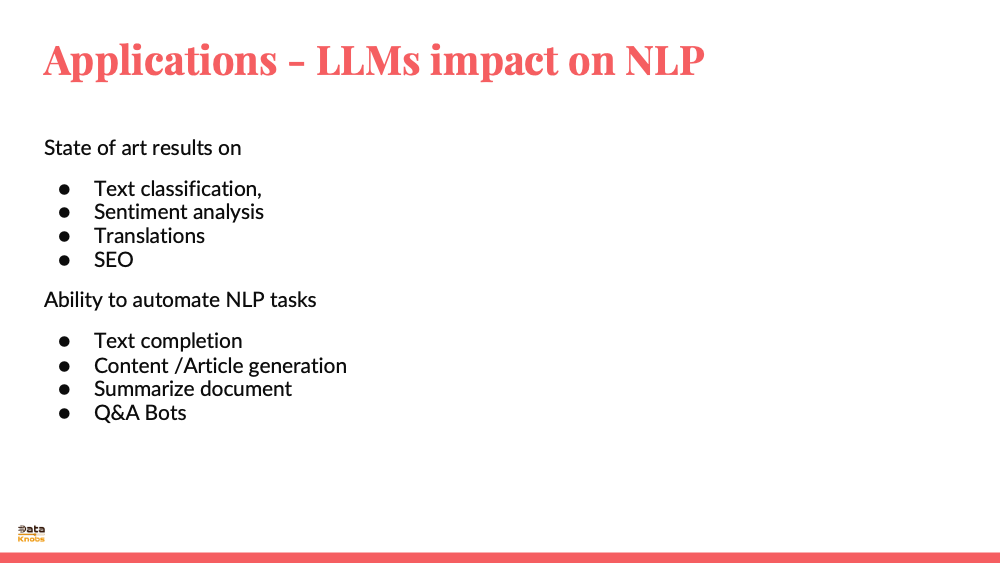

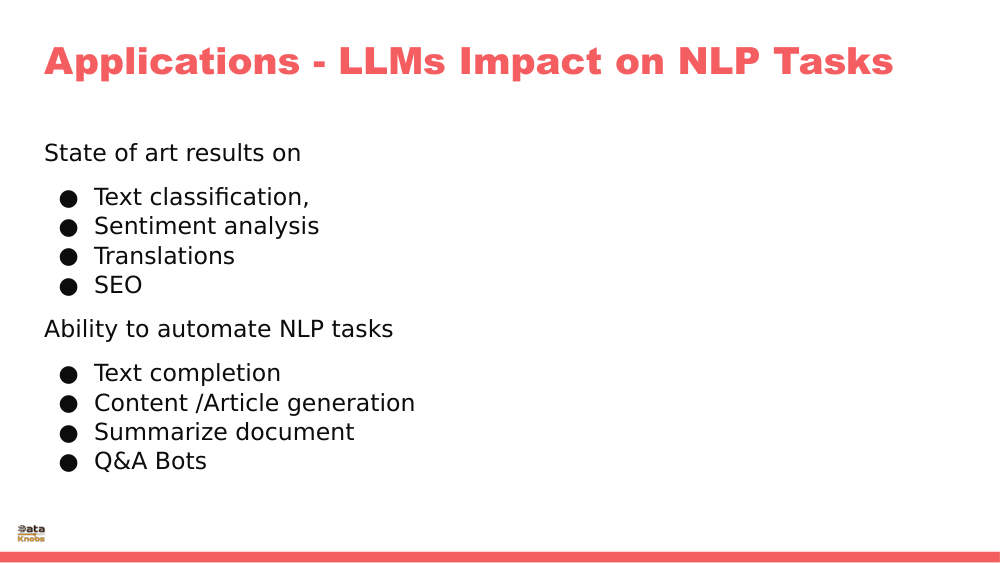

NLP APPLICATIONS

NLP APPLICATIONS
NLP APPLICATIONS

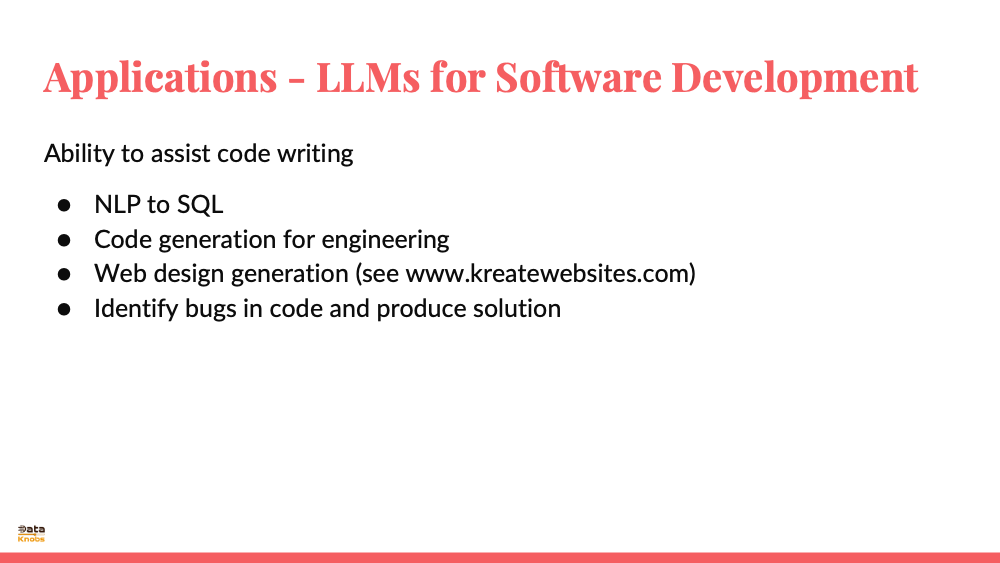

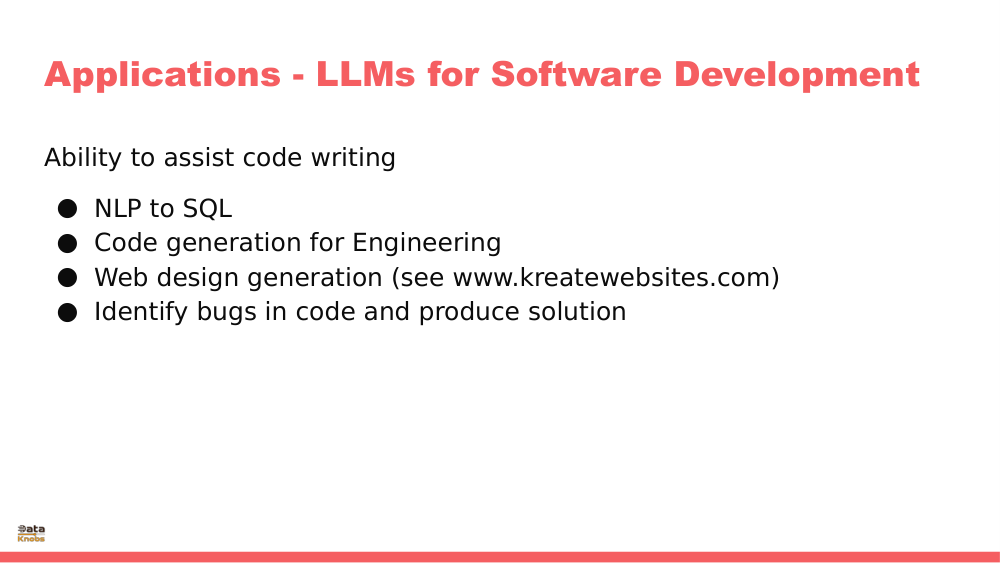

SOFTWARE APPLICATIONS

SOFTWARE APPLICATIONS
SOFTWARE APPLICATIONS

EVOLOVING APPLICATIONS OF LLMS

EVOLOVING APPLICATIONS OF LLMS
EVOLOVING APPLICATIONS OF LLMS

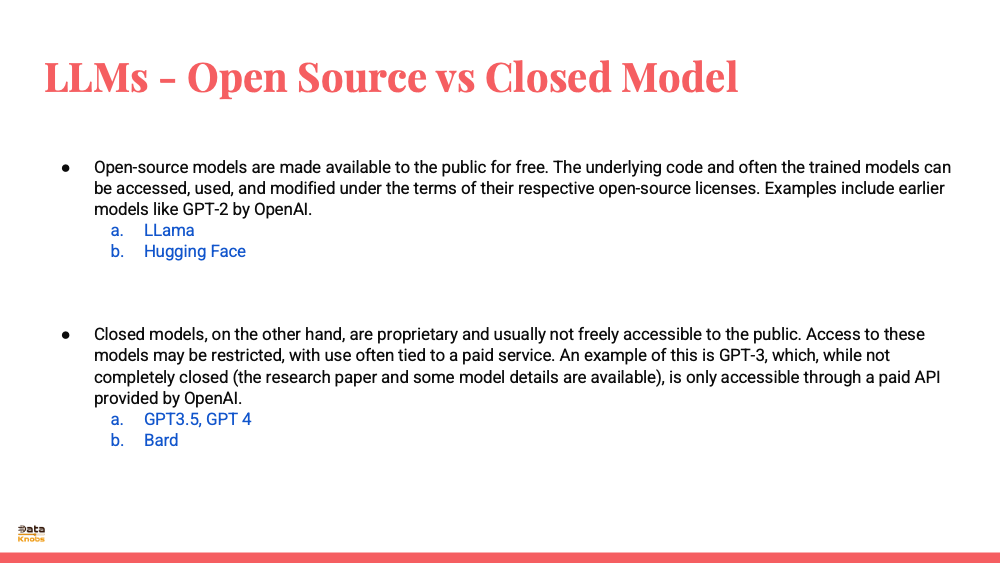

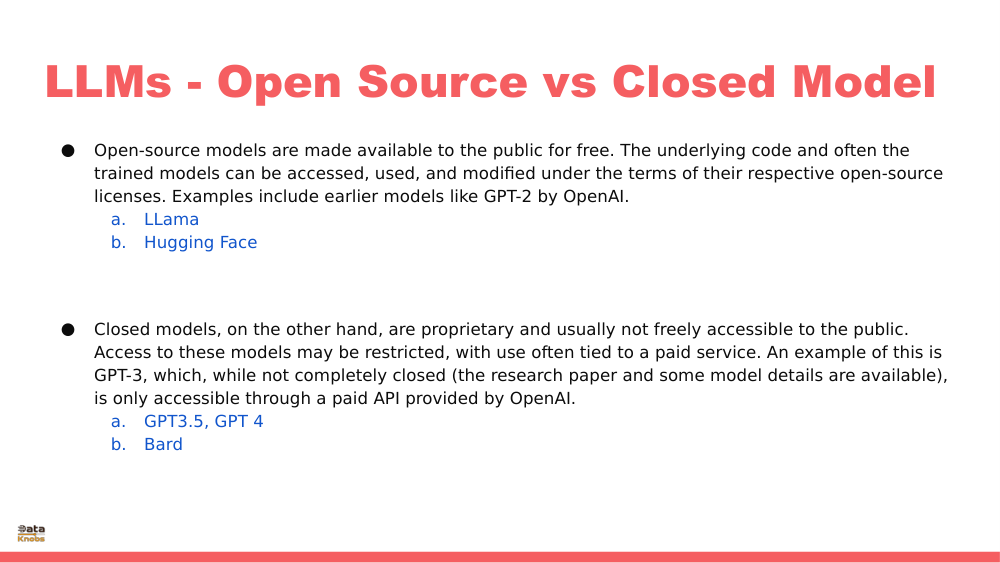

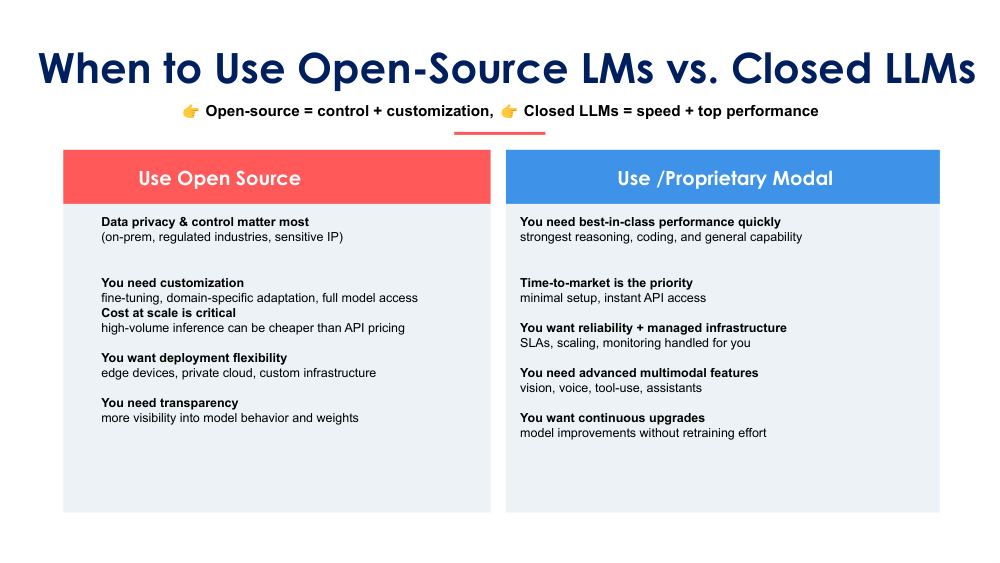

OPEN SOURCE VS CLOSE

OPEN SOURCE VS CLOSE
OPEN SOURCE VS CLOSE

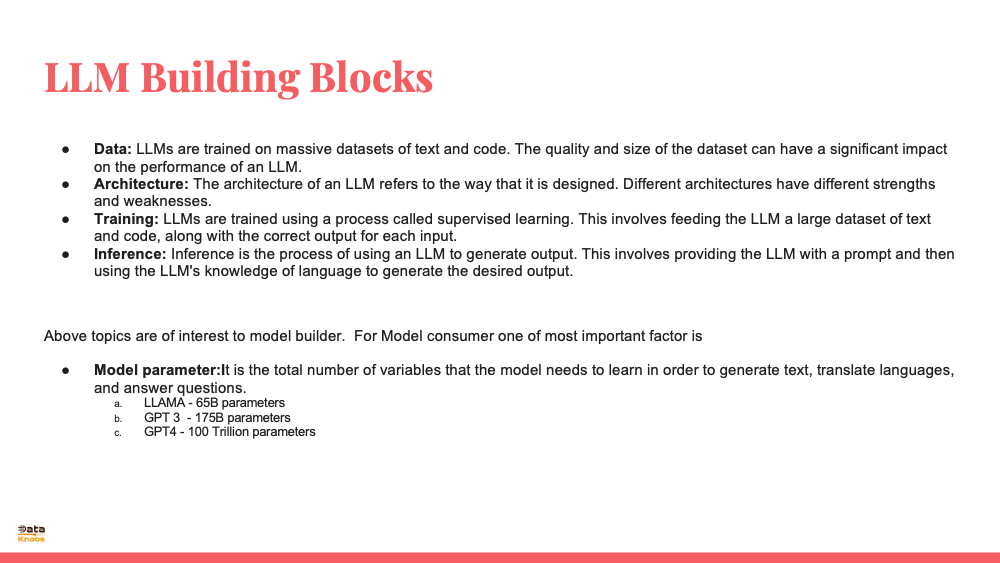

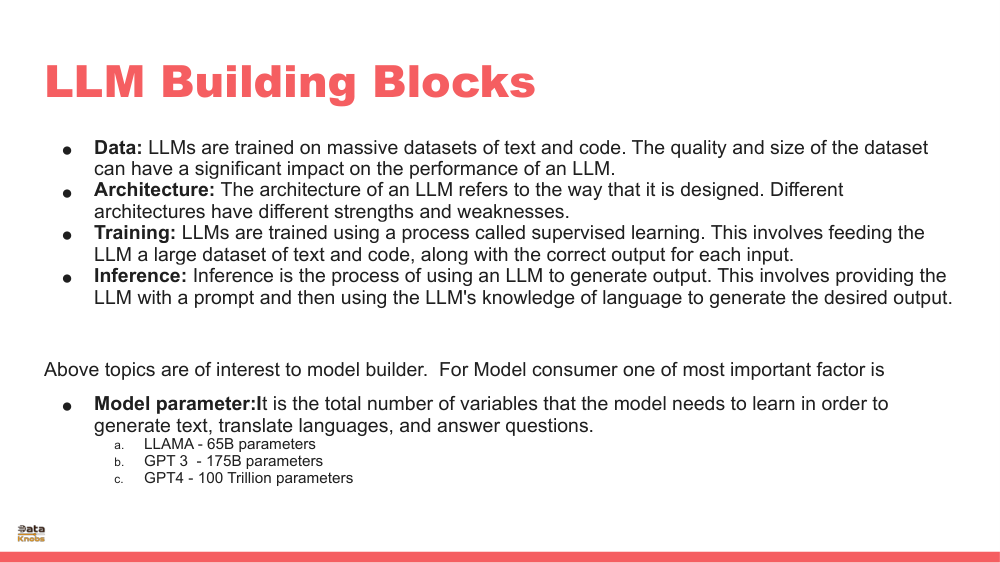

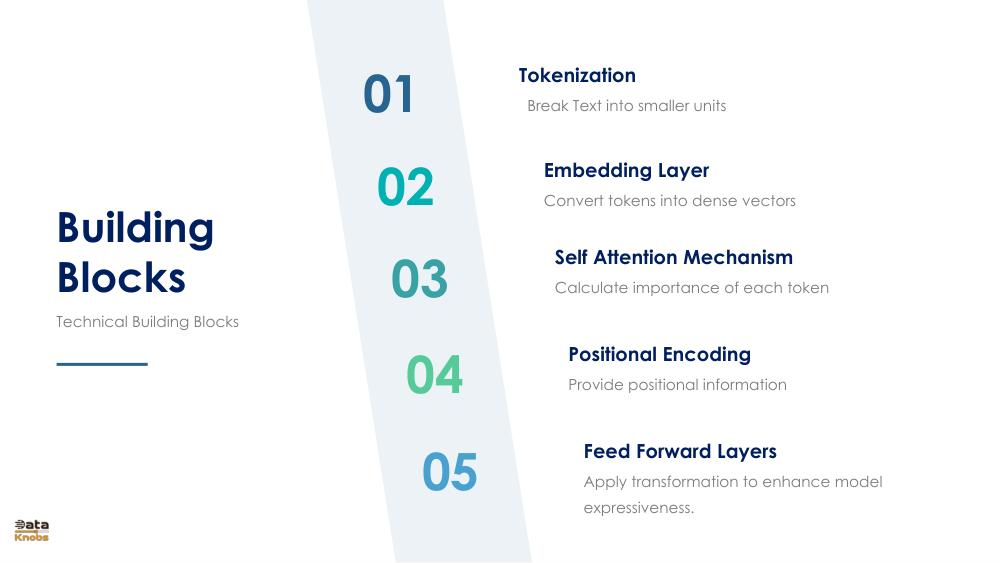

BUILDING BLOCKS OF LLMS

BUILDING BLOCKS OF LLMS
BUILDING BLOCKS OF LLMS

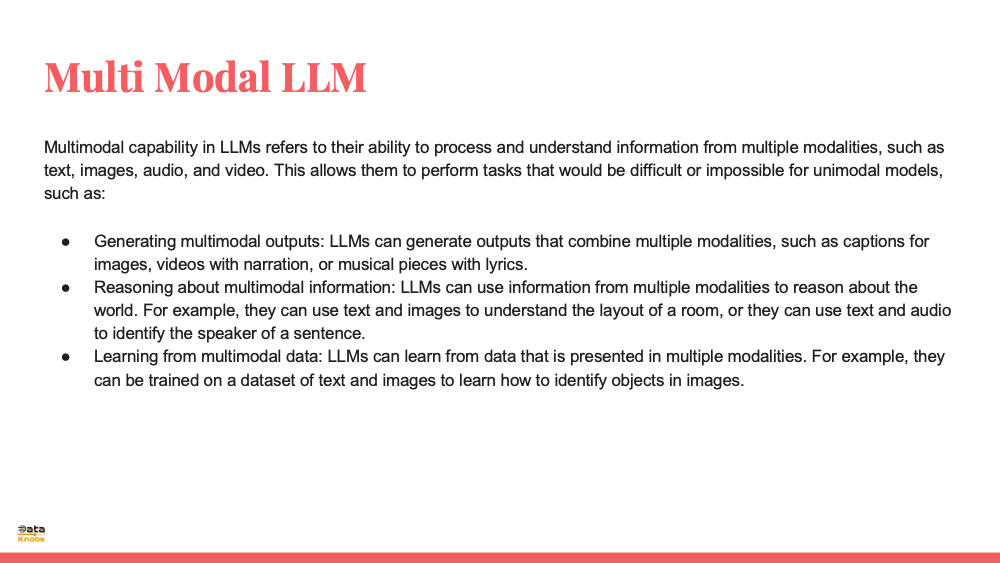

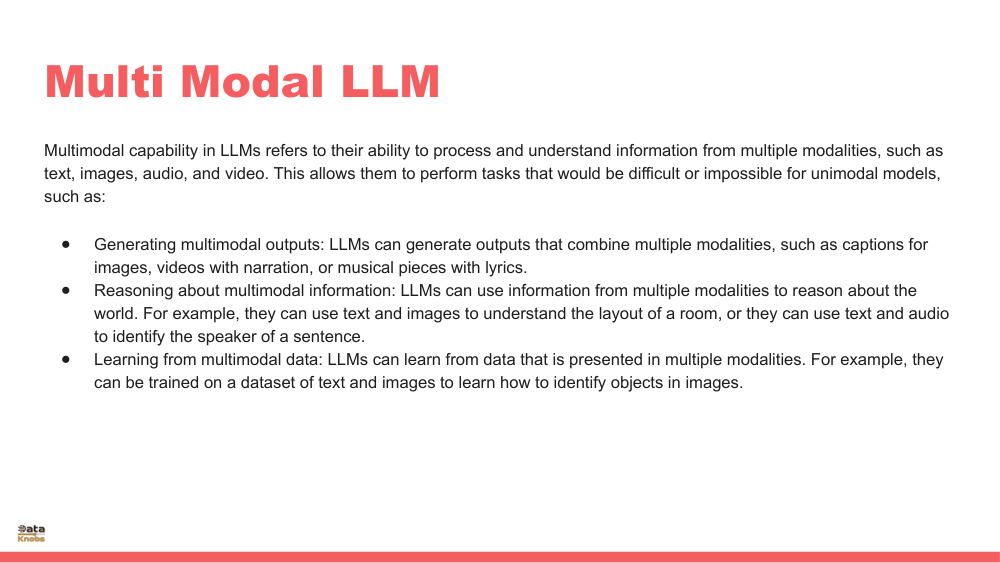

MULTI MODEL LLMS

MULTI MODEL LLMS
MULTI MODEL LLMS

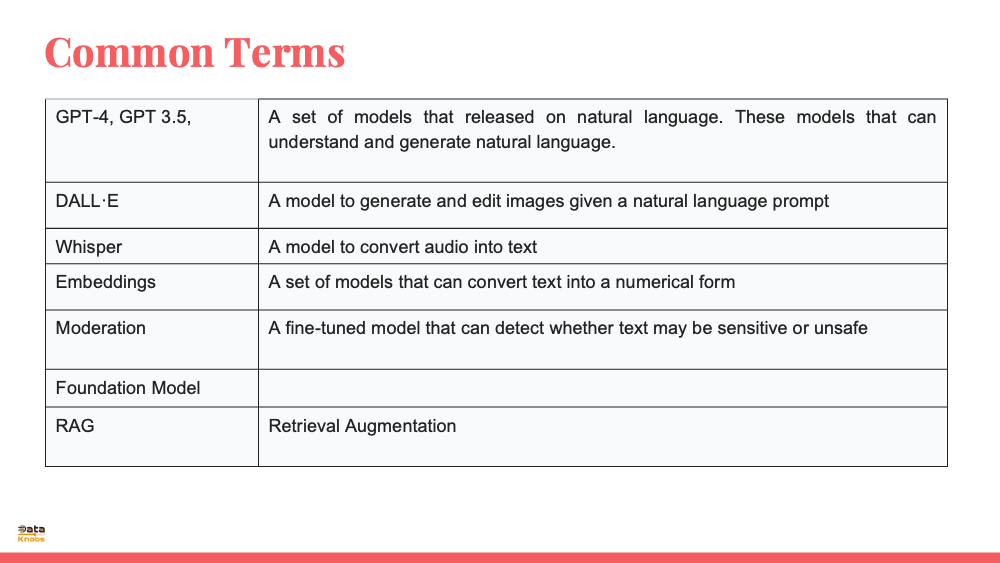

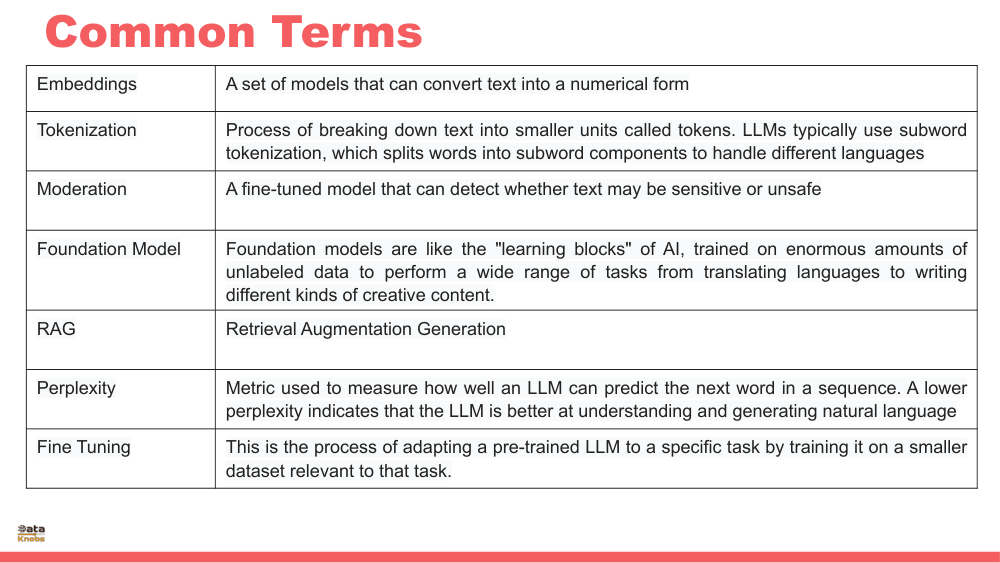

COMMON TERMINOLOGY LLMS

COMMON TERMINOLOGY LLMS
COMMON TERMINOLOGY LLMS

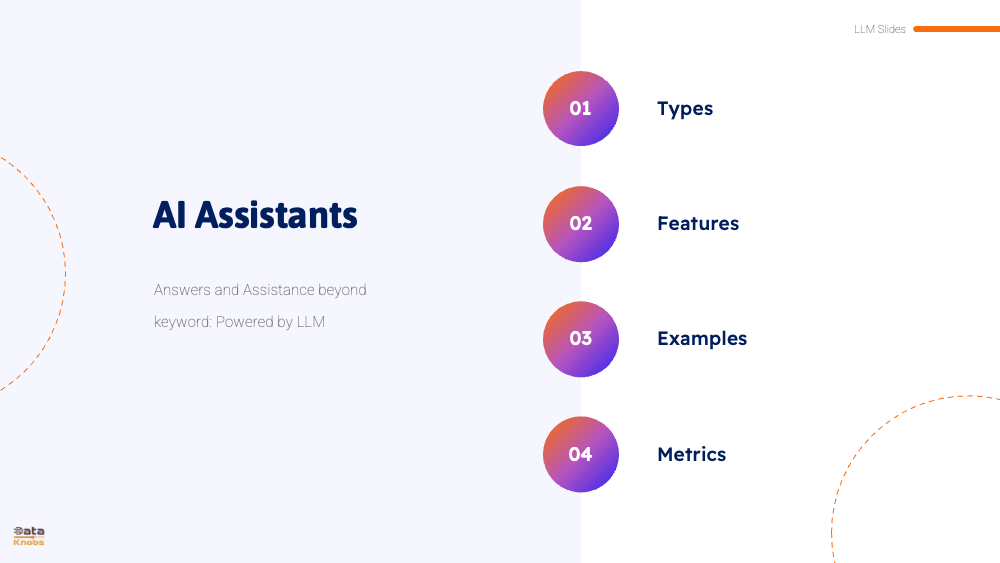

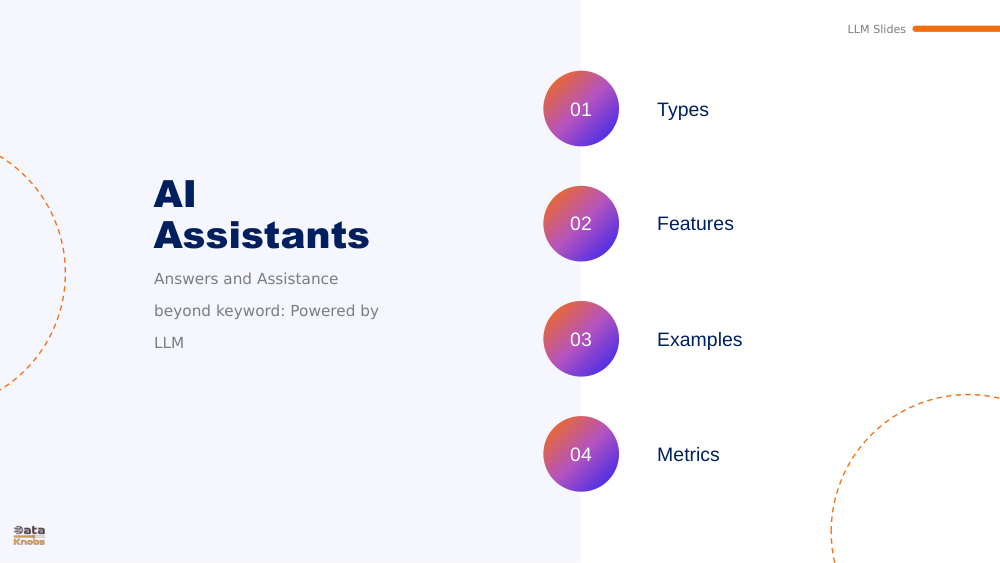

AI ASSISTANTS TYPES

AI ASSISTANTS TYPES
AI ASSISTANTS TYPES

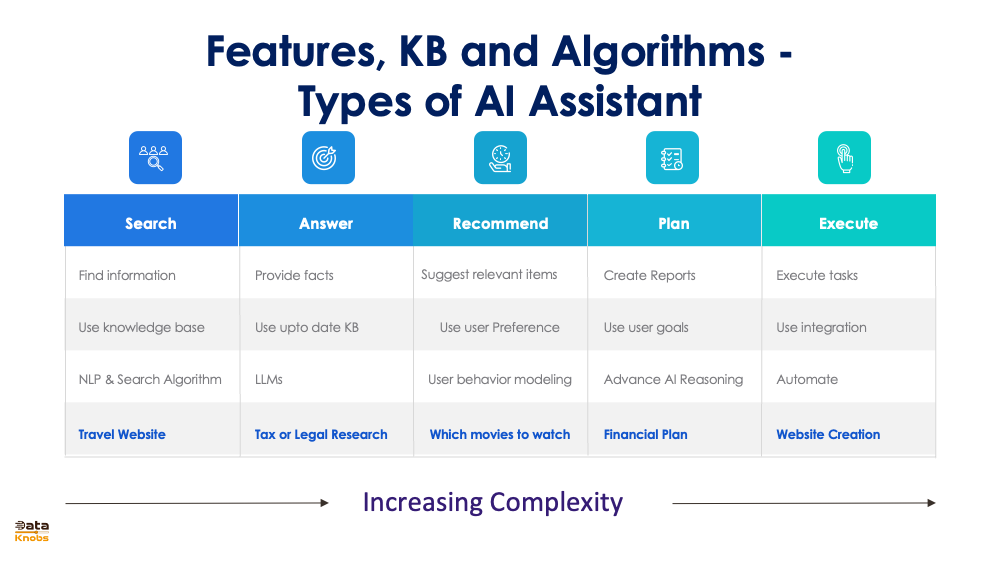

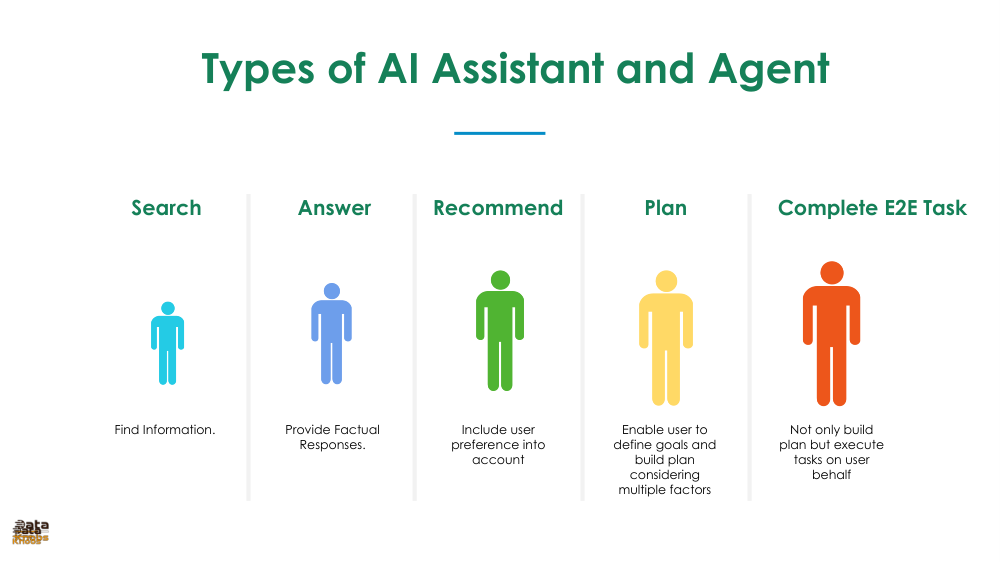

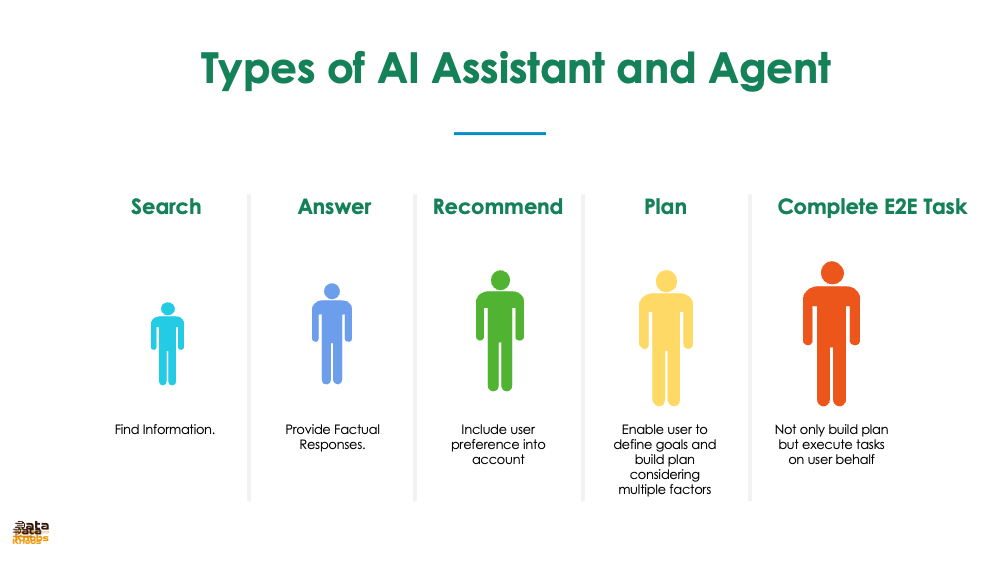

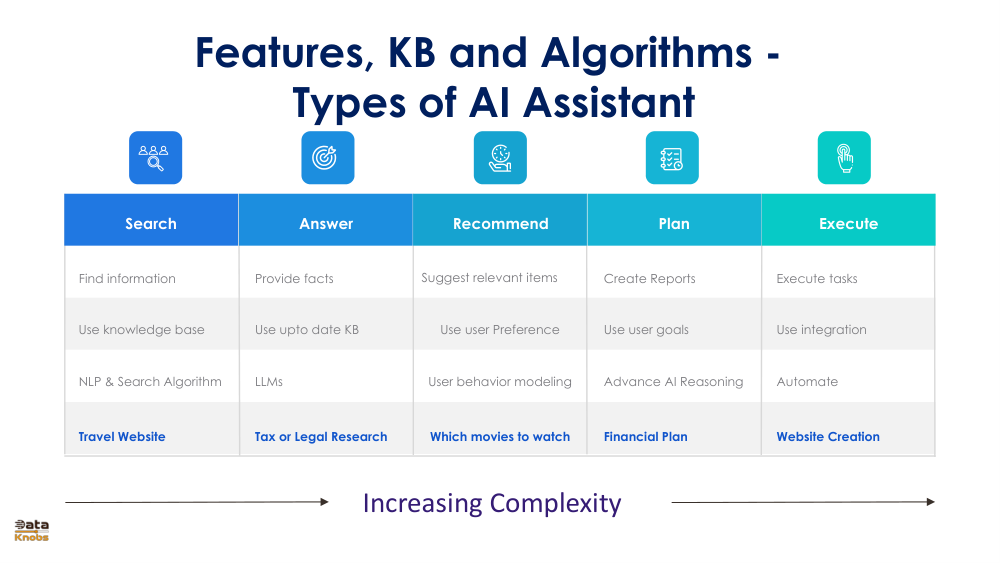

TYPES OF AI ASSISTANTS

TYPES OF AI ASSISTANTS
TYPES OF AI ASSISTANTS

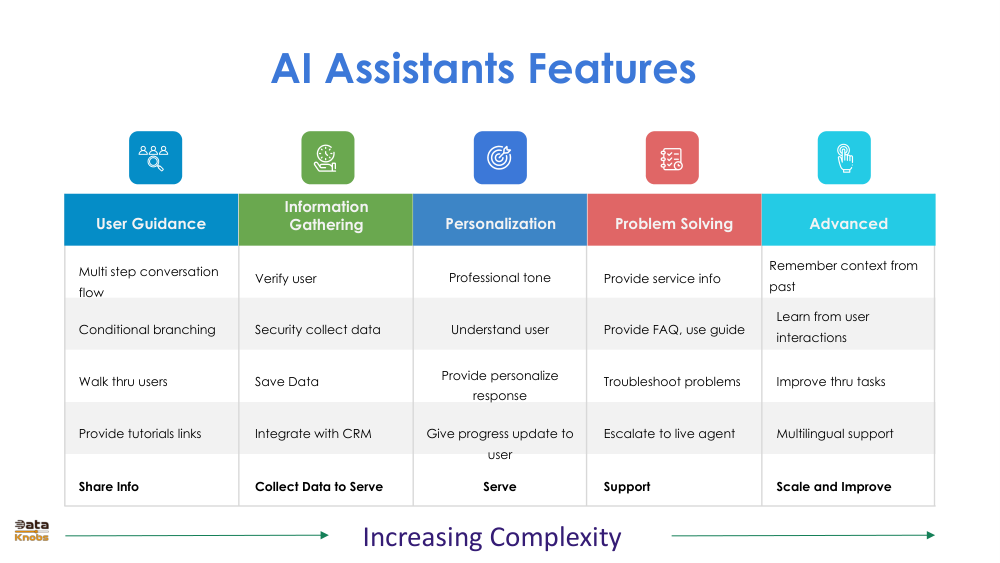

FEATURES OF AI ASSISTANTS

FEATURES OF AI ASSISTANTS
FEATURES OF AI ASSISTANTS

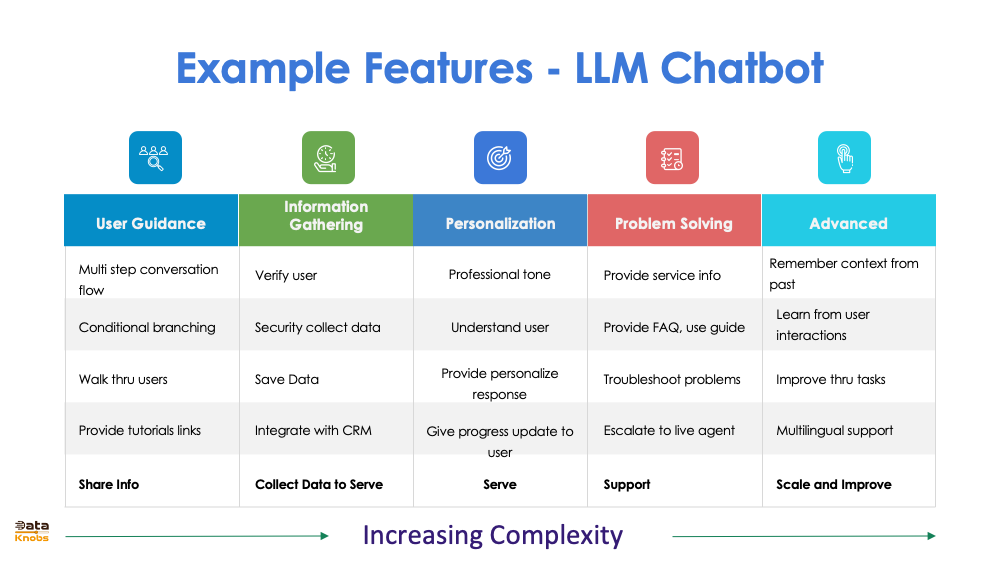

EXAMPLE FEATURES OF AI ASSISTA

EXAMPLE FEATURES OF AI ASSISTA
EXAMPLE FEATURES OF AI ASSISTA

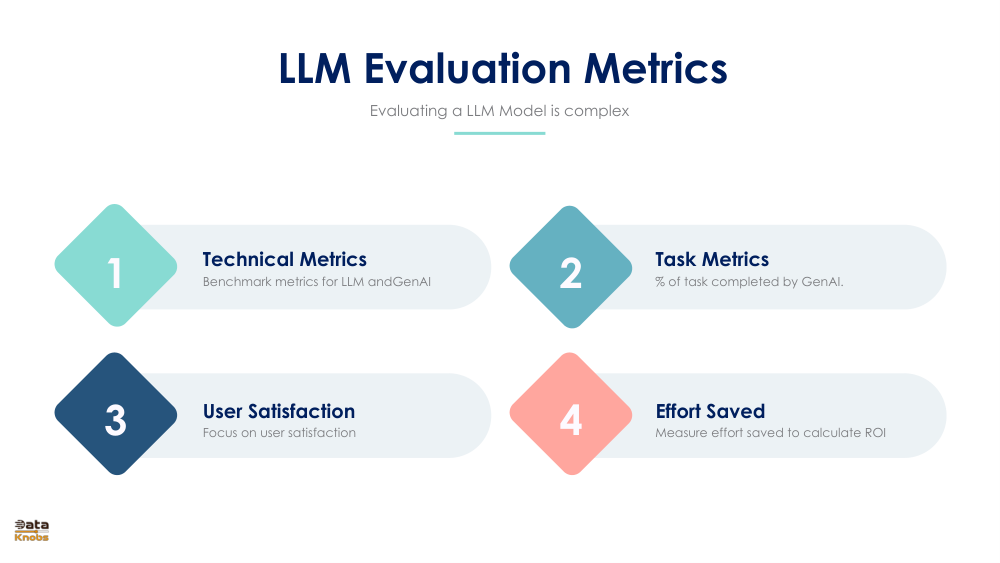

AI ASSISTANT EVALUATION METRIC

AI ASSISTANT EVALUATION METRIC
AI ASSISTANT EVALUATION METRIC

ASSISTANT BOT METRICS

ASSISTANT BOT METRICS
ASSISTANT BOT METRICS

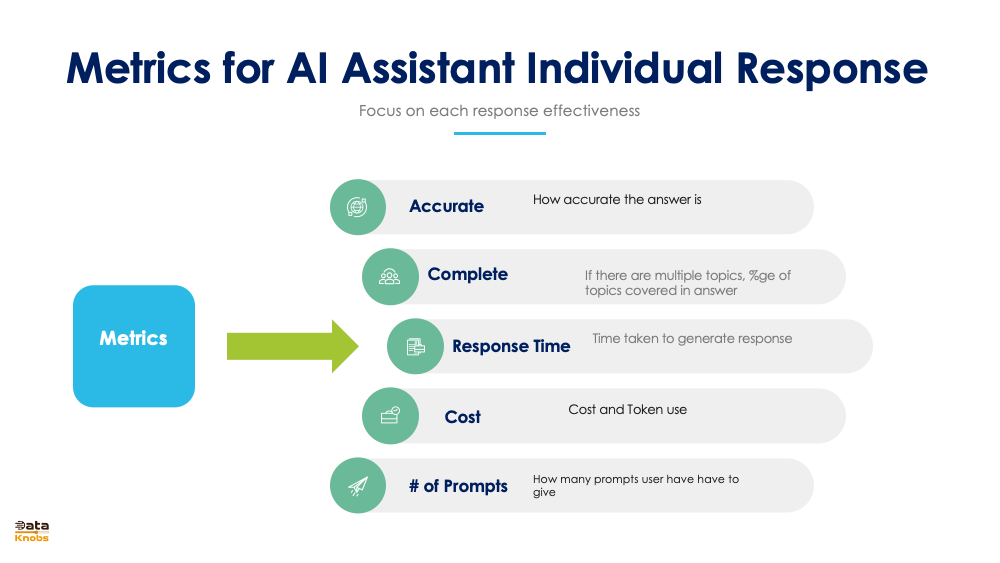

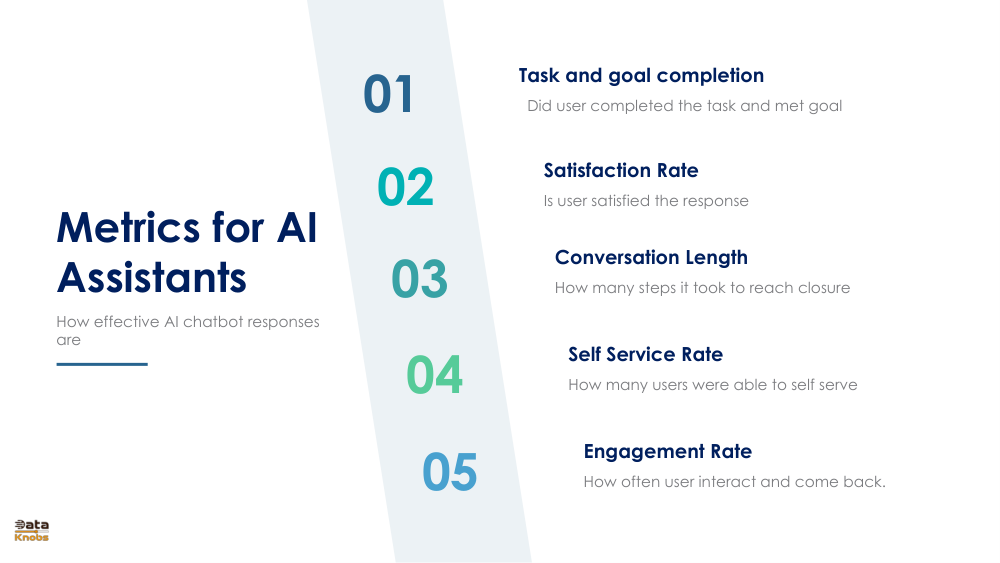

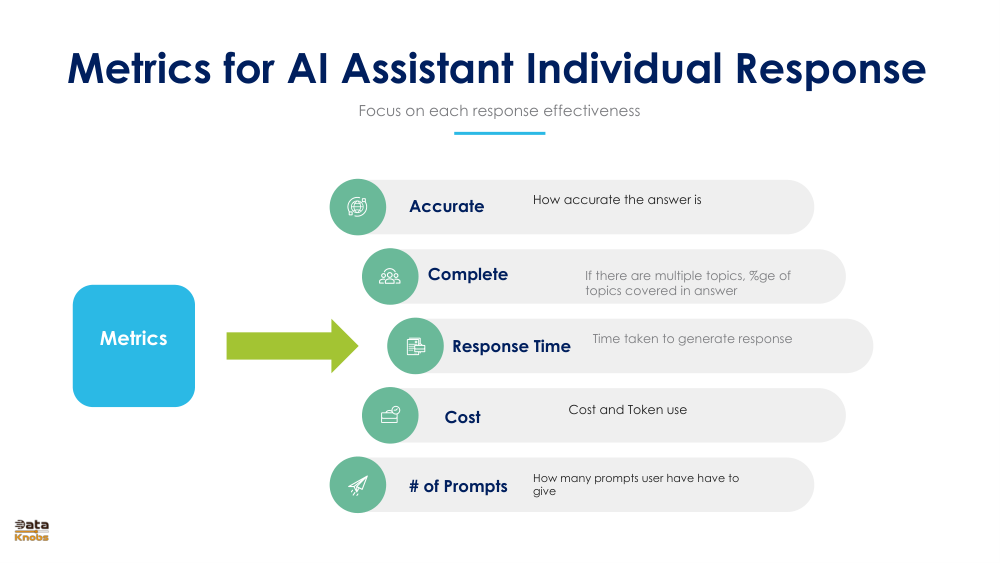

METRICS TO EVALUATE AI ASSISTA

METRICS TO EVALUATE AI ASSISTA
METRICS TO EVALUATE AI ASSISTA

TECHNICAL METRICS AI ASSISTANT

TECHNICAL METRICS AI ASSISTANT
TECHNICAL METRICS AI ASSISTANT

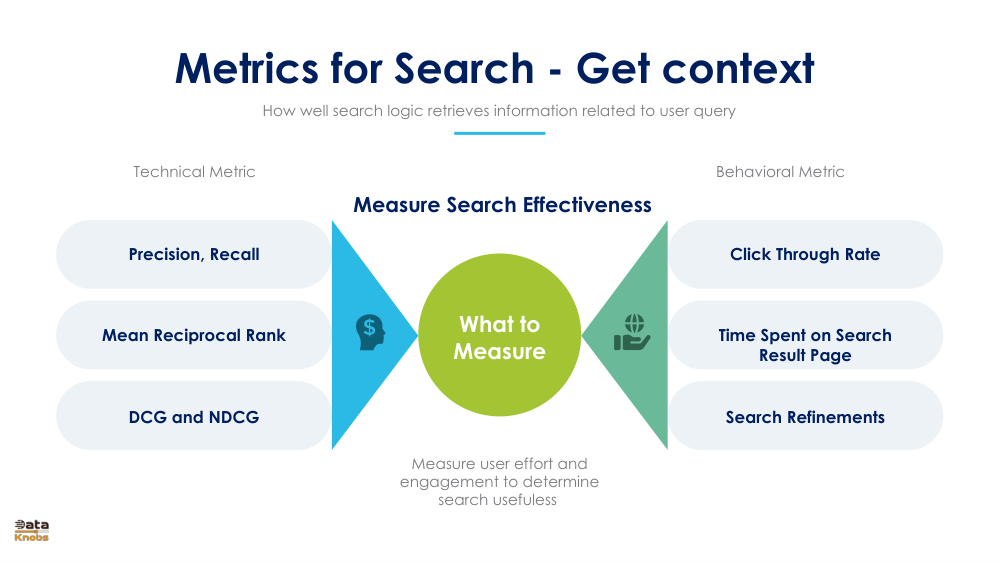

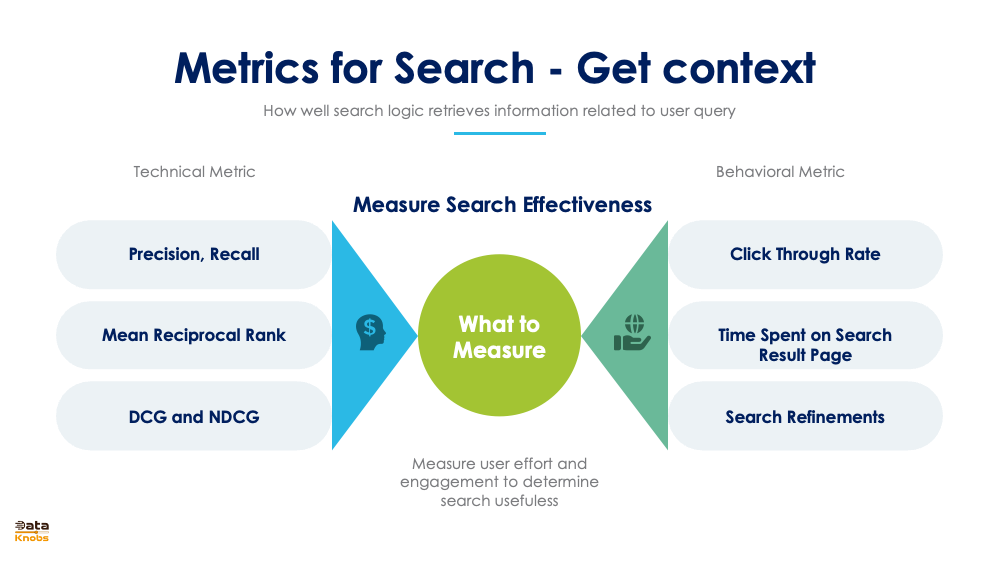

METRICS FOR SEARCH BOT

METRICS FOR SEARCH BOT
METRICS FOR SEARCH BOT

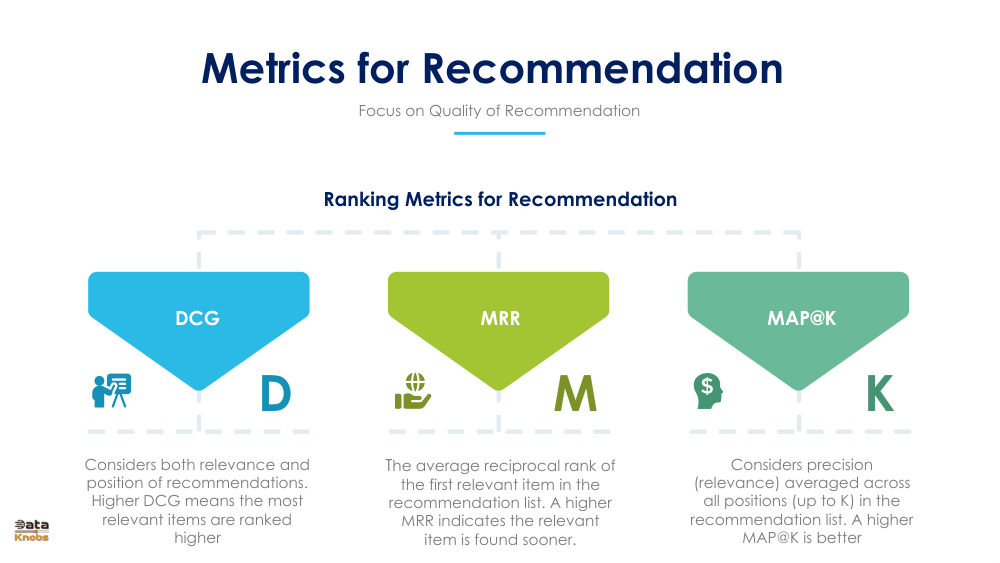

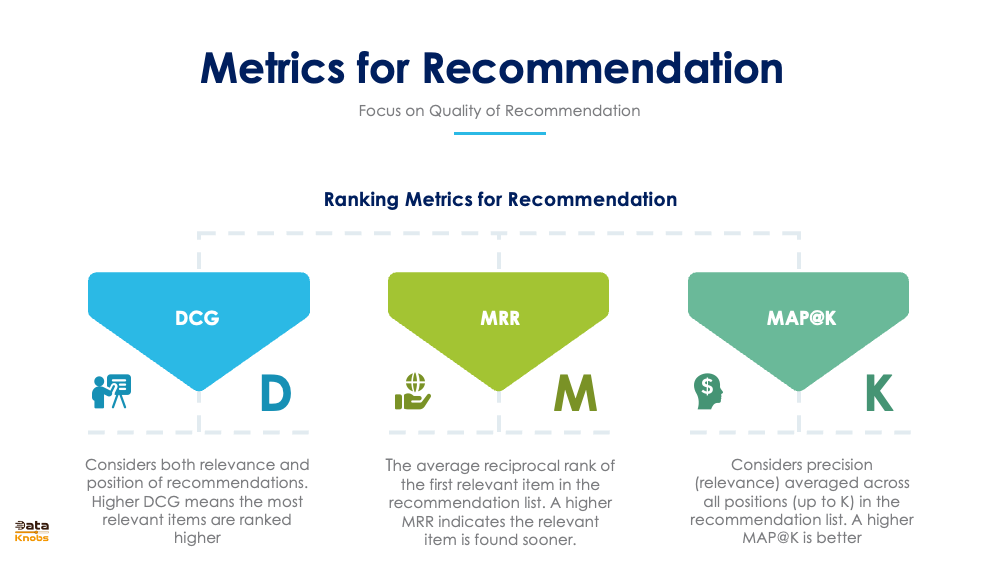

METRICS FOR RECOMMENDATION BOT

METRICS FOR RECOMMENDATION BOT
METRICS FOR RECOMMENDATION BOT

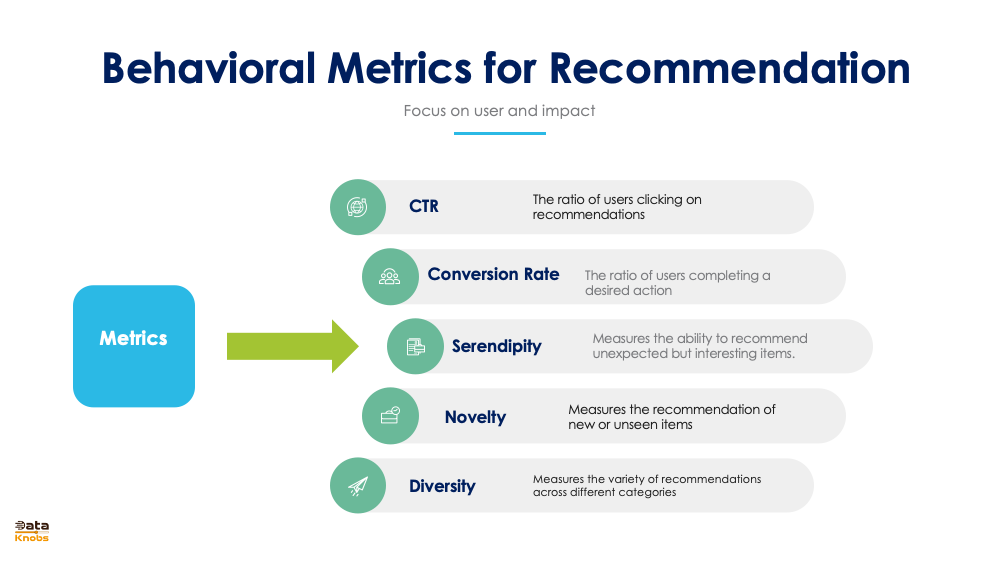

BEHAVIORAL METRICS FOR RECOMME

BEHAVIORAL METRICS FOR RECOMME
BEHAVIORAL METRICS FOR RECOMME

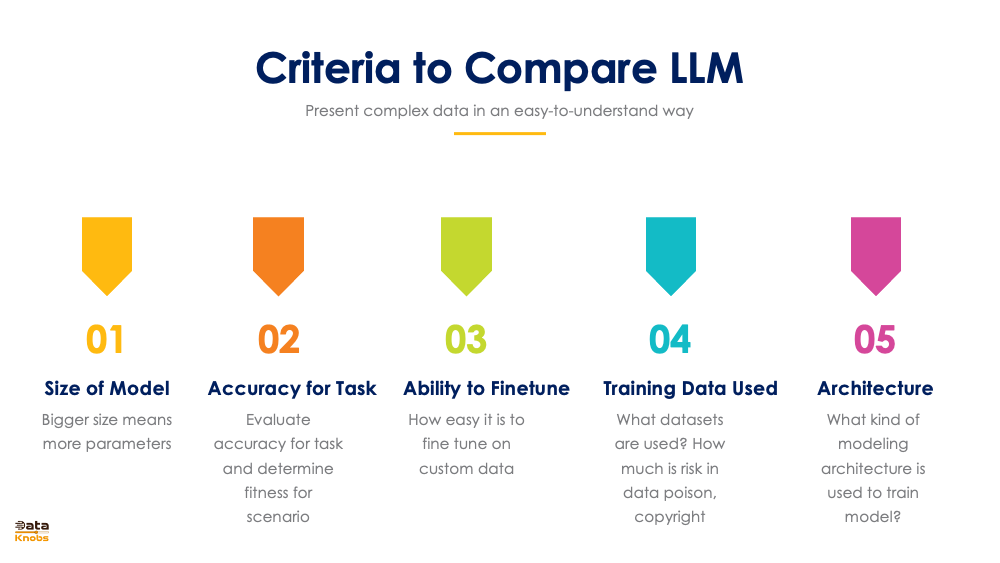

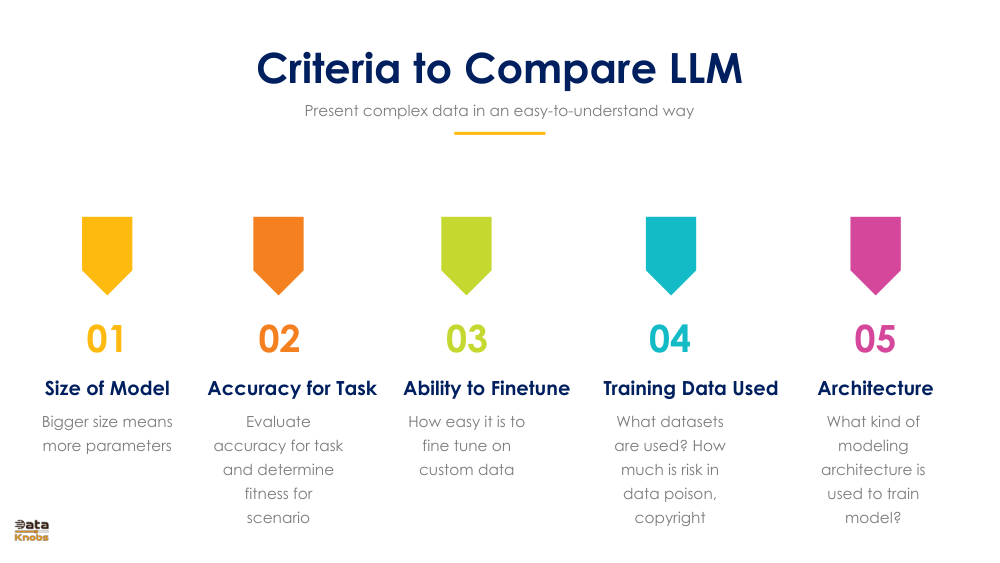

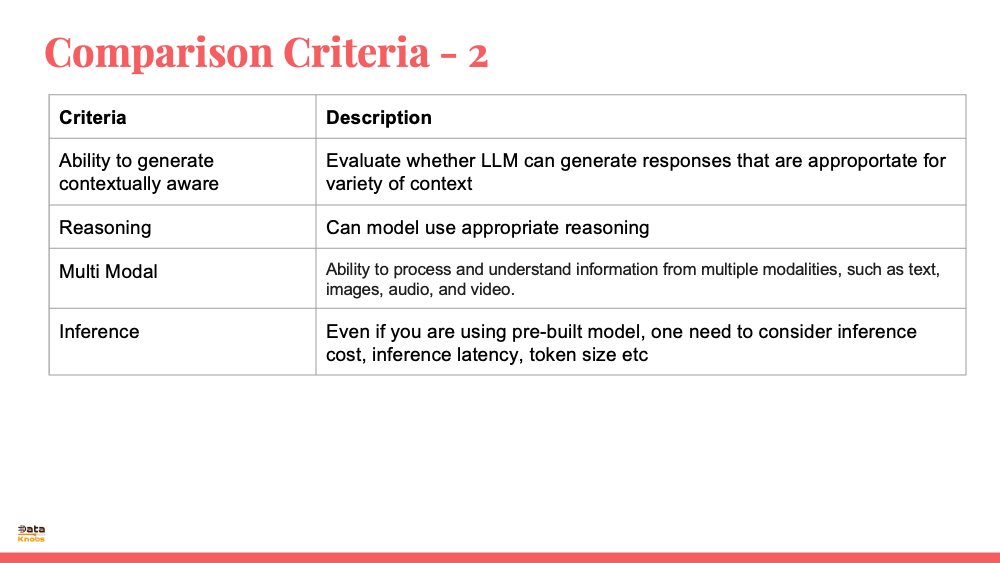

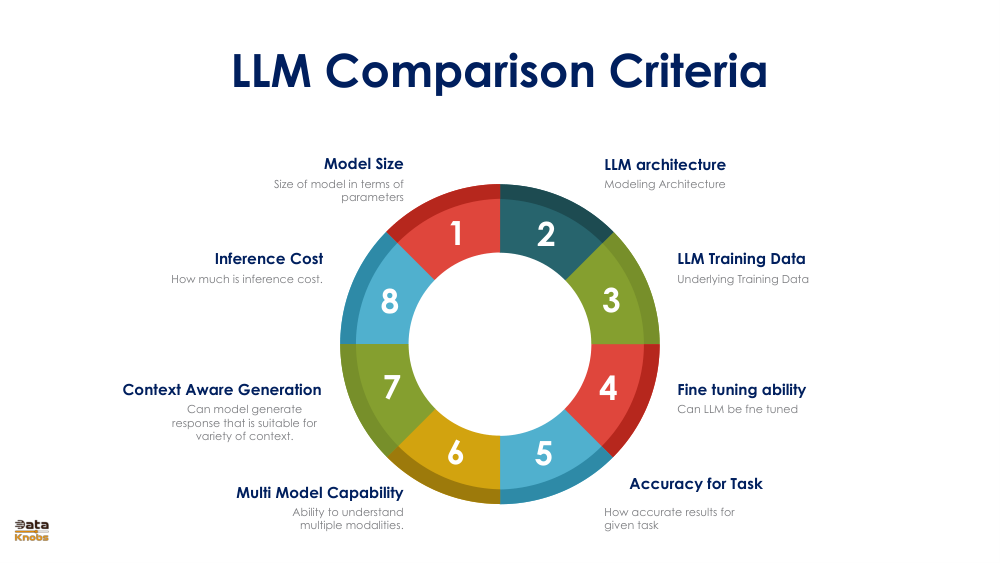

CRITERIA TO COMPARE LLMS

CRITERIA TO COMPARE LLMS
CRITERIA TO COMPARE LLMS

LLM TECHNOLOGY SLIDES

LLM TECHNOLOGY SLIDES
LLM TECHNOLOGY SLIDES

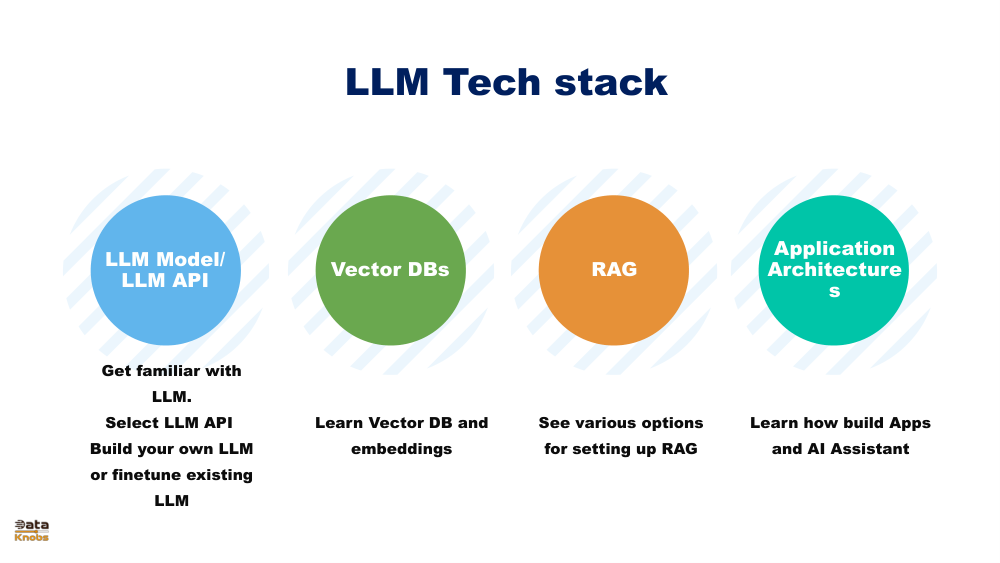

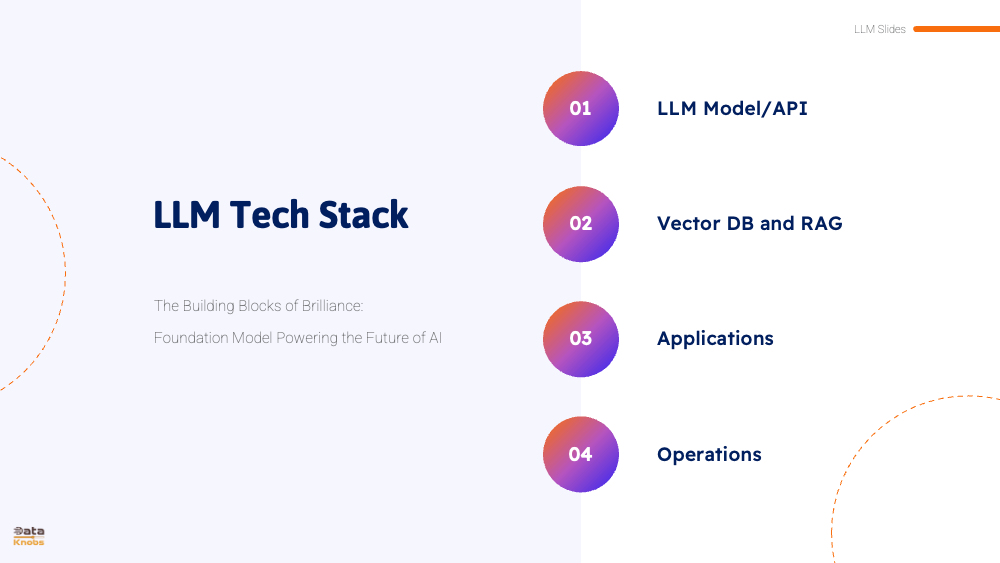

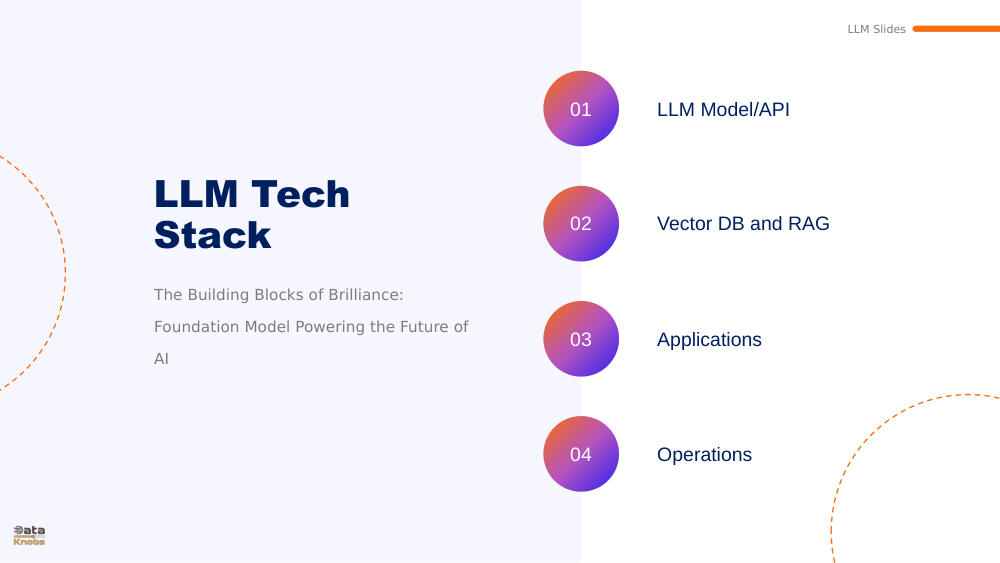

AI ASSISTANT TECH STACK

AI ASSISTANT TECH STACK
AI ASSISTANT TECH STACK

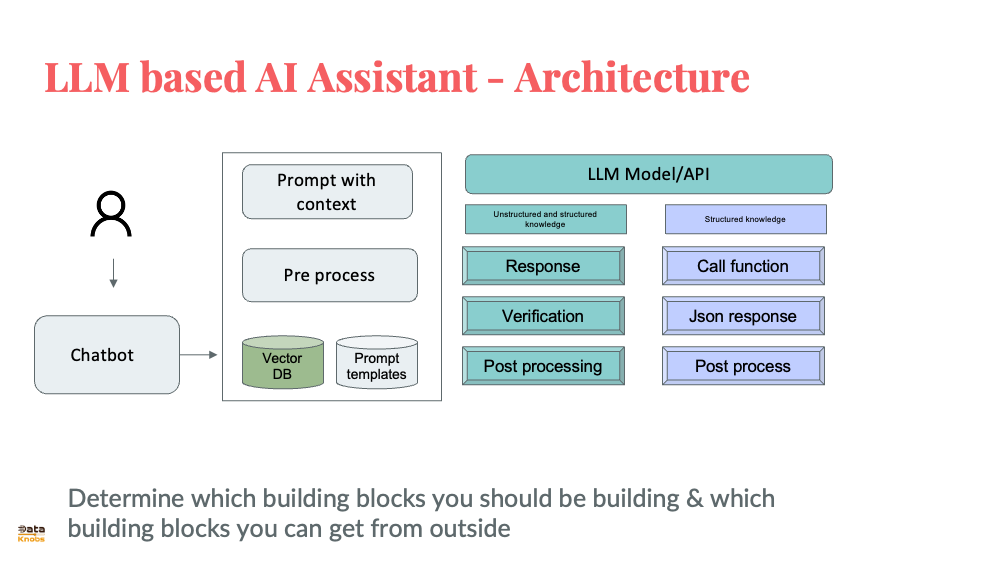

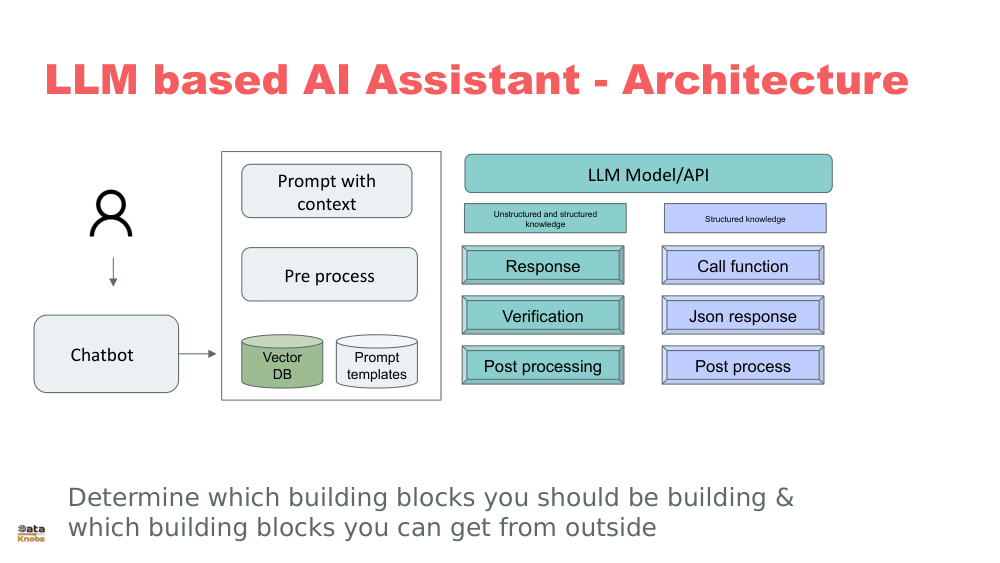

AI ASSISTANT ARCHITECTURE

AI ASSISTANT ARCHITECTURE
AI ASSISTANT ARCHITECTURE

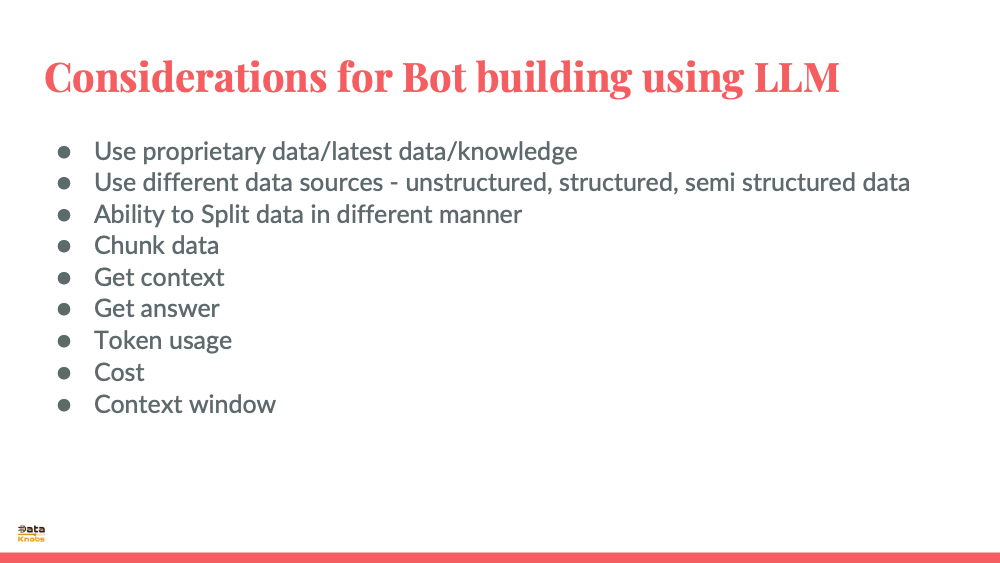

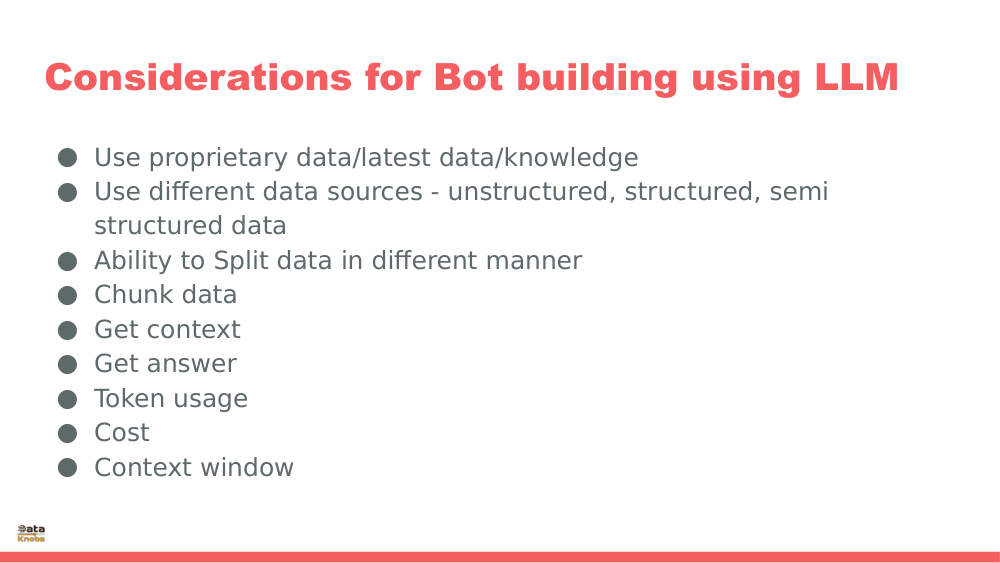

CONSIDERAIONS FOR BOT ARCHITEC

CONSIDERAIONS FOR BOT ARCHITEC
CONSIDERAIONS FOR BOT ARCHITEC

RAG SLIDES

RAG SLIDES
RAG SLIDES

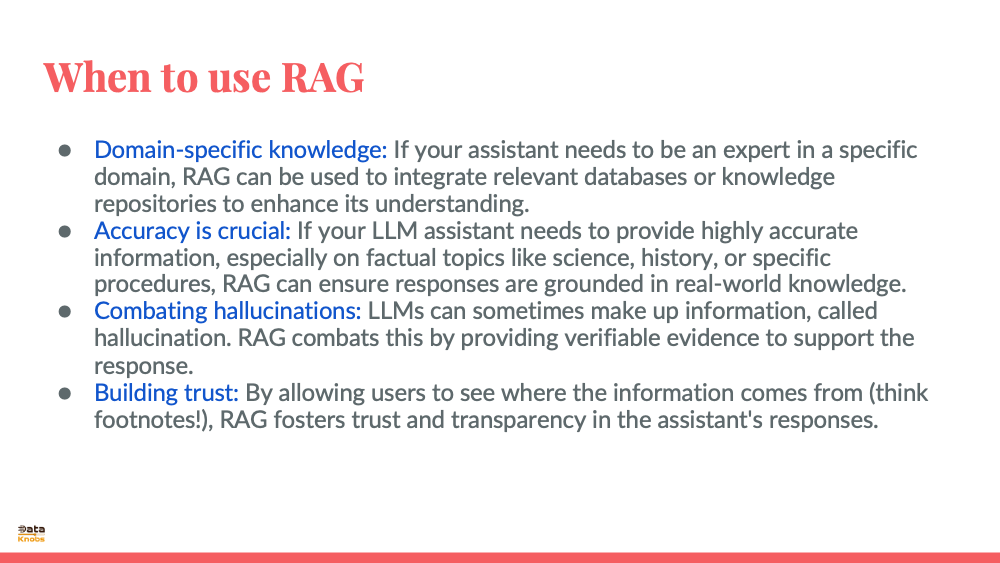

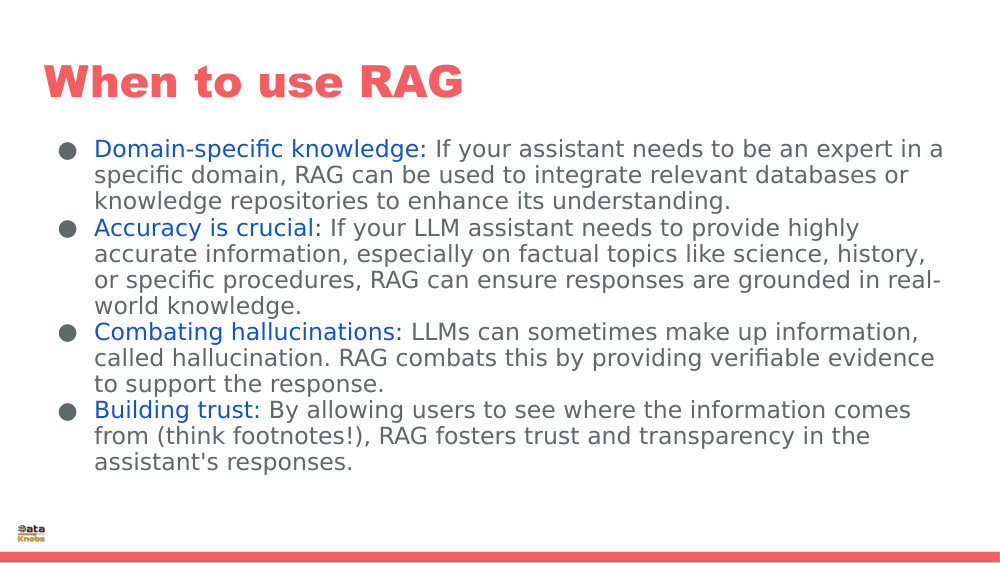

WHEN TO USE RAG

WHEN TO USE RAG
WHEN TO USE RAG

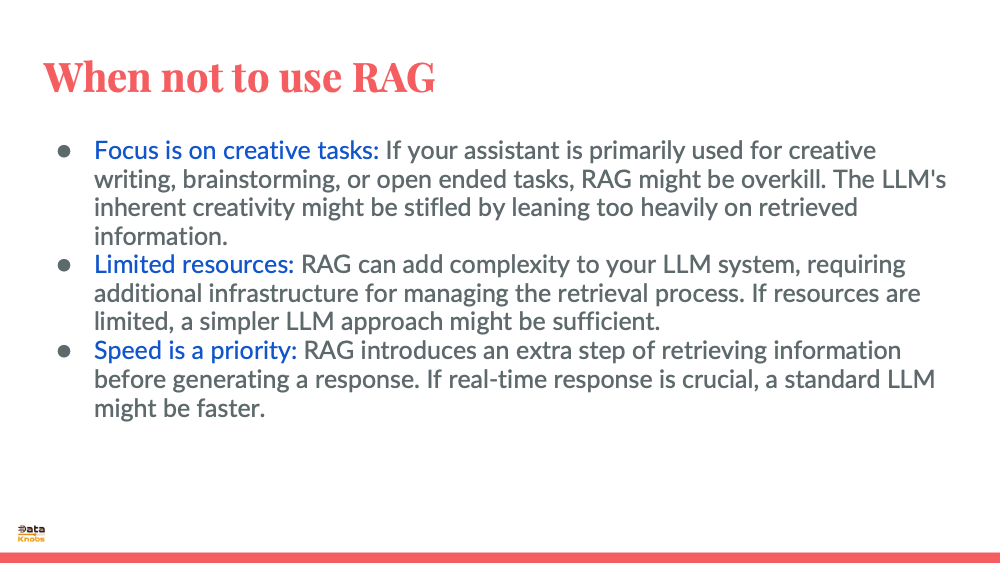

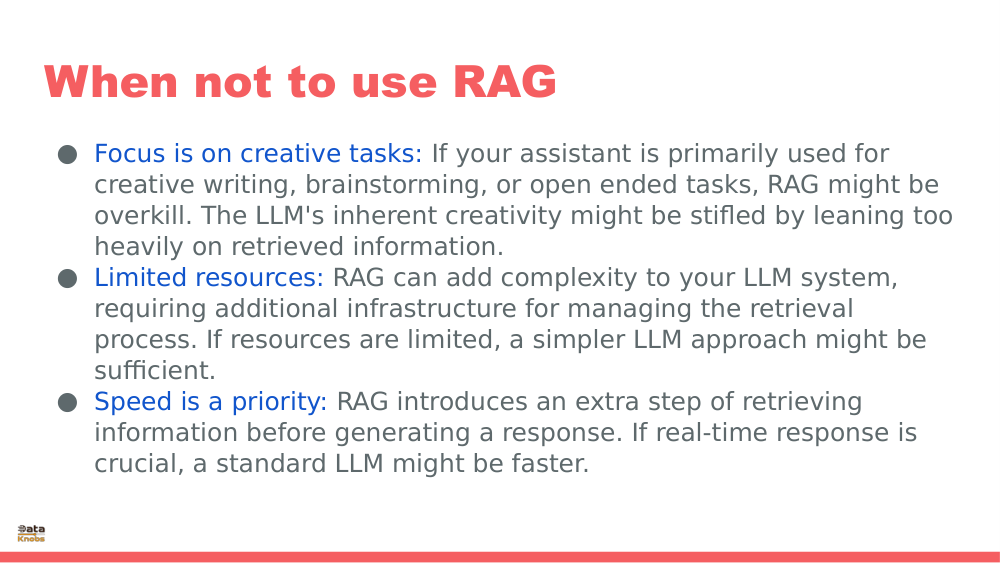

WHEN NOT TO USE RAG

WHEN NOT TO USE RAG
WHEN NOT TO USE RAG

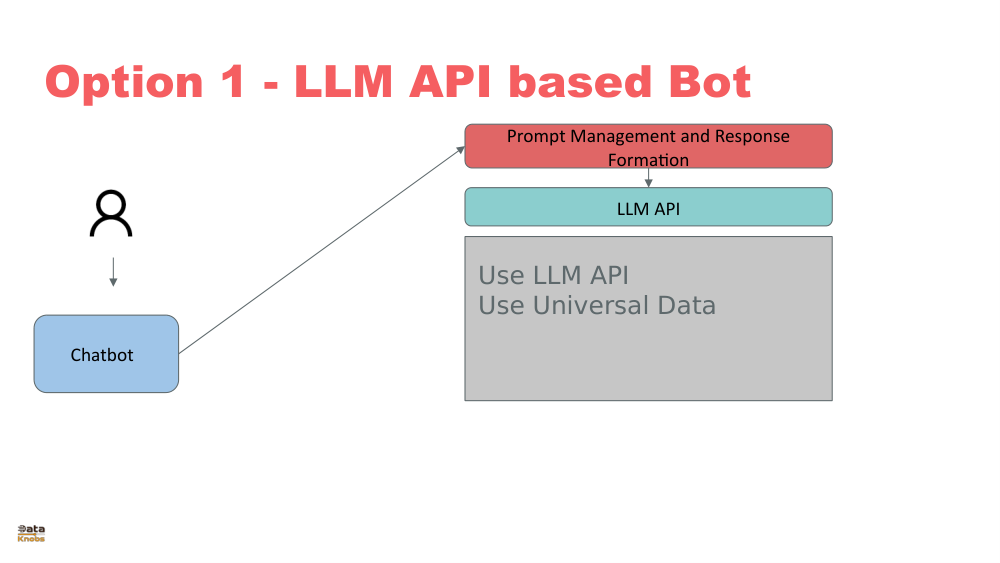

AI ASSISTANT WRAPPER

AI ASSISTANT WRAPPER
AI ASSISTANT WRAPPER

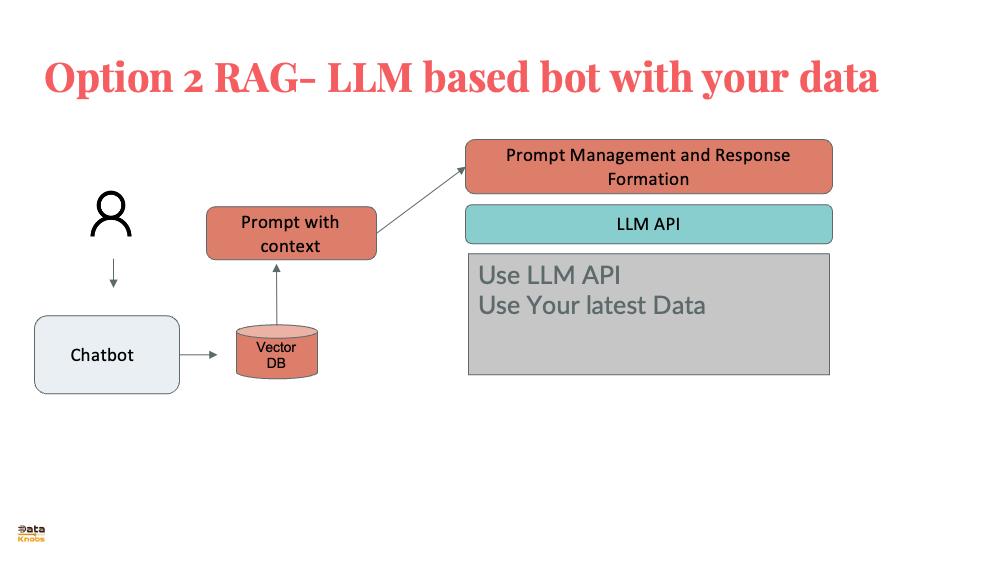

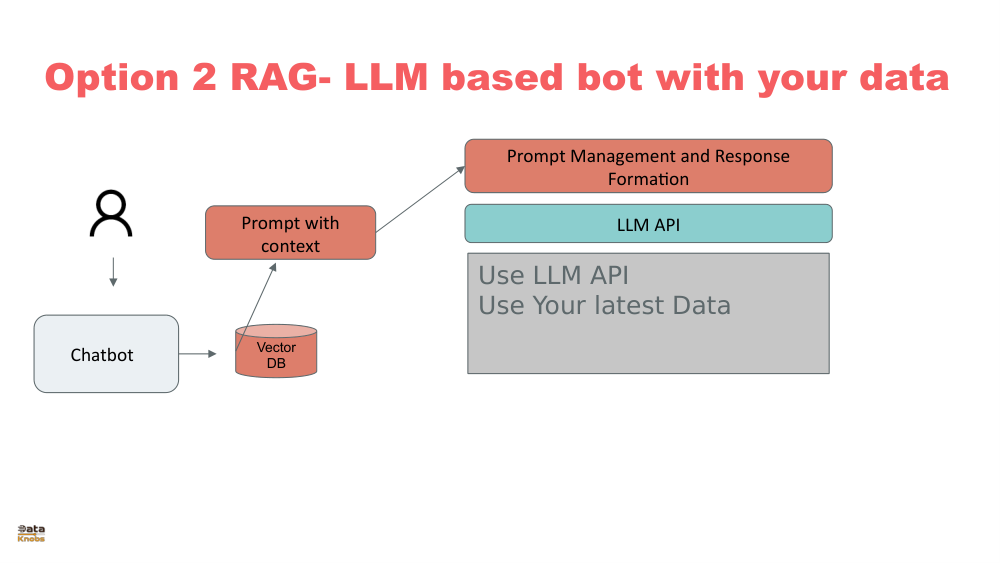

AI ASSISTANT ON YOUR DATA

AI ASSISTANT ON YOUR DATA
AI ASSISTANT ON YOUR DATA

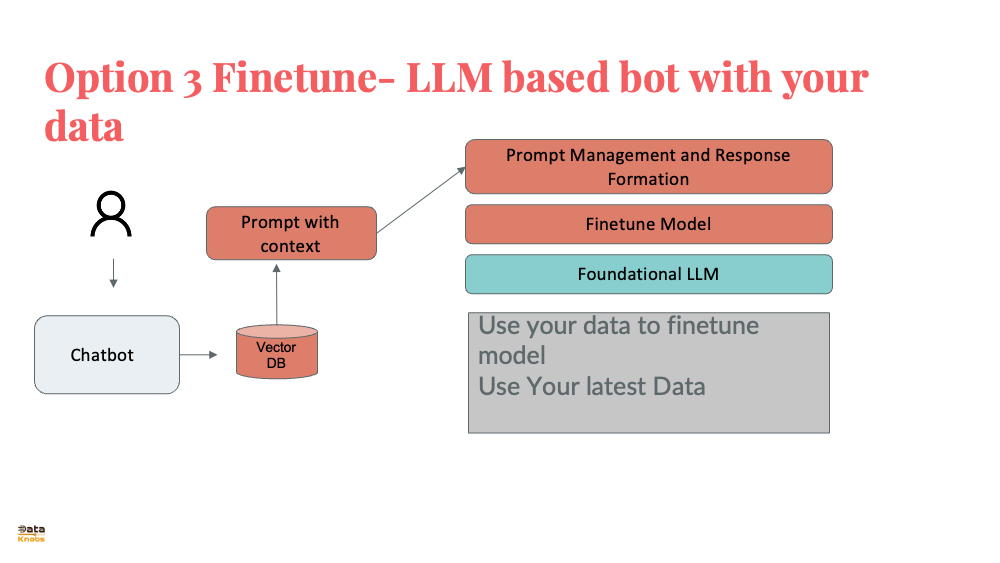

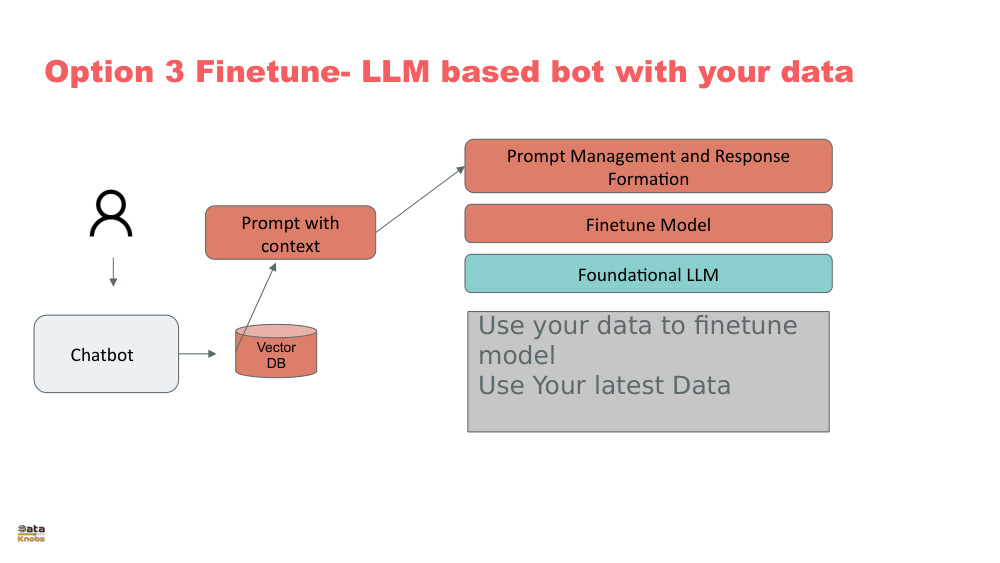

AI ASSISTANT FINETUNE MODEL

AI ASSISTANT FINETUNE MODEL
AI ASSISTANT FINETUNE MODEL

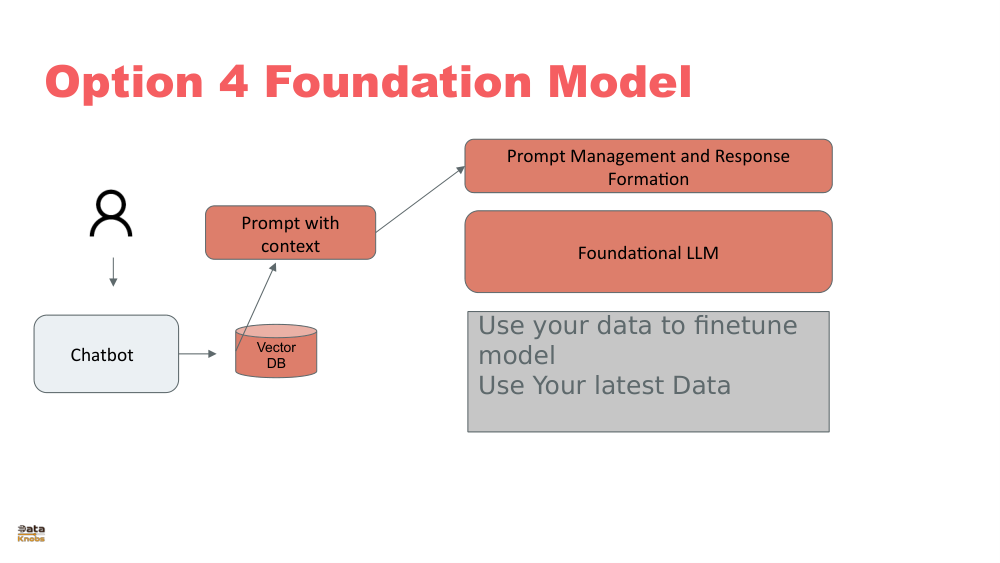

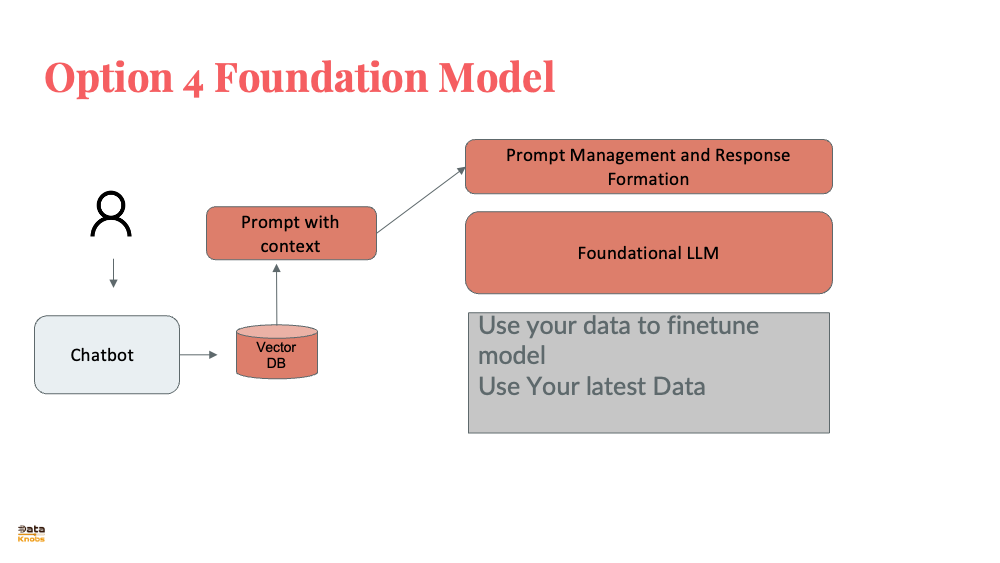

AI ASSISTANT CUSTOM MODEL

AI ASSISTANT CUSTOM MODEL
AI ASSISTANT CUSTOM MODEL

AI ASSISTANT BUILDING BLOCKS

AI ASSISTANT BUILDING BLOCKS
AI ASSISTANT BUILDING BLOCKS

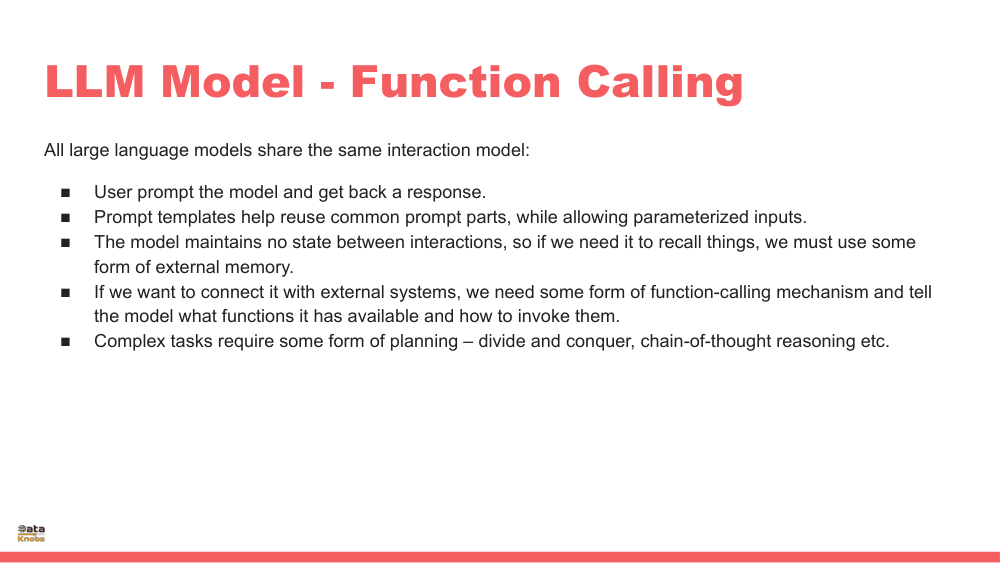

LLM FUNCTION CALLING

LLM FUNCTION CALLING
LLM FUNCTION CALLING

RAG OVERVIEW SLIDES

RAG OVERVIEW SLIDES
RAG OVERVIEW SLIDES

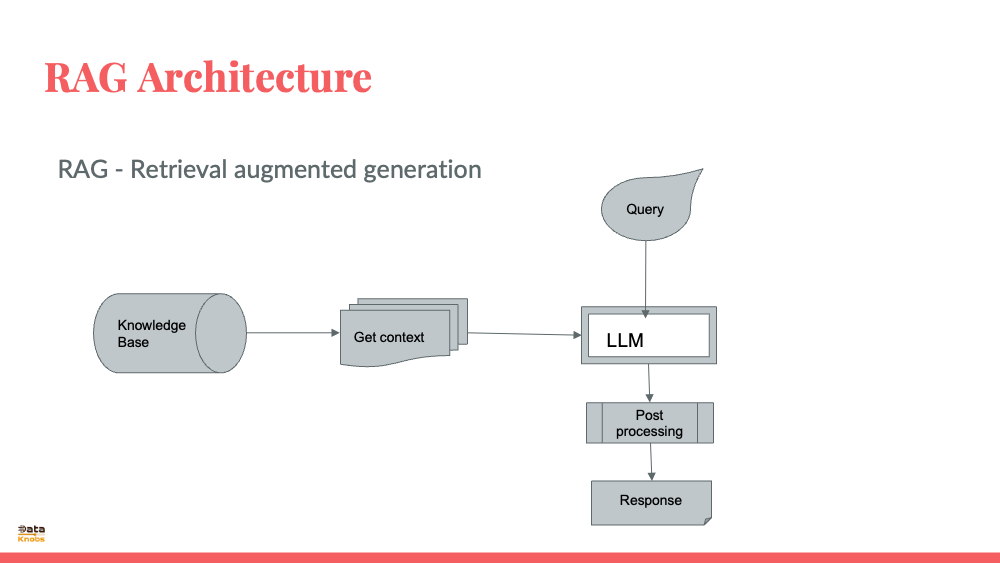

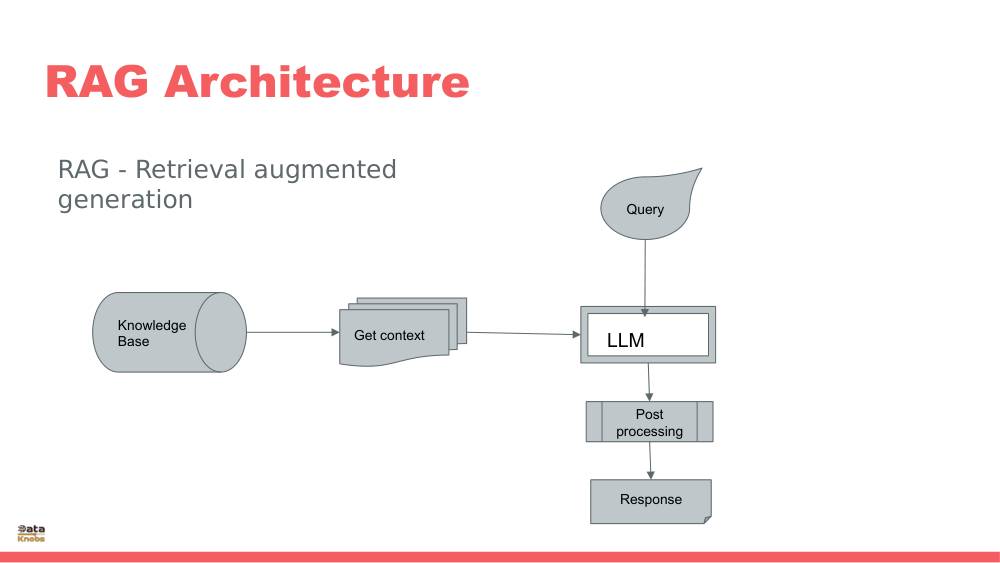

RAG ARCHITECTURE SLIDE

RAG ARCHITECTURE SLIDE
RAG ARCHITECTURE SLIDE

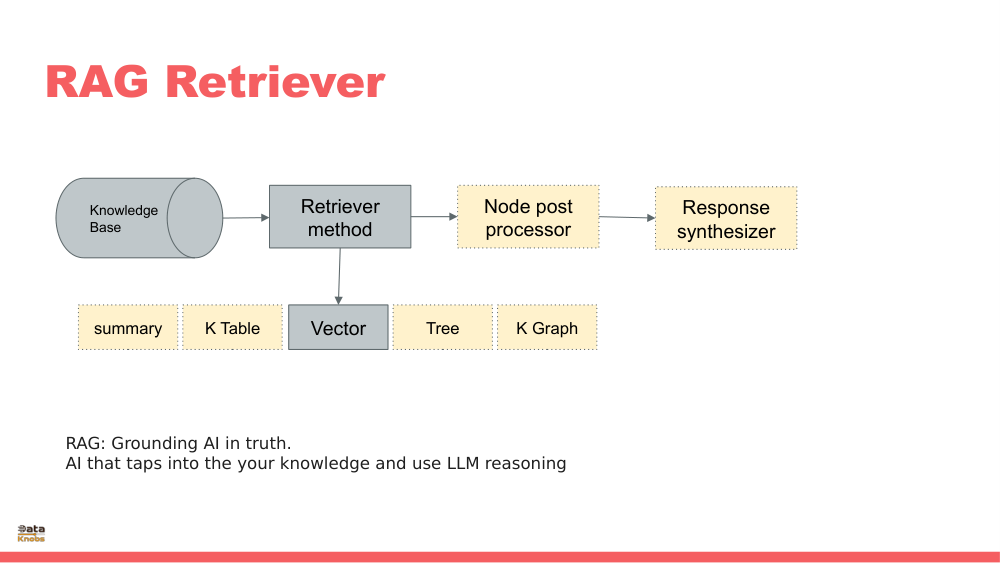

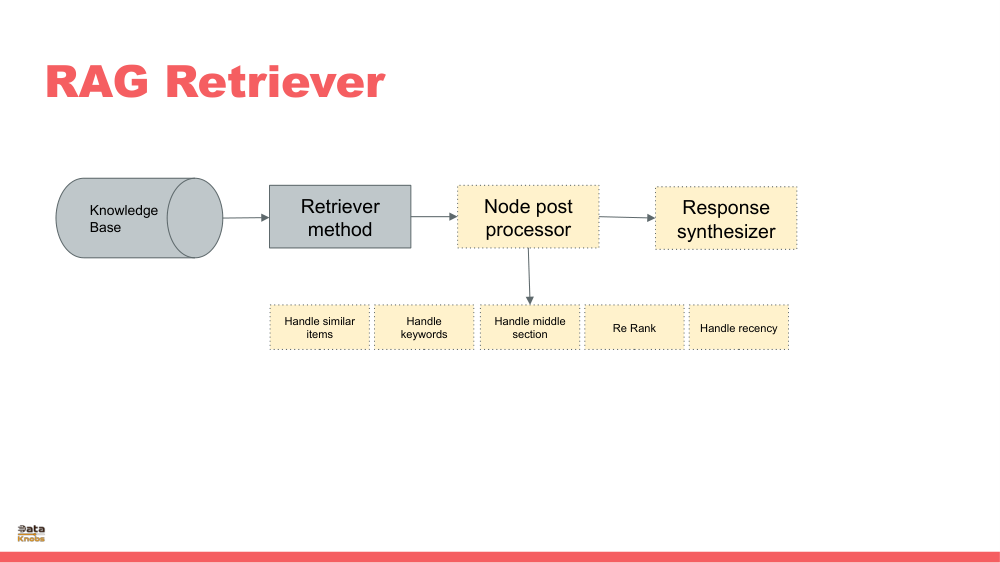

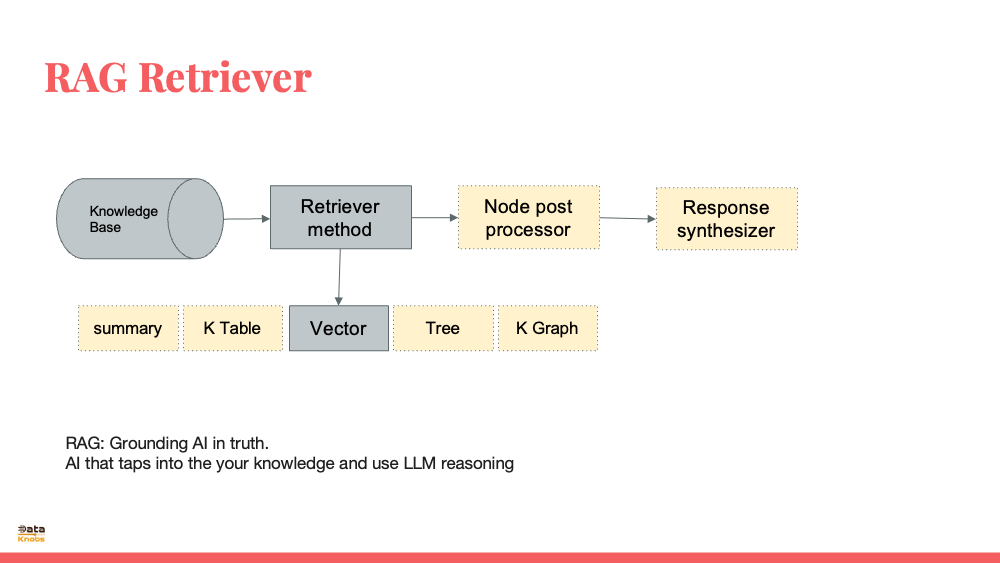

RAG RETRIEVER OPTIONS

RAG RETRIEVER OPTIONS
RAG RETRIEVER OPTIONS

RAG NODE PROCESSOR

RAG NODE PROCESSOR
RAG NODE PROCESSOR

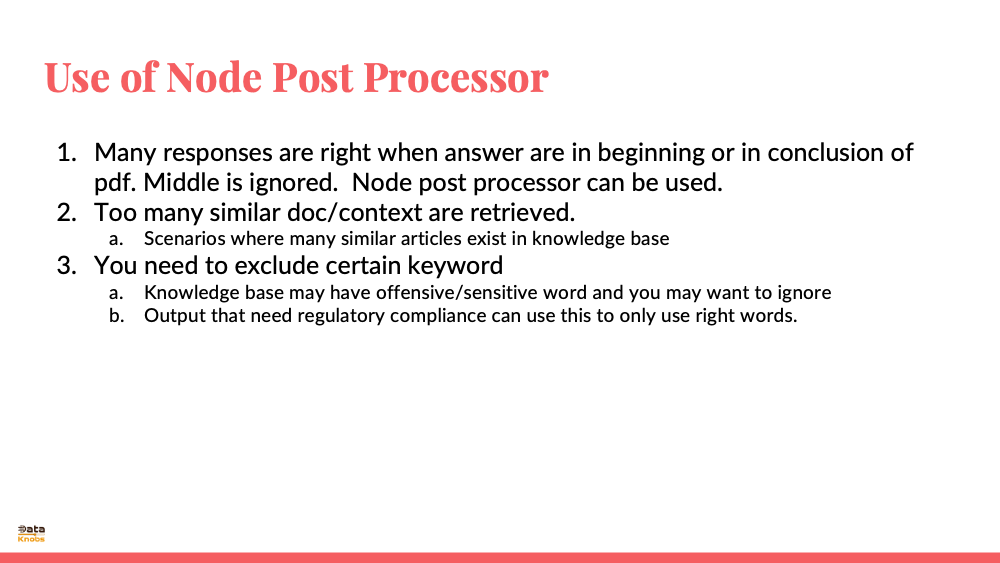

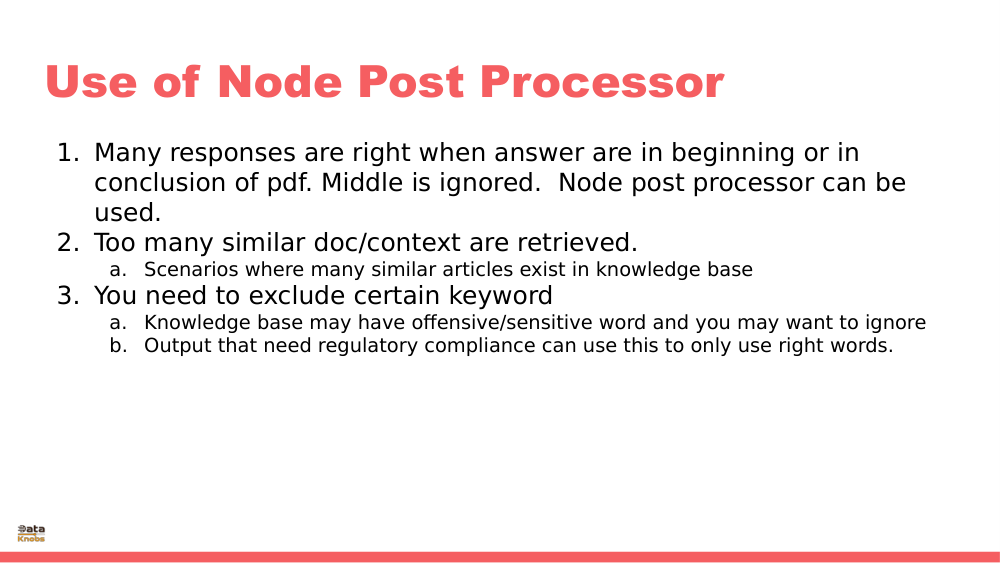

RAG NODE POST PROCESSOR

RAG NODE POST PROCESSOR
RAG NODE POST PROCESSOR

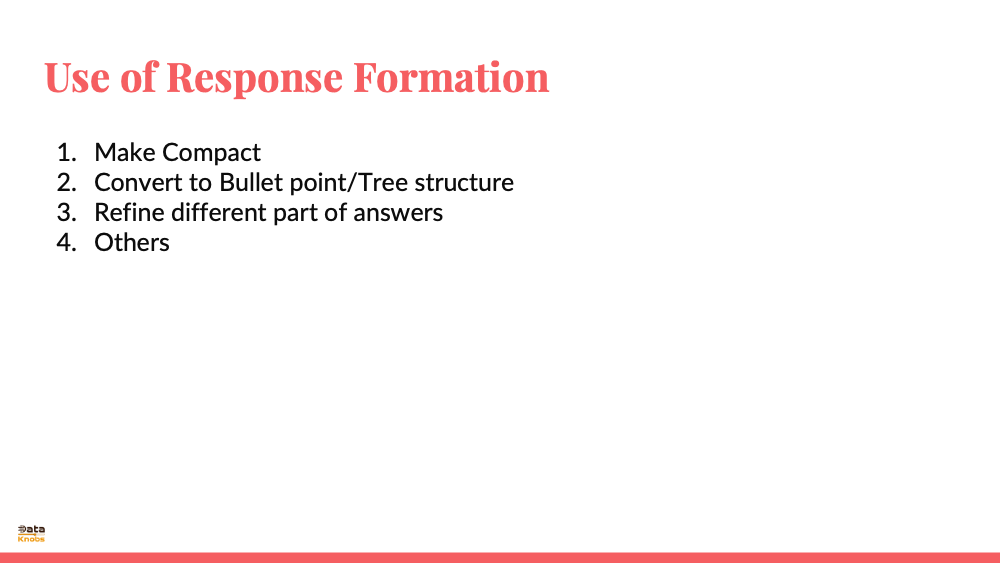

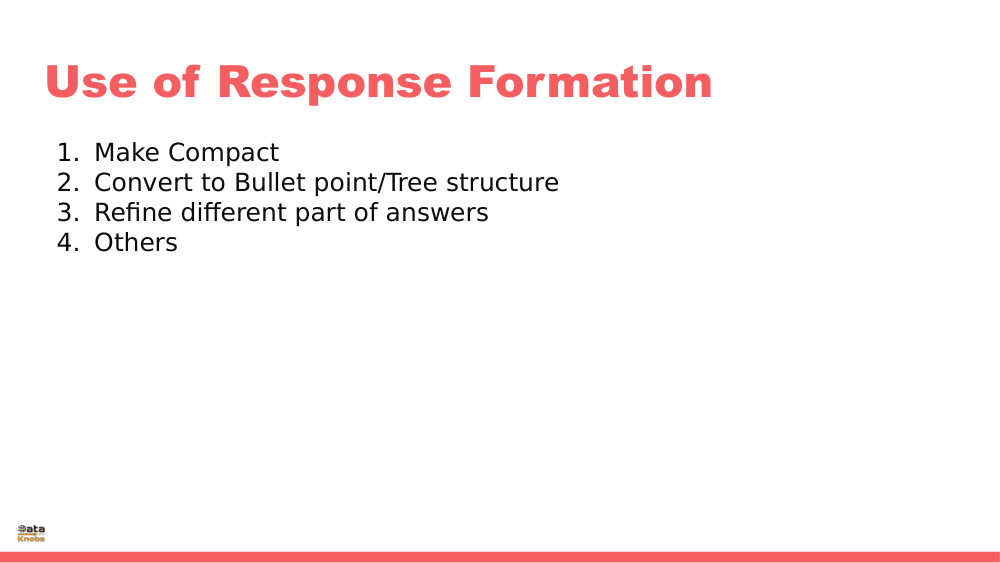

HOW TO FORM RESPONSE IN AI ASS

HOW TO FORM RESPONSE IN AI ASS
HOW TO FORM RESPONSE IN AI ASS

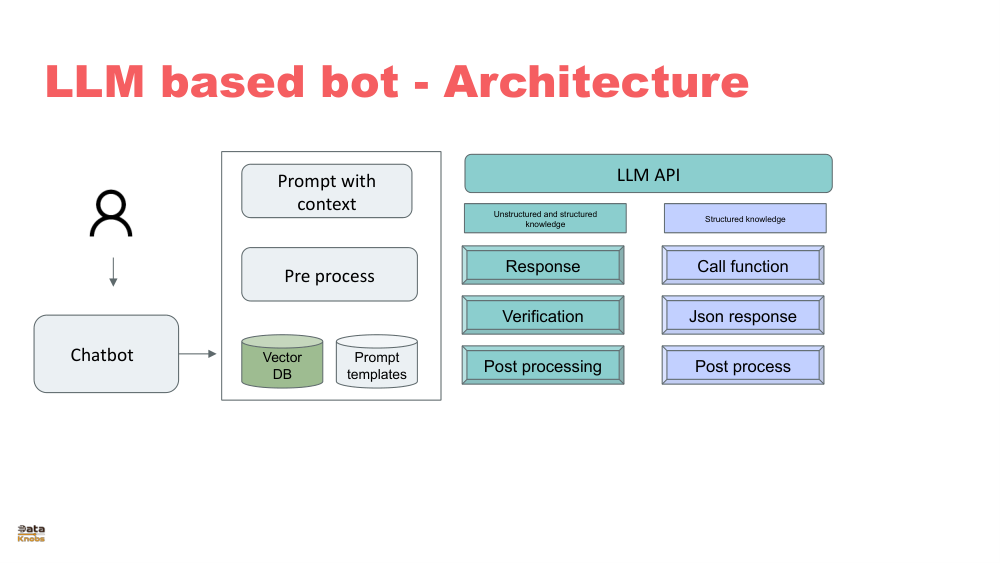

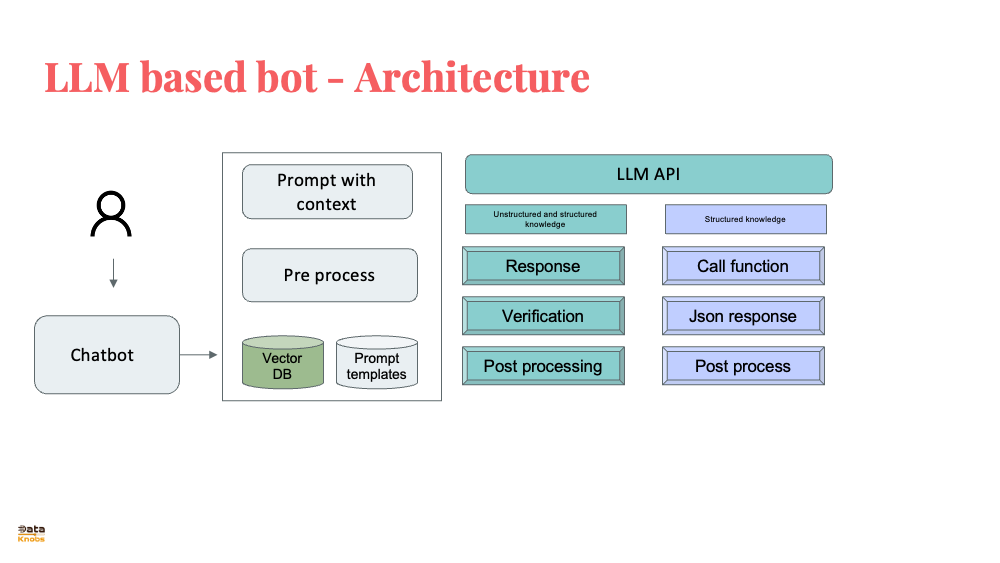

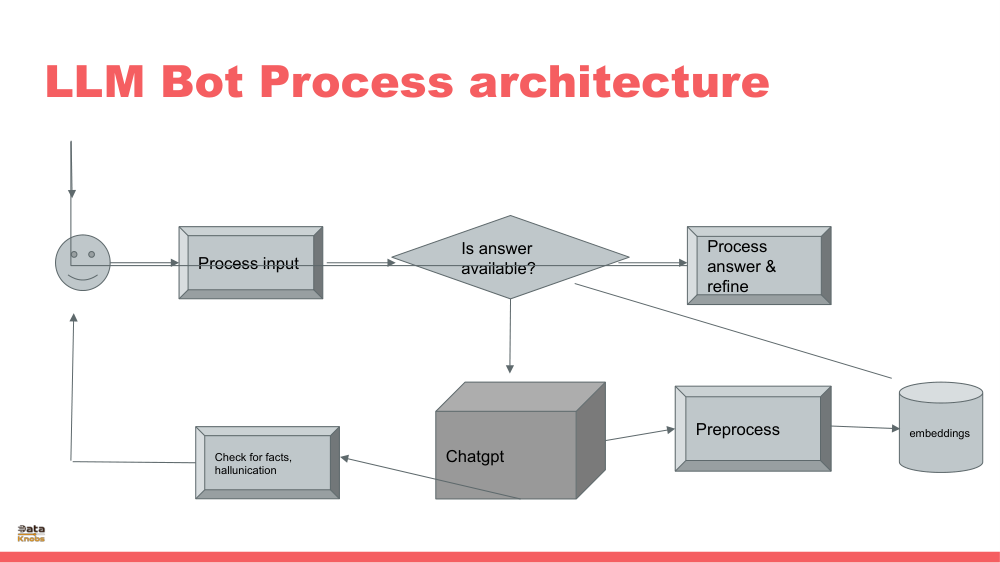

LLM ARCHITECTUE FOR BOT

LLM ARCHITECTUE FOR BOT
LLM ARCHITECTUE FOR BOT

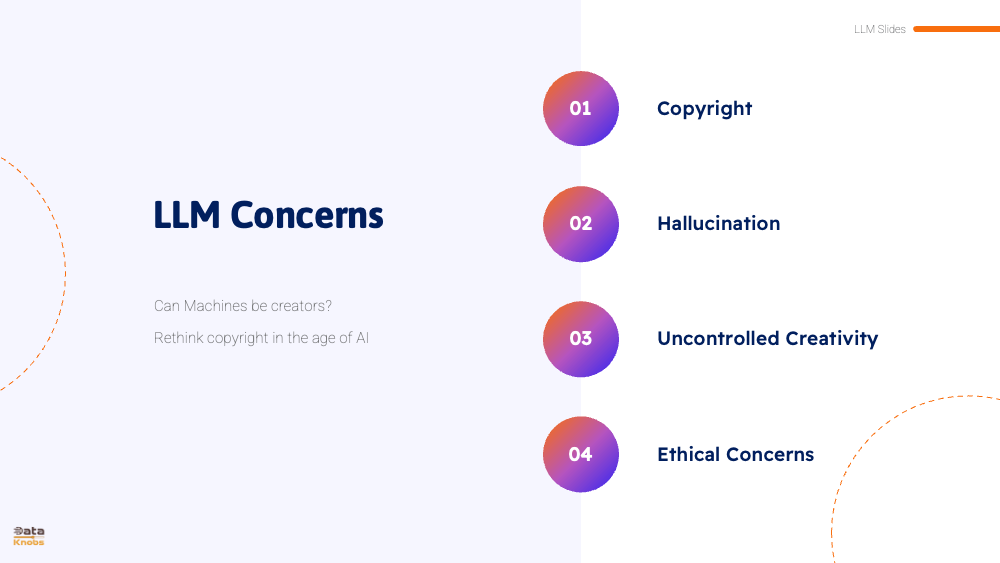

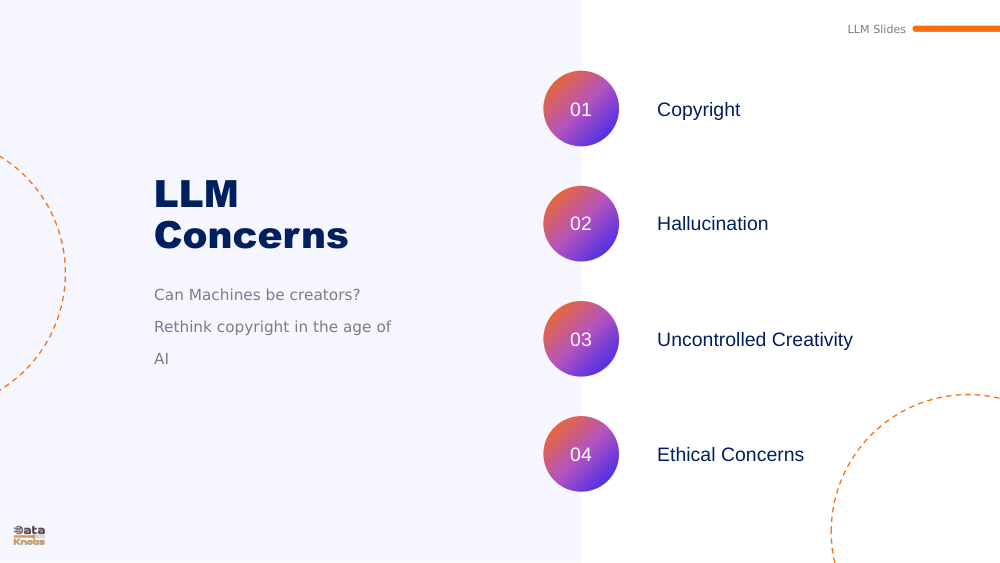

LLM CONCERNS SLIDES

LLM CONCERNS SLIDES
LLM CONCERNS SLIDES

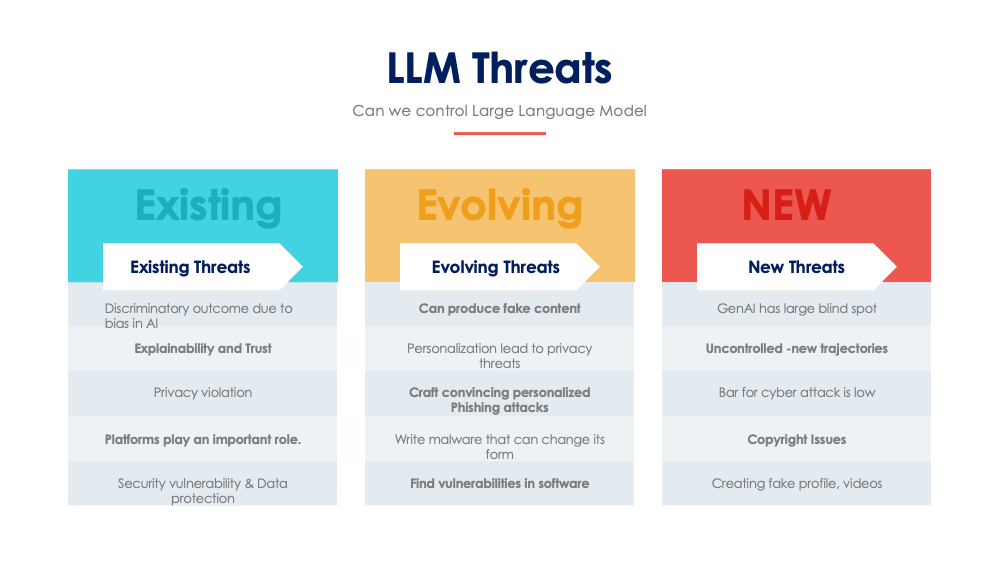

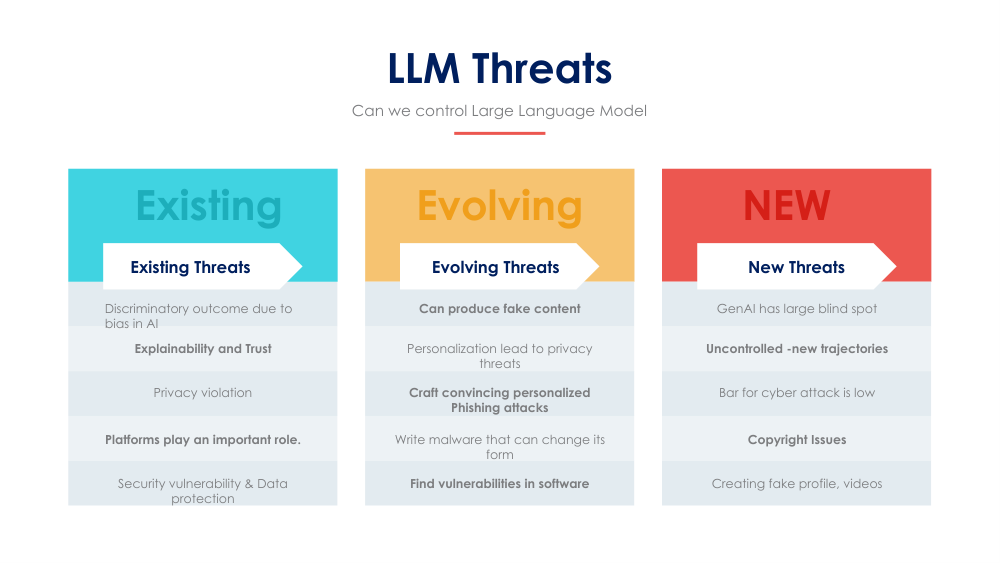

LLM THREATS SLIDES

LLM THREATS SLIDES
LLM THREATS SLIDES

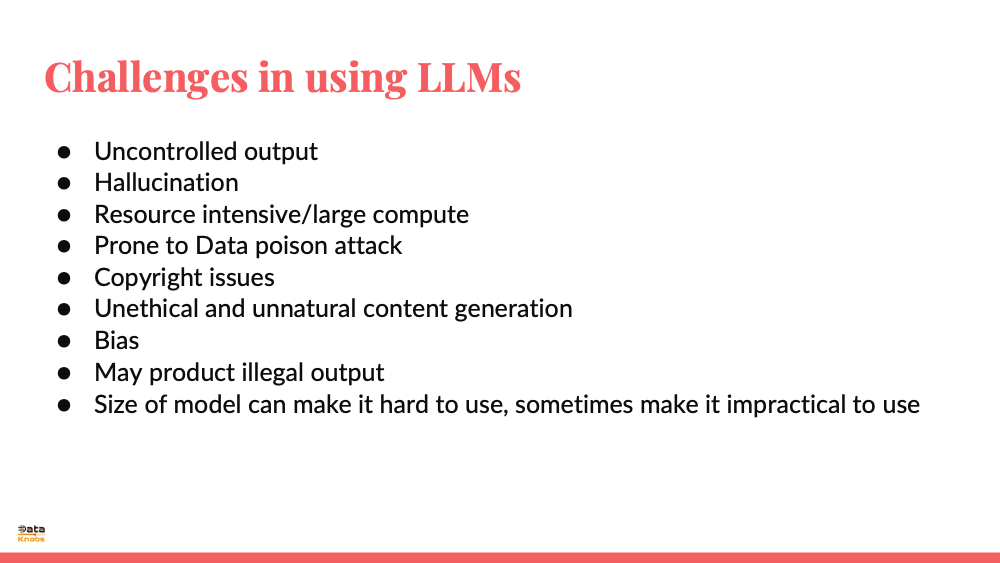

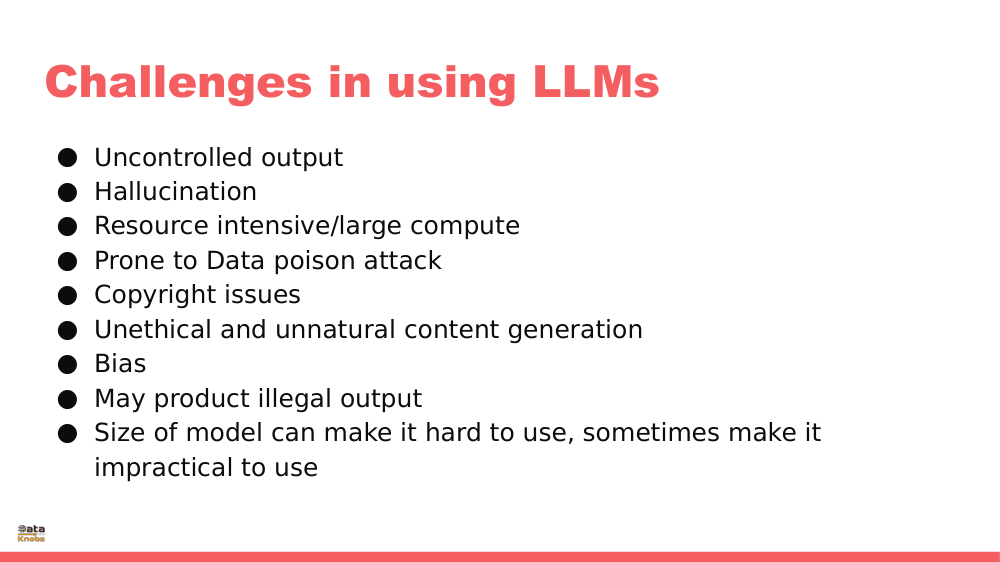

LLM CHALLENGES SLIDE

LLM CHALLENGES SLIDE
LLM CHALLENGES SLIDE

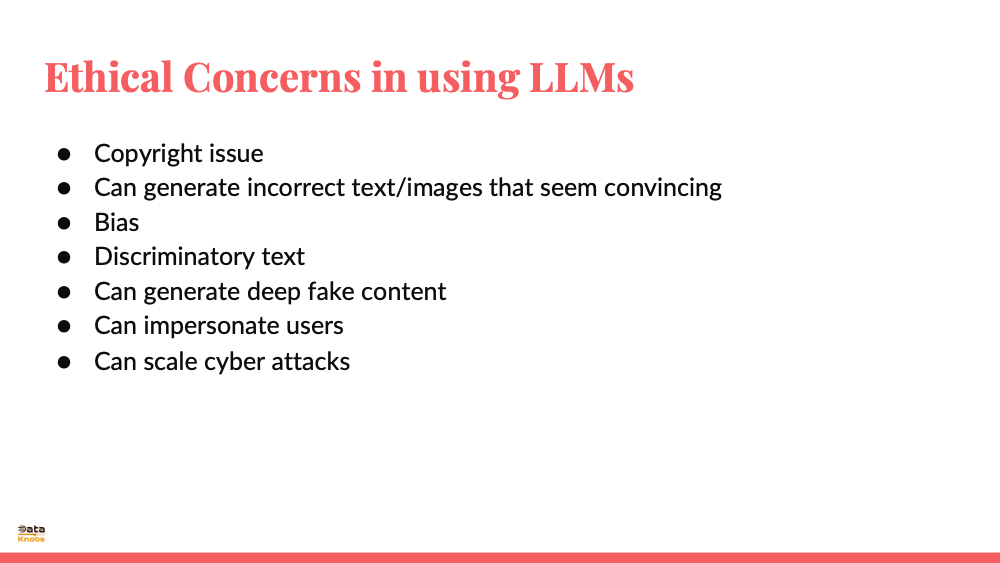

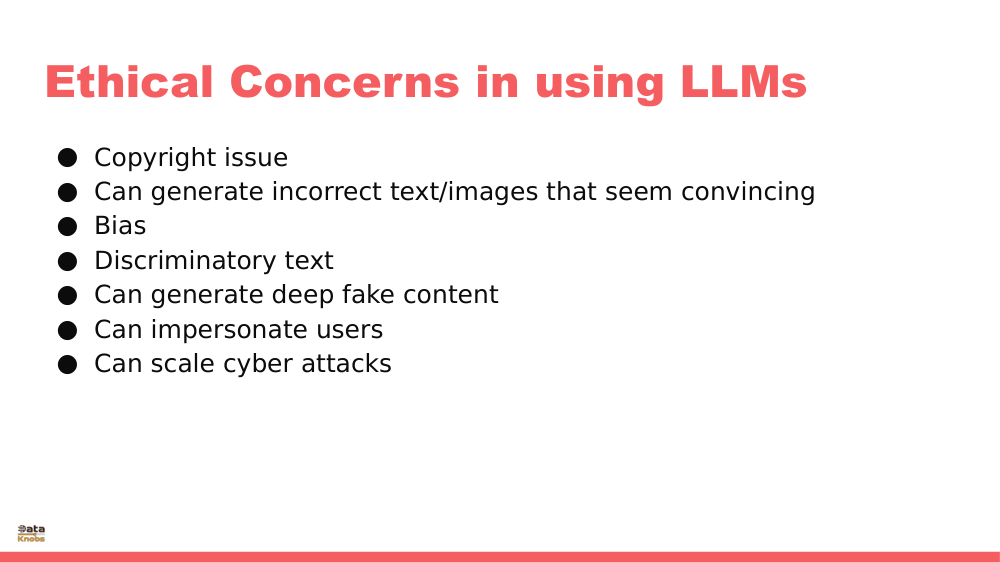

LLM ETHICAL CONCERNS SLIDES

LLM ETHICAL CONCERNS SLIDES
LLM ETHICAL CONCERNS SLIDES

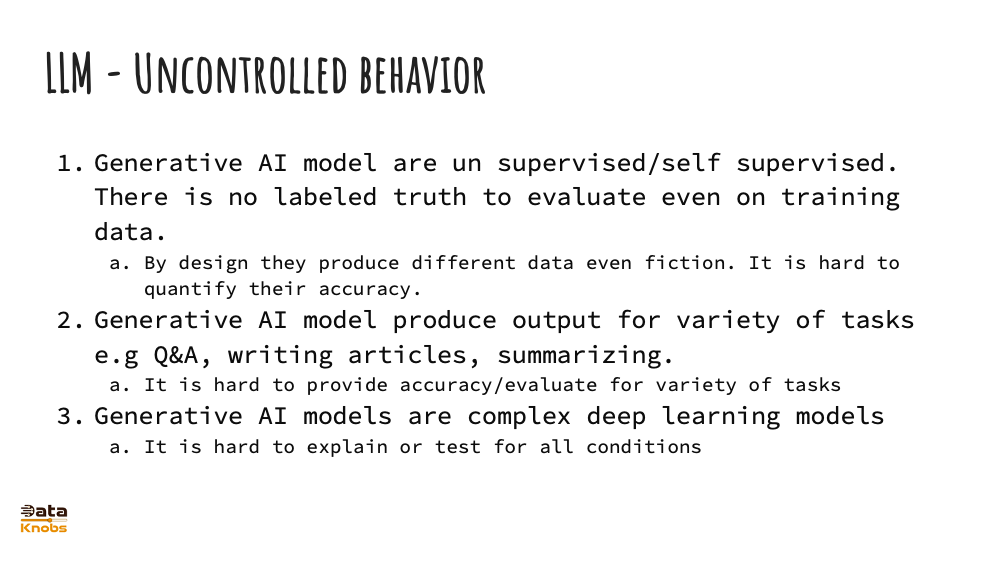

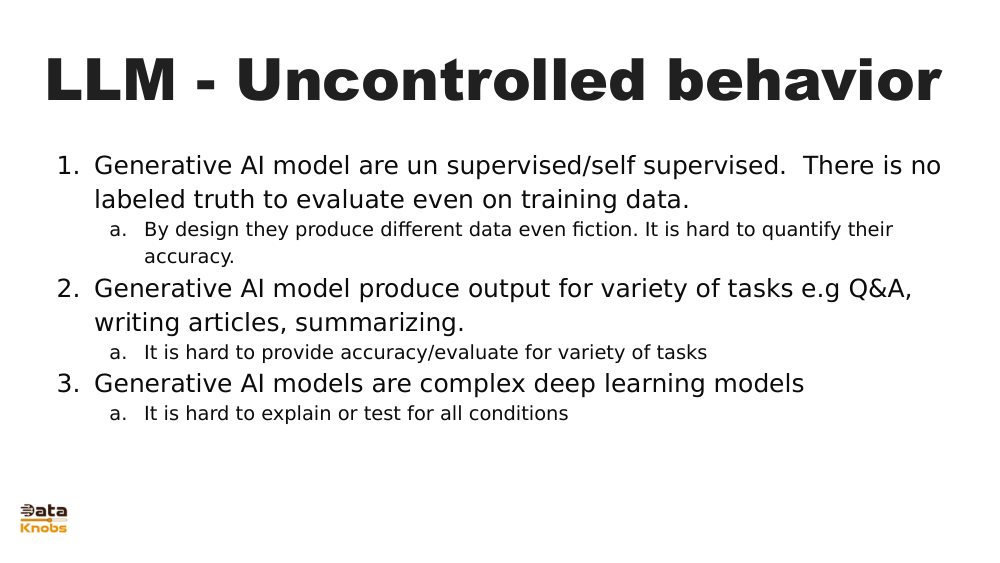

LLM UNCONTROLLED BEHAVIOR SLID

LLM UNCONTROLLED BEHAVIOR SLID
LLM UNCONTROLLED BEHAVIOR SLID

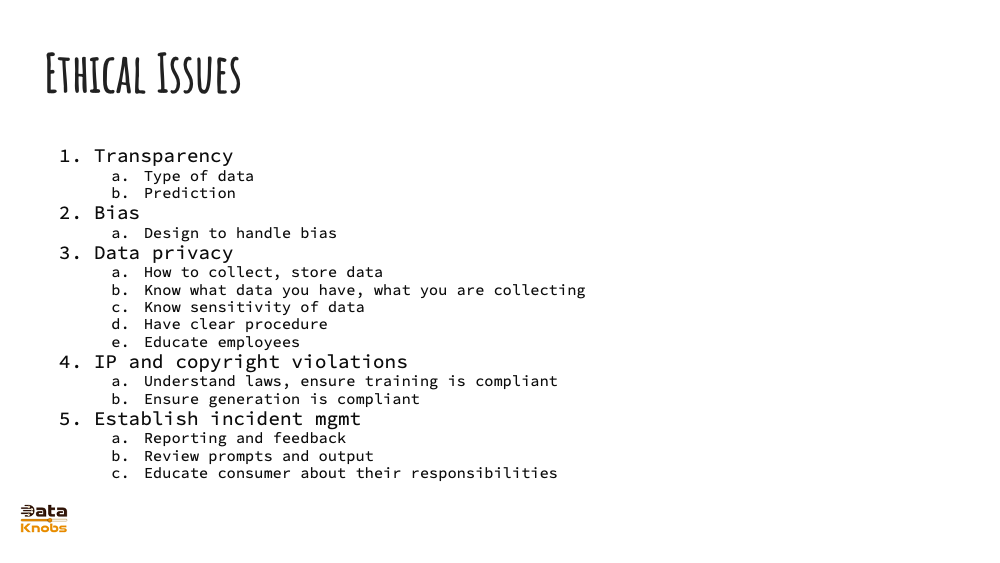

LLLM ETHICAL ISSUES

LLLM ETHICAL ISSUES
LLLM ETHICAL ISSUES

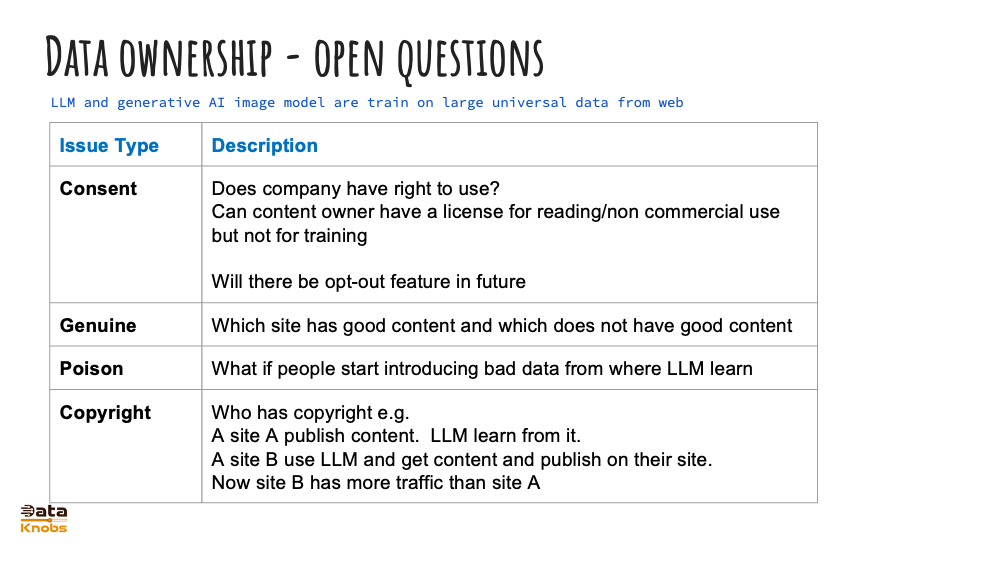

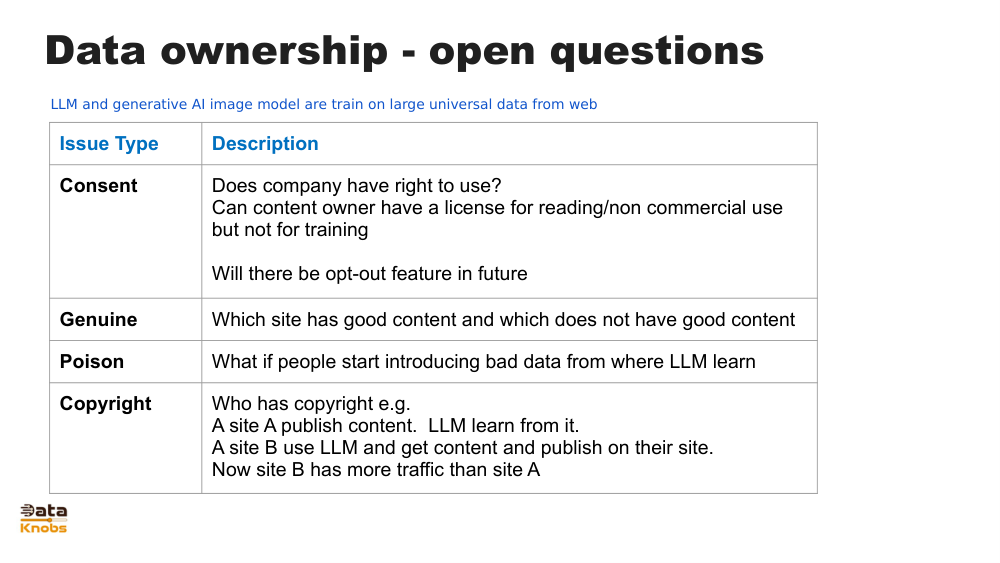

DATA OWNERSHIP ISSUES LLM

DATA OWNERSHIP ISSUES LLM
DATA OWNERSHIP ISSUES LLM

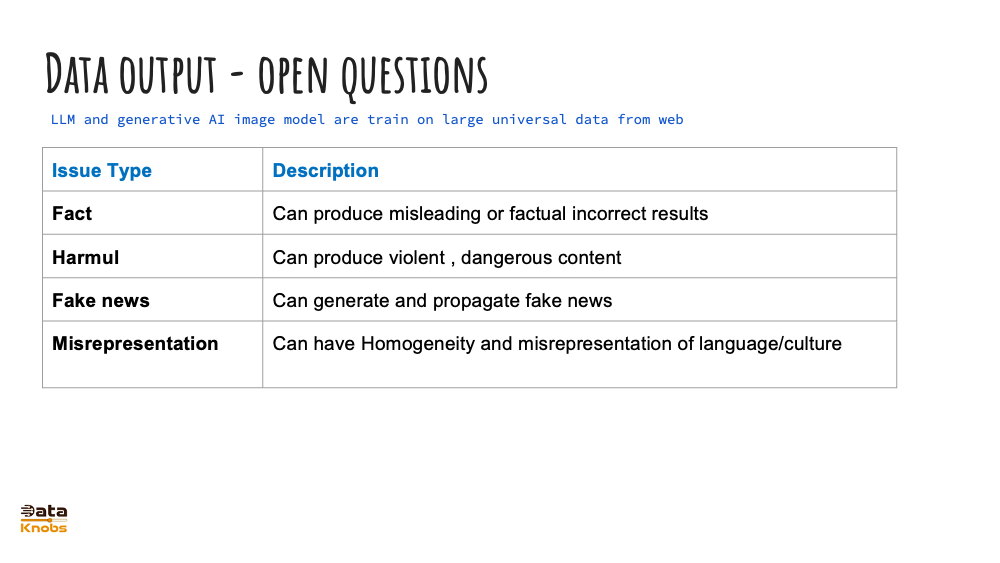

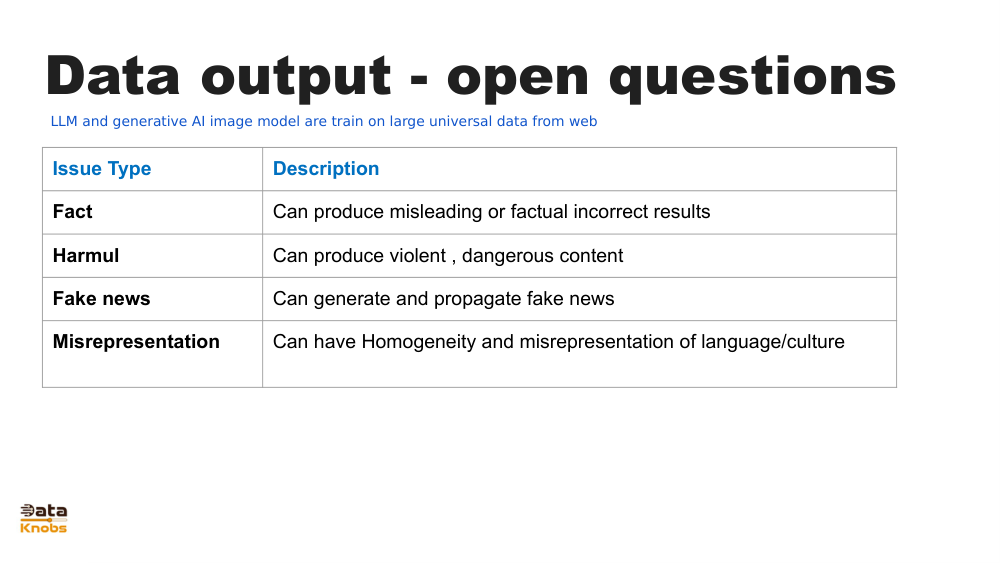

LLM GENERATED OUTPUT ISSUES

LLM GENERATED OUTPUT ISSUES
LLM GENERATED OUTPUT ISSUES

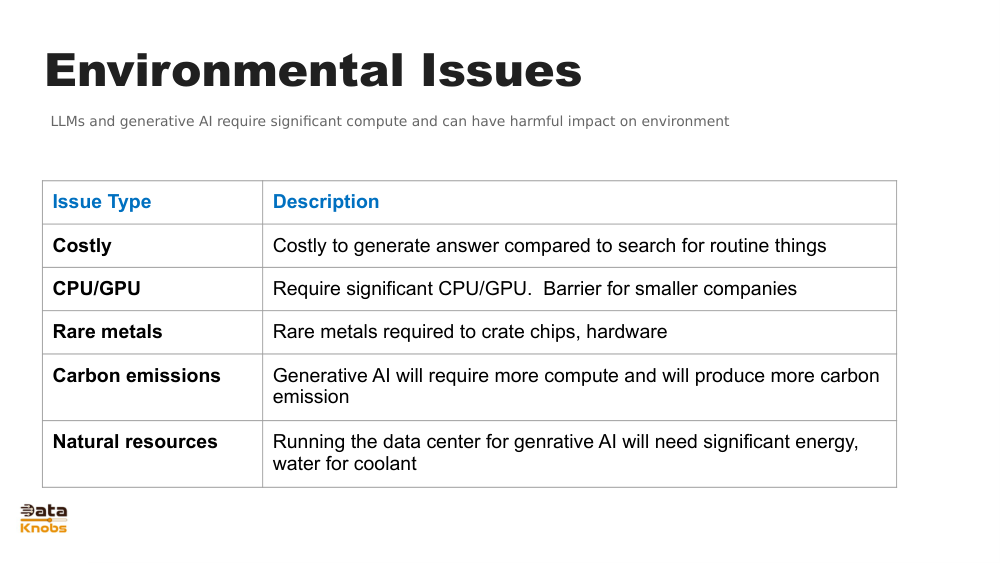

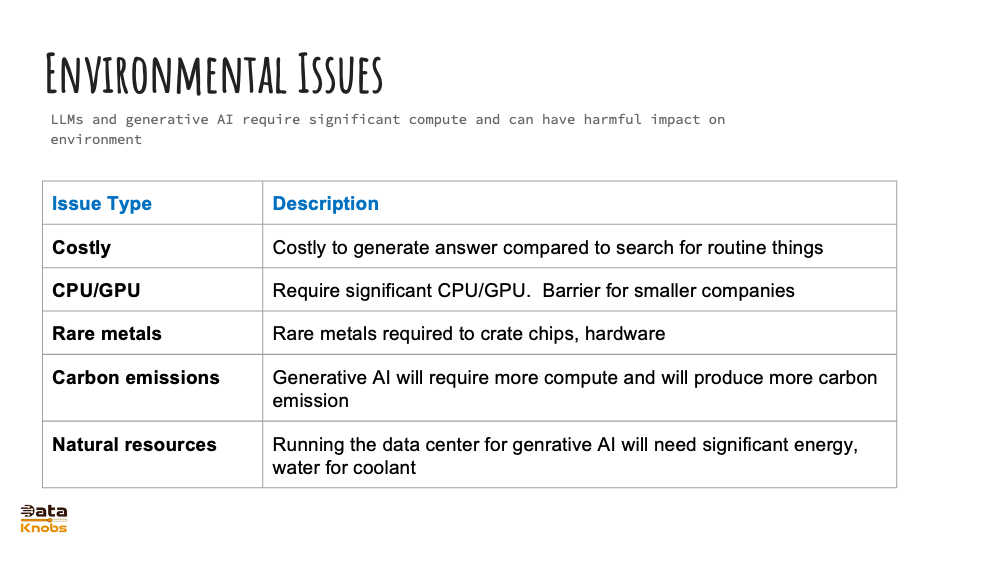

LLM ENVIRONMENT ISSUES

LLM ENVIRONMENT ISSUES
LLM ENVIRONMENT ISSUES

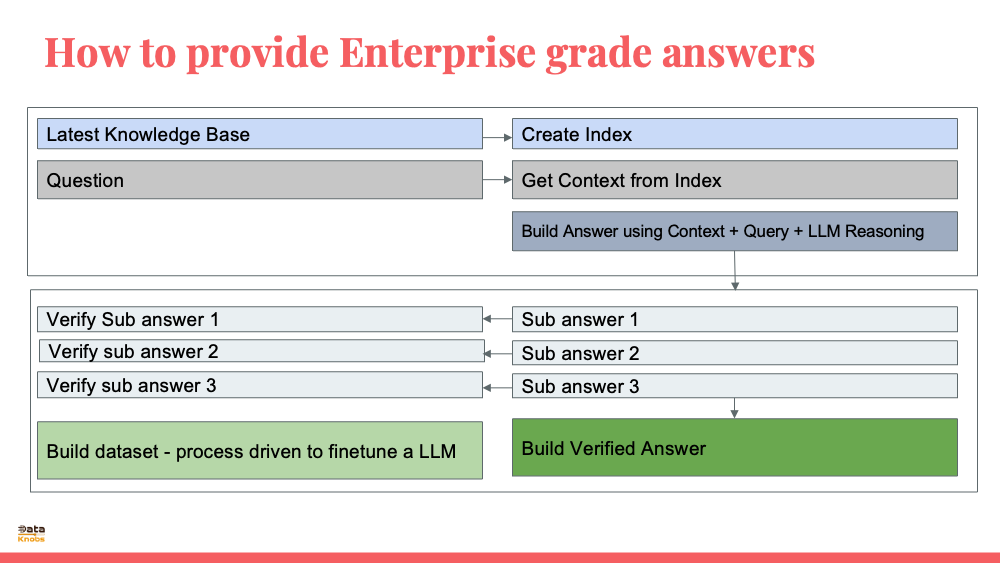

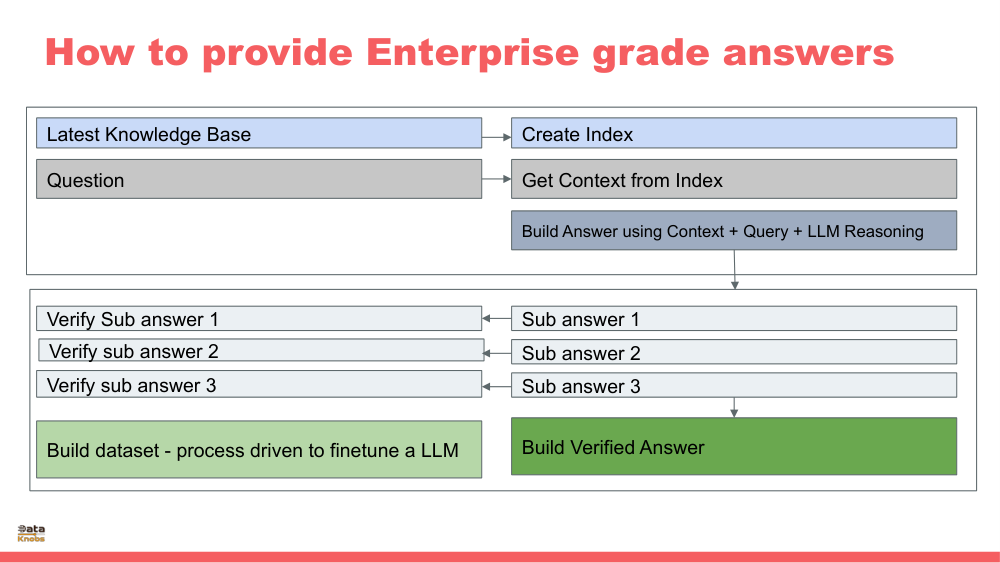

ENTERPRISE GRADE ANSWERS AI AS

ENTERPRISE GRADE ANSWERS AI AS
ENTERPRISE GRADE ANSWERS AI AS

APPROACHES TO VERIFY AI ASSIST

APPROACHES TO VERIFY AI ASSIST
APPROACHES TO VERIFY AI ASSIST

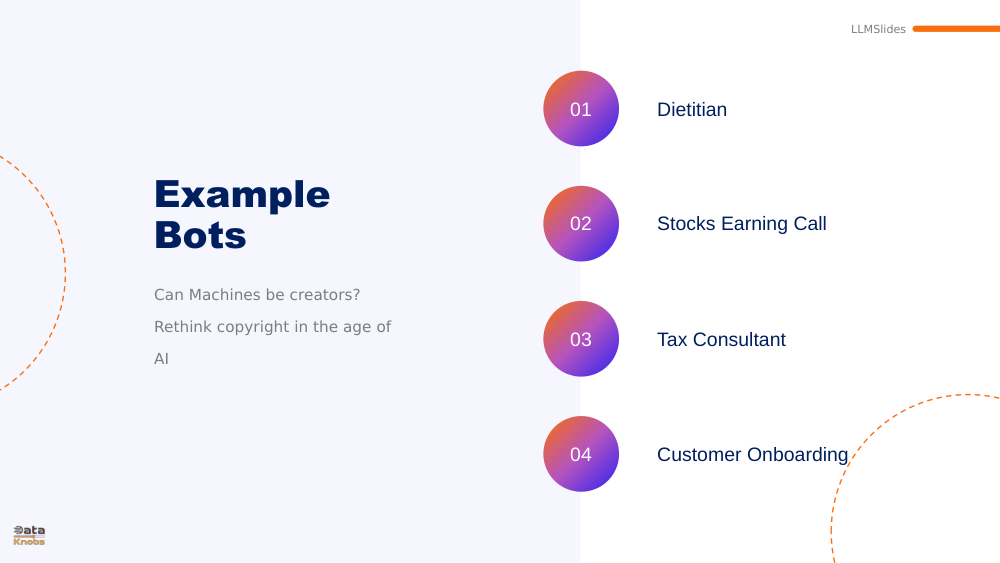

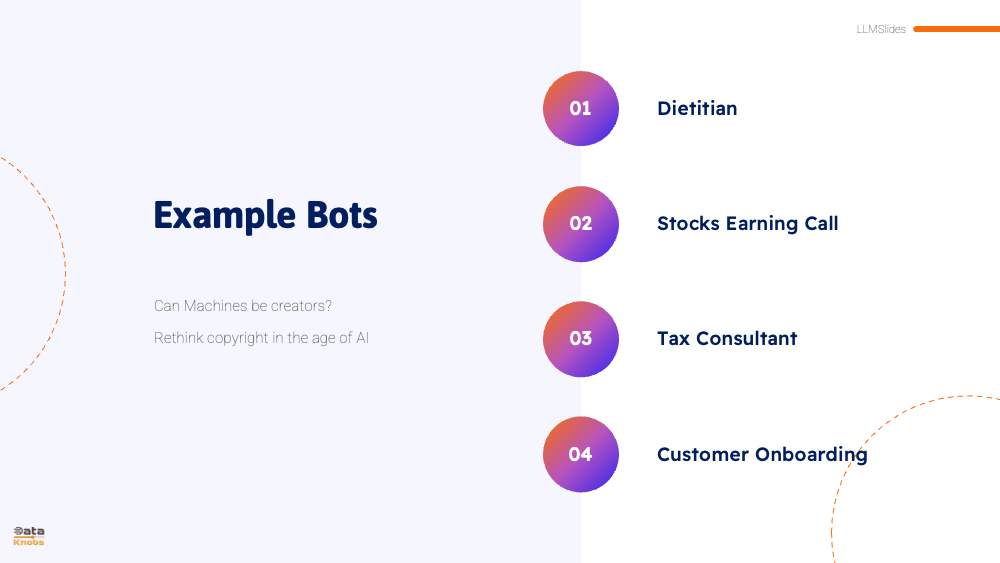

EXAMPLE BOT ASSISTANTS

EXAMPLE BOT ASSISTANTS
EXAMPLE BOT ASSISTANTS

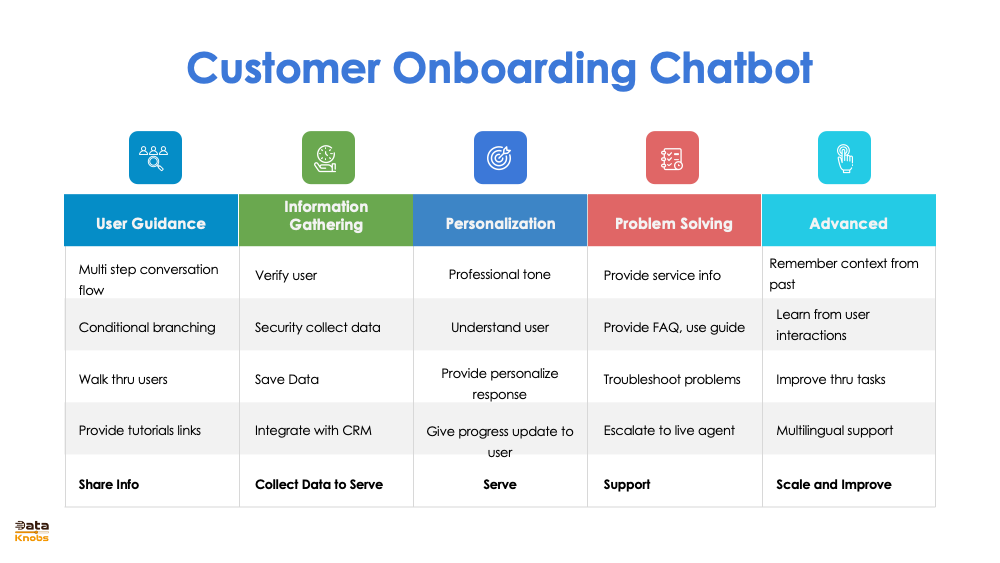

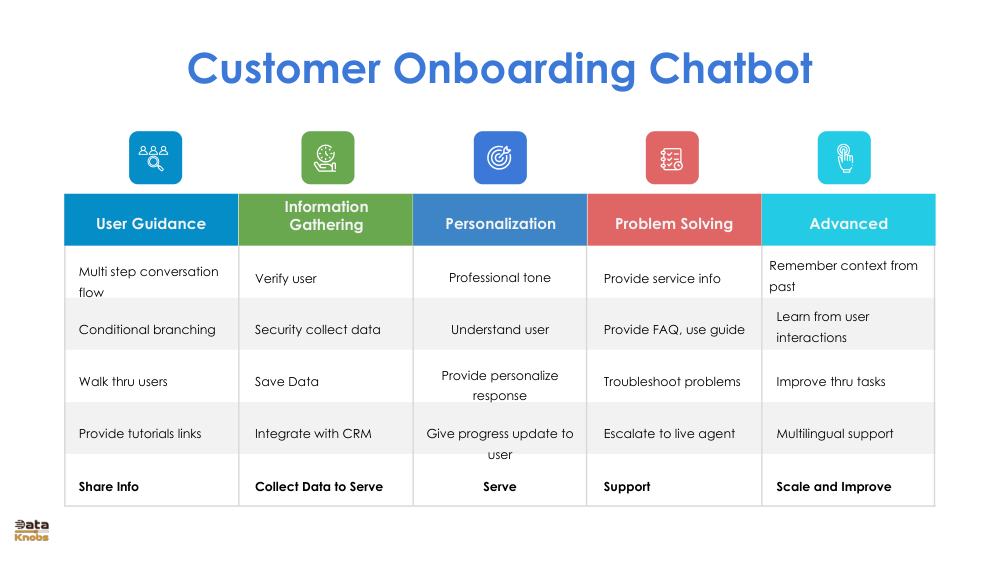

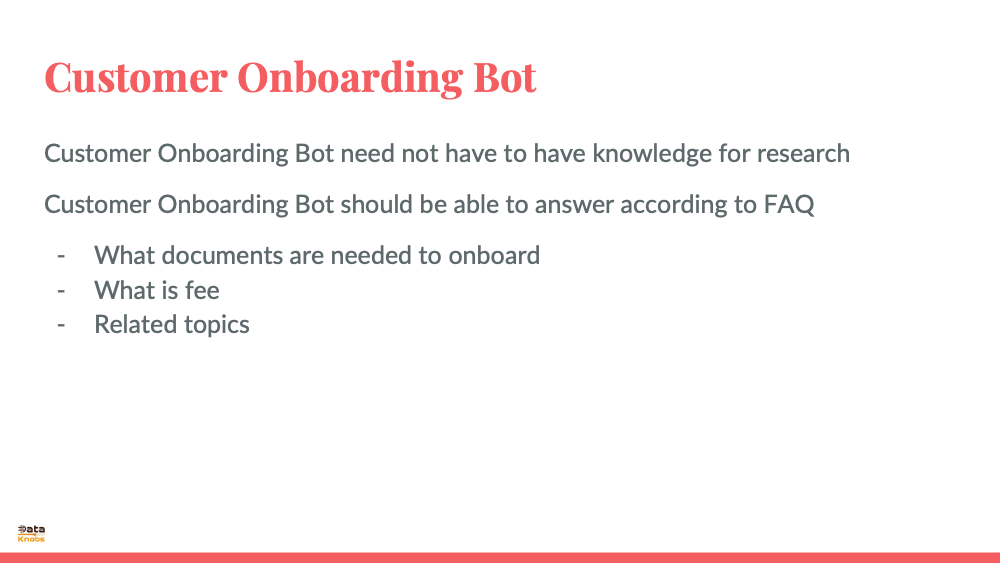

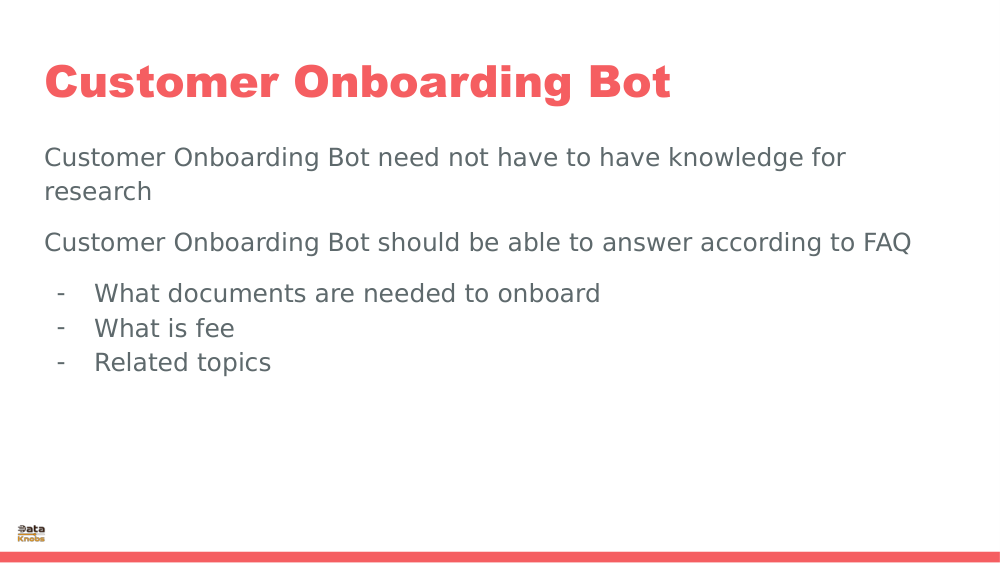

CUSTOMER ONBOARDING BOT

CUSTOMER ONBOARDING BOT
CUSTOMER ONBOARDING BOT

CUSTOMER ONBOARDING AI ASSISAT

CUSTOMER ONBOARDING AI ASSISAT
CUSTOMER ONBOARDING AI ASSISAT

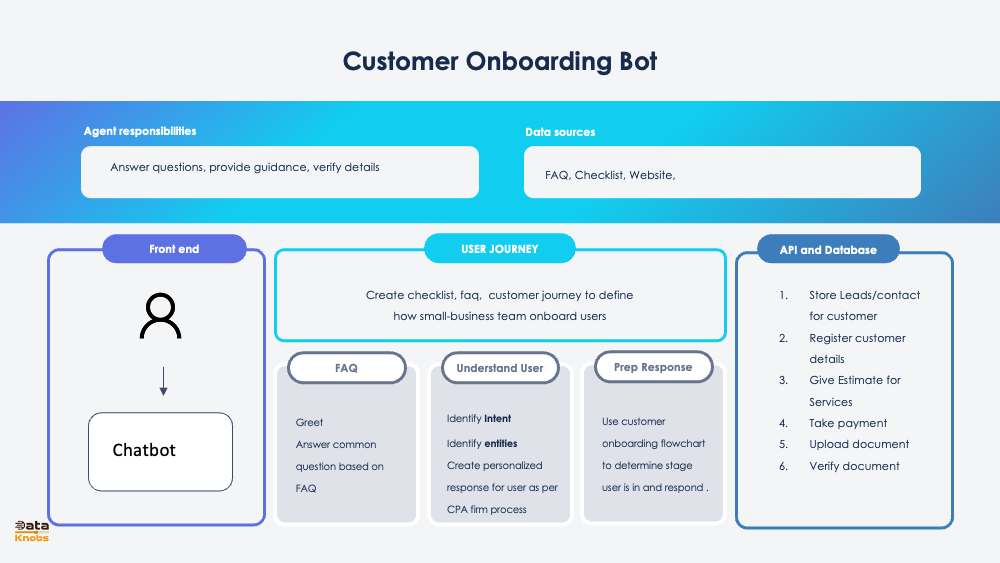

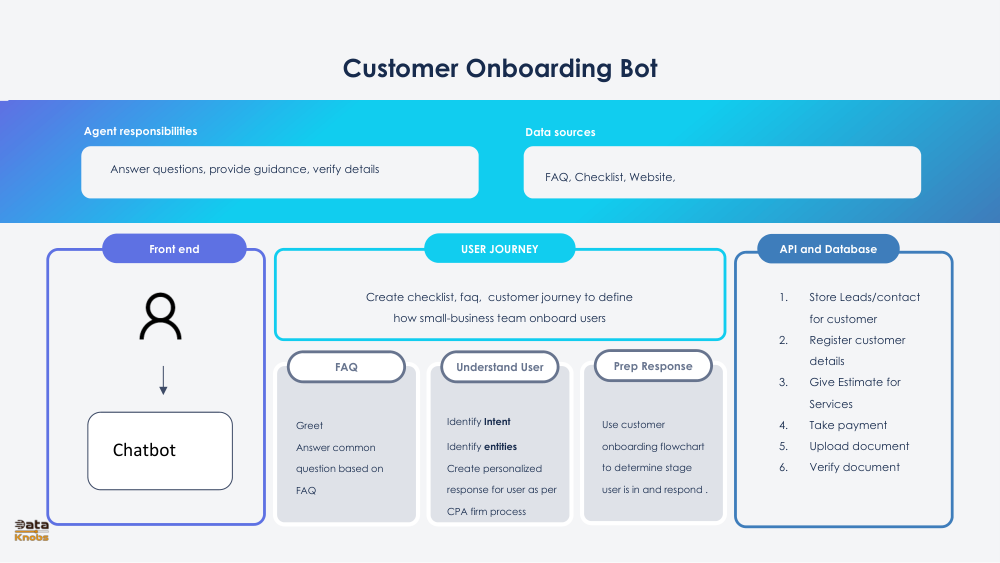

ARCHITECTURE SLIDE FOR CUSTOME

ARCHITECTURE SLIDE FOR CUSTOME
ARCHITECTURE SLIDE FOR CUSTOME

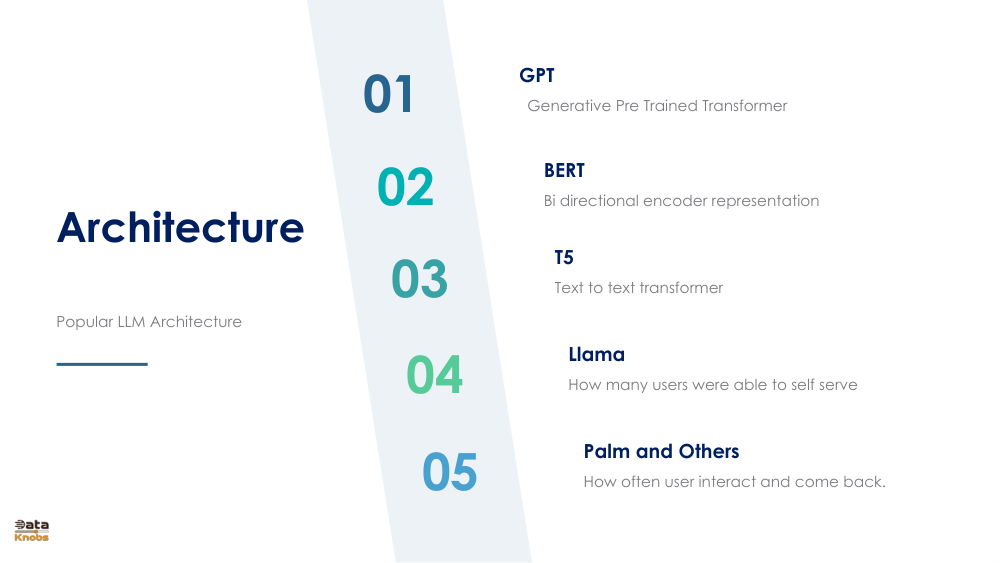

SLIDE59

SLIDE59
SLIDE59

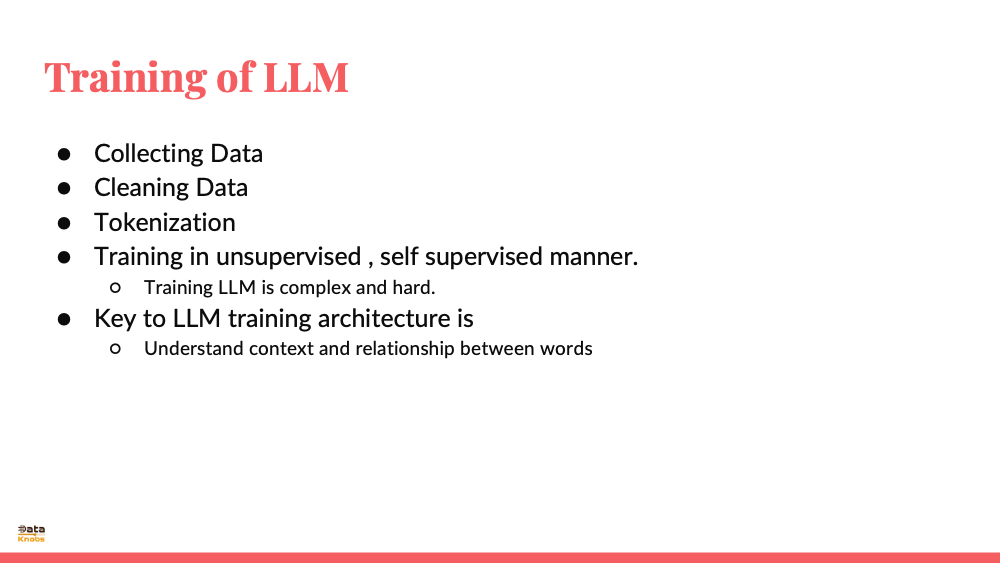

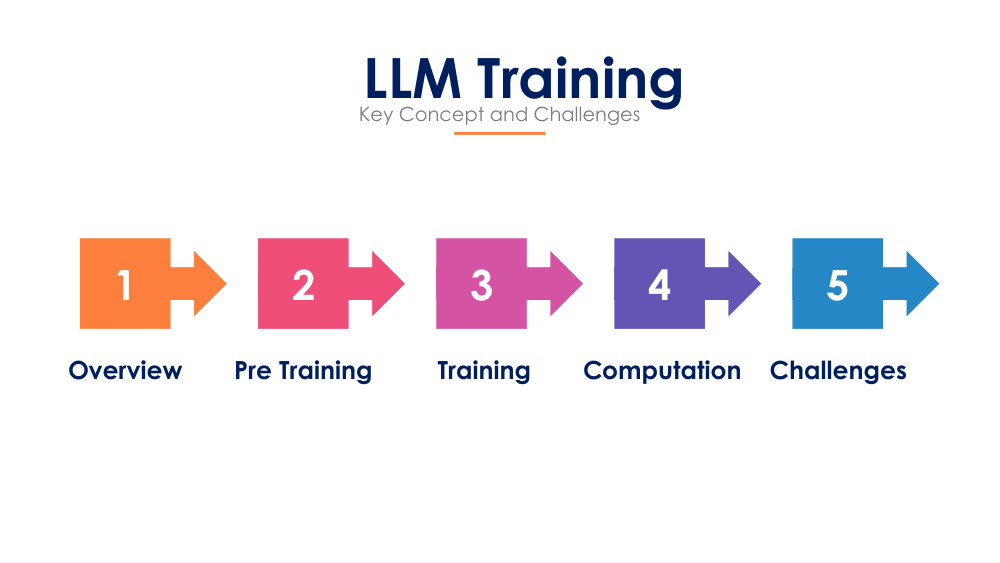

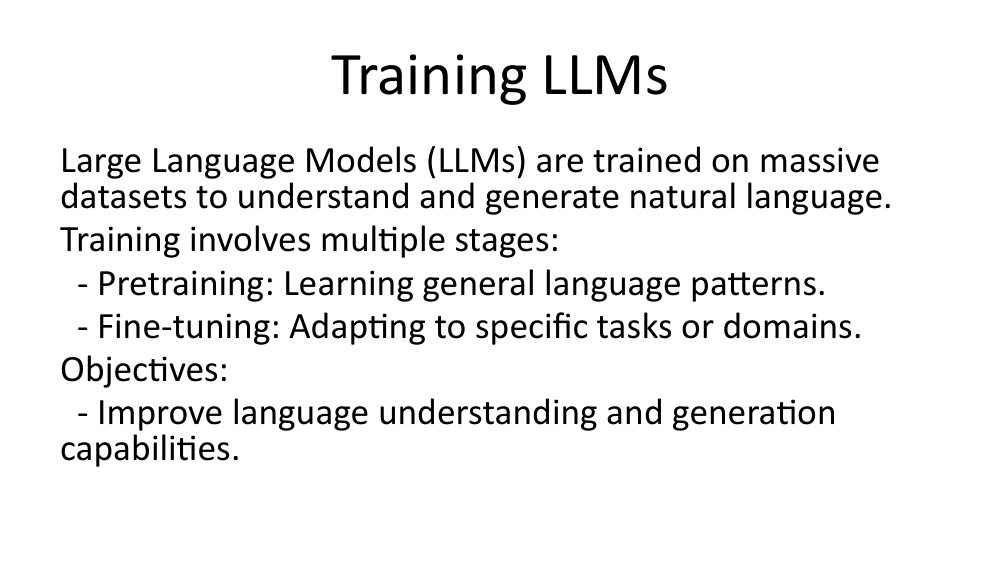

LLM TRAINING STEPS

LLM TRAINING STEPS
LLM TRAINING STEPS

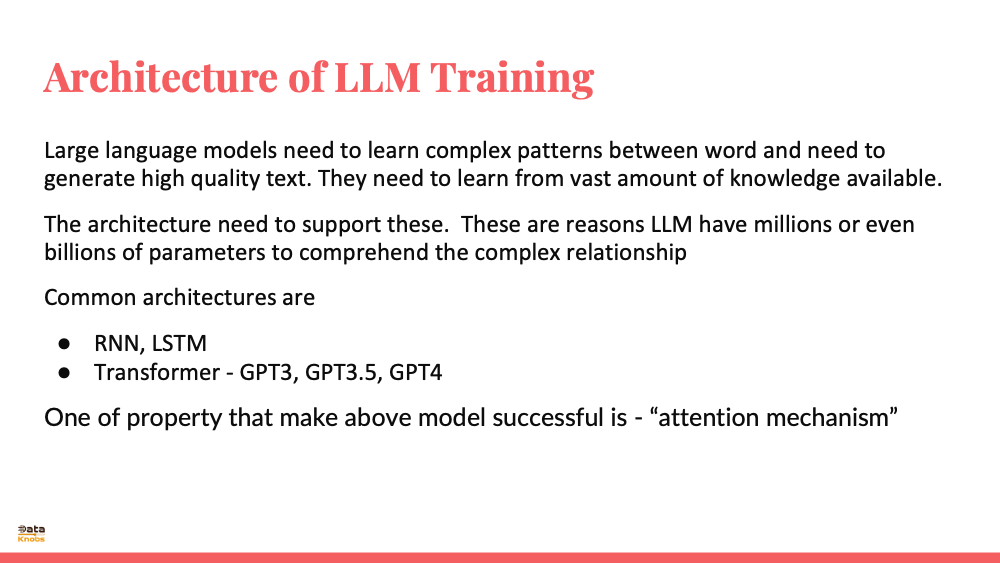

ARCHITECTURE LLM TRAINING

ARCHITECTURE LLM TRAINING
ARCHITECTURE LLM TRAINING

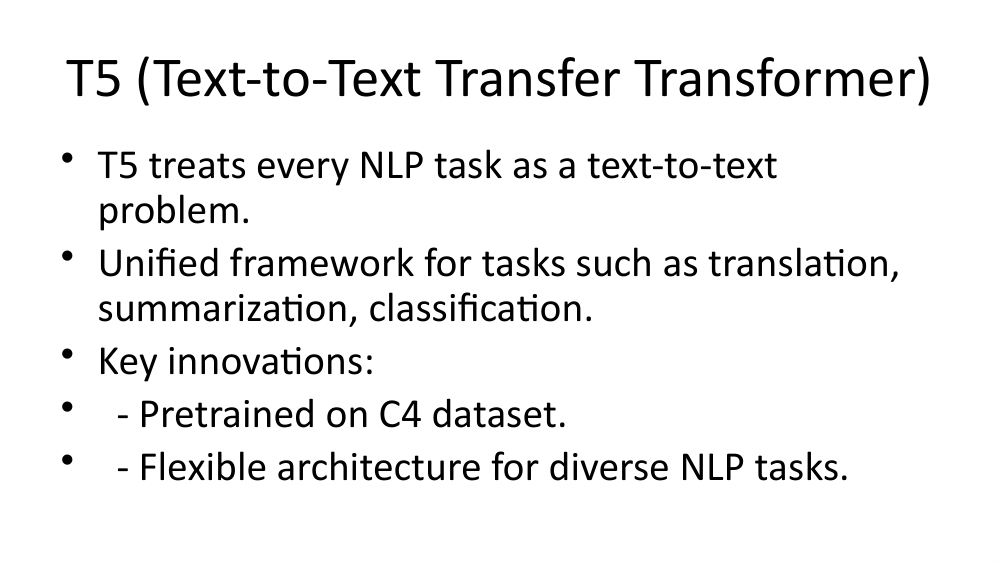

SLIDE62

SLIDE62
SLIDE62

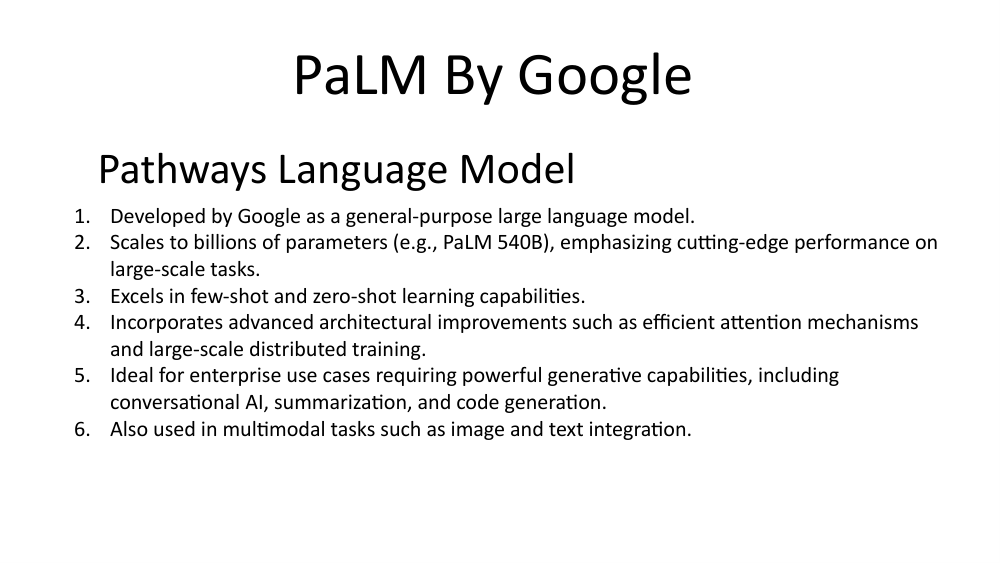

SLIDE63

SLIDE63
SLIDE63

SLIDE64

SLIDE64
SLIDE64

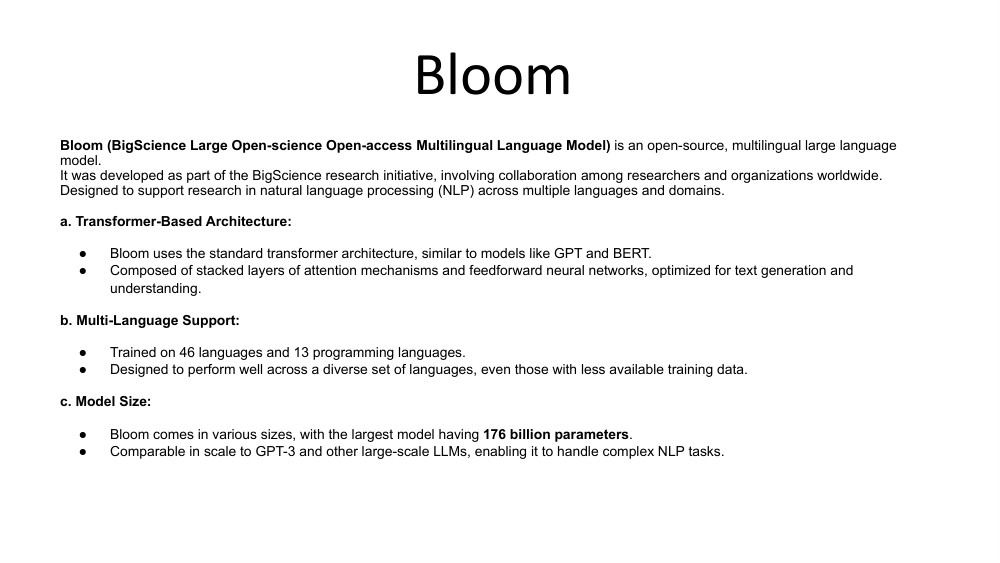

SLIDE65

SLIDE65
SLIDE65

SLIDE66

SLIDE66
SLIDE66

SLIDE67

SLIDE67
SLIDE67

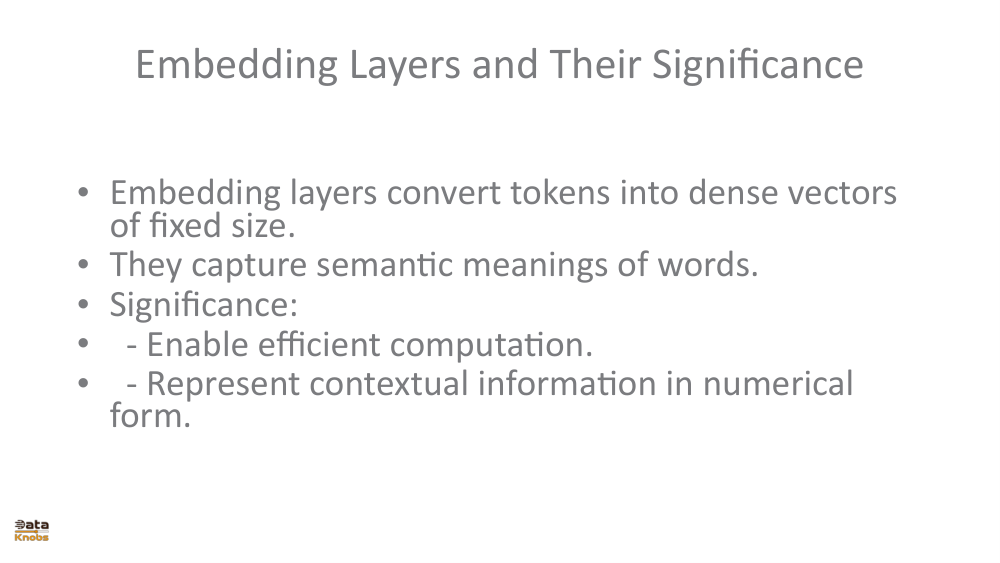

SLIDE68

SLIDE68
SLIDE68

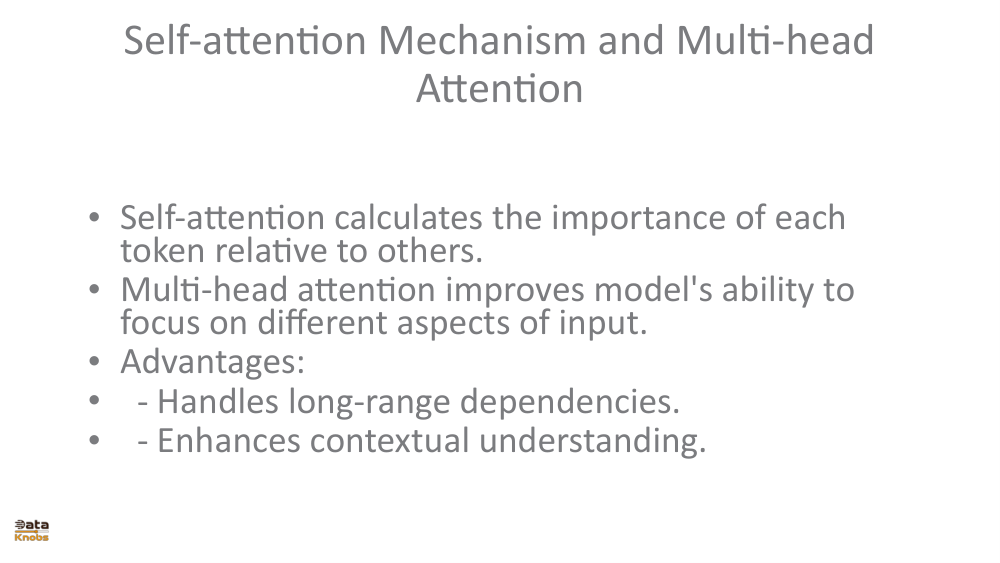

SLIDE69

SLIDE69
SLIDE69

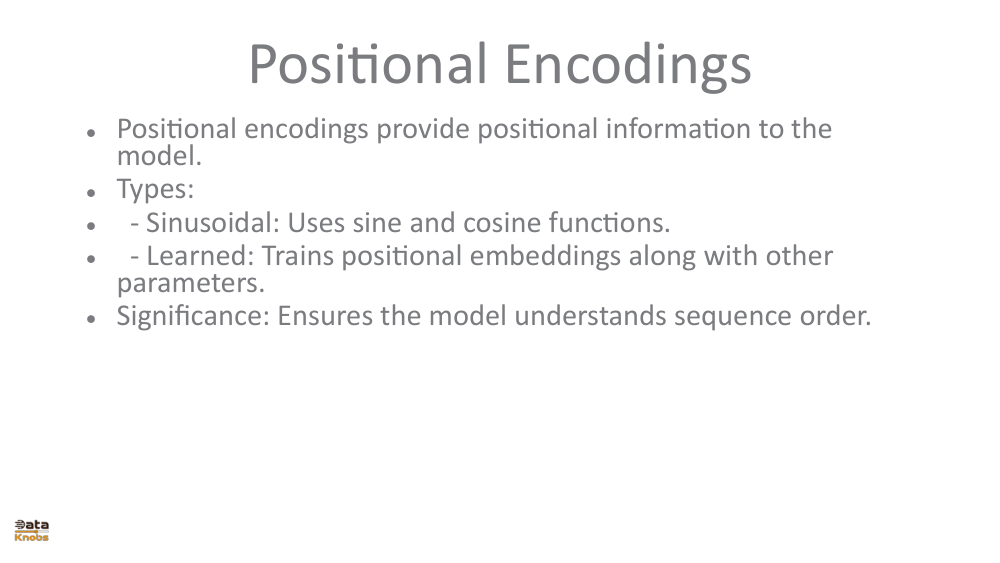

SLIDE70

SLIDE70
SLIDE70

SLIDE71

SLIDE71
SLIDE71

SLIDE72

SLIDE72
SLIDE72

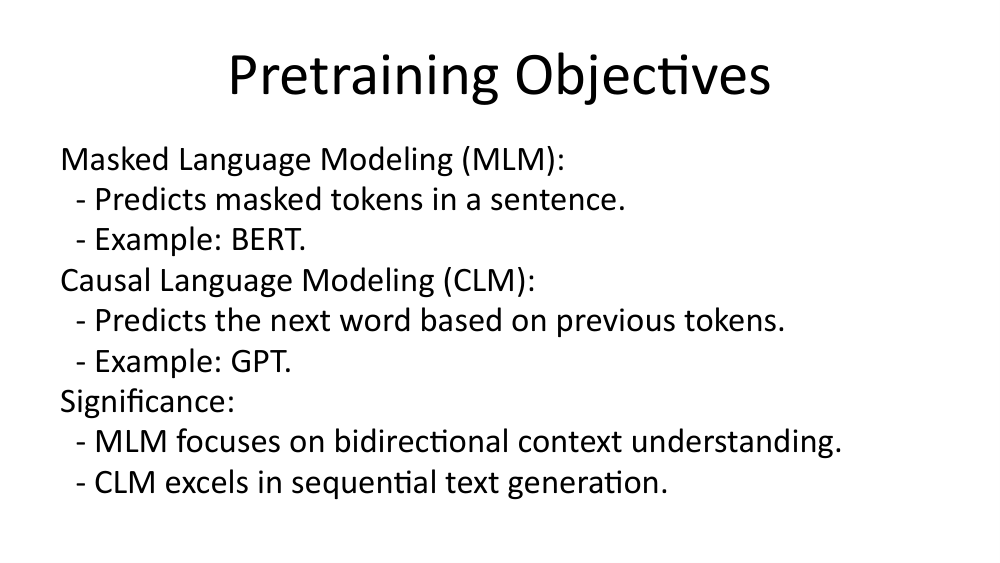

SLIDE73

SLIDE73
SLIDE73

SLIDE74

SLIDE74
SLIDE74

SLIDE75

SLIDE75
SLIDE75

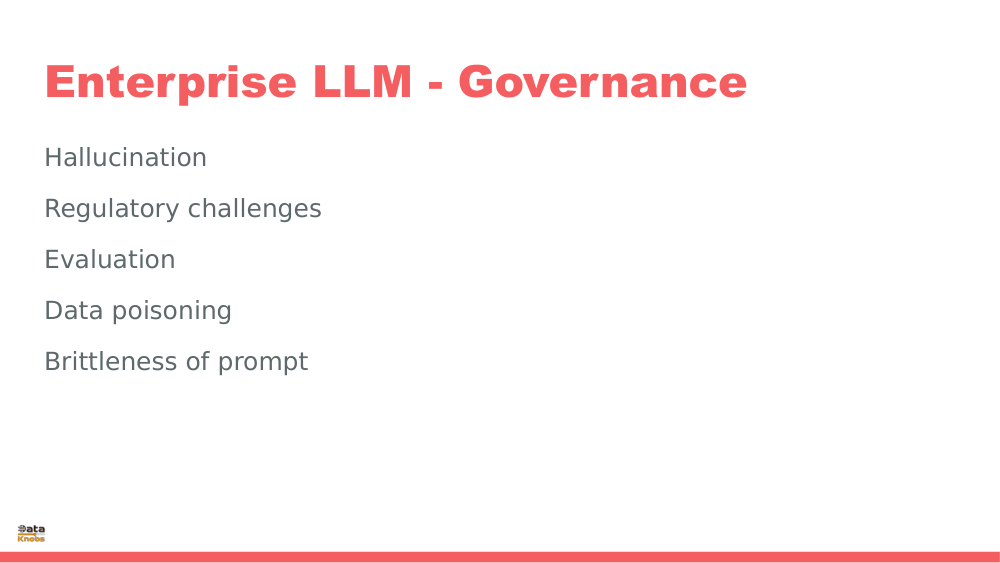

SLIDE76

SLIDE76
SLIDE76

SLIDE77

SLIDE77
SLIDE77

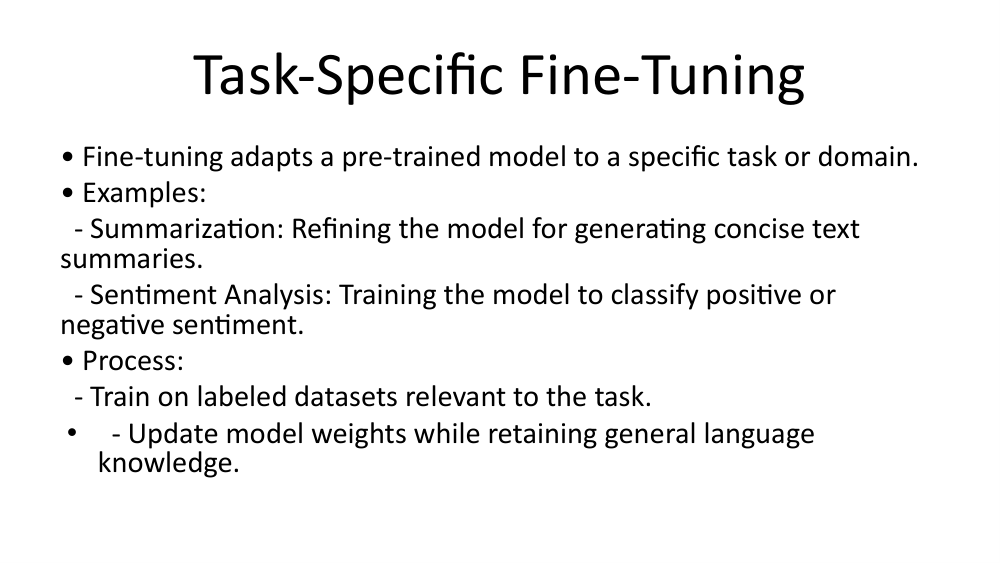

SLIDE78

SLIDE78
SLIDE78

SLIDE79

SLIDE79
SLIDE79

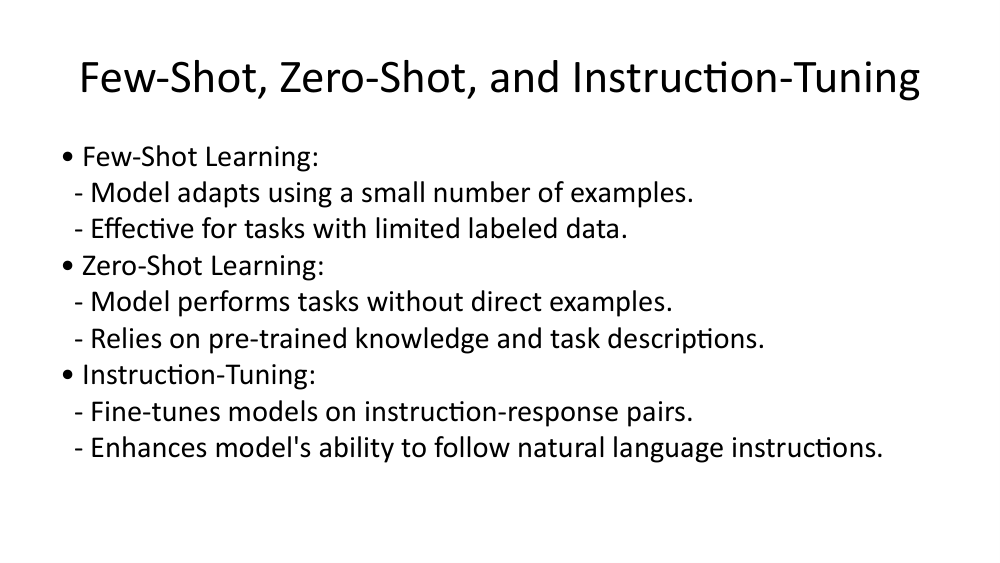

SLIDE80

SLIDE80
SLIDE80

SLIDE81

SLIDE81
SLIDE81

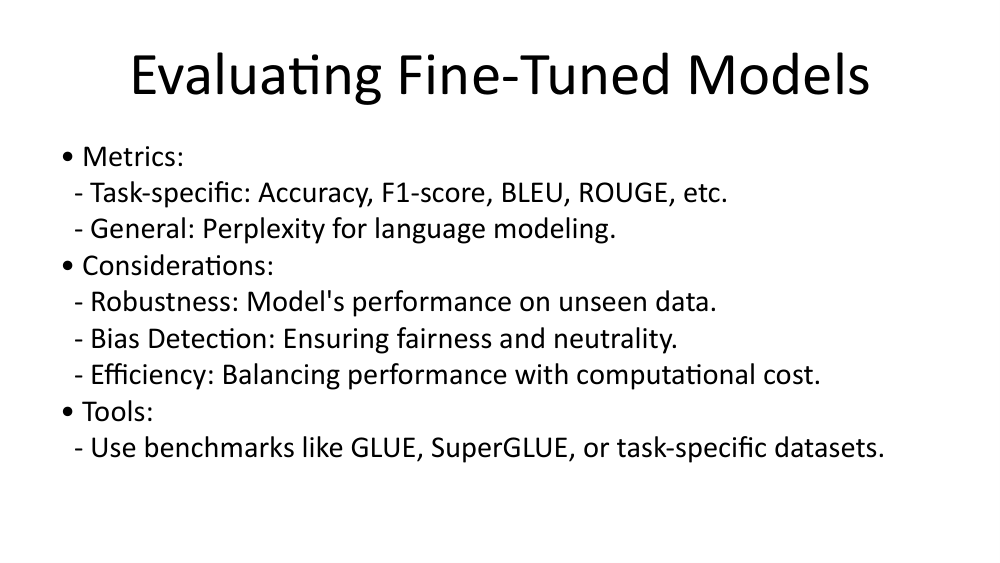

SLIDE82

SLIDE82
SLIDE82

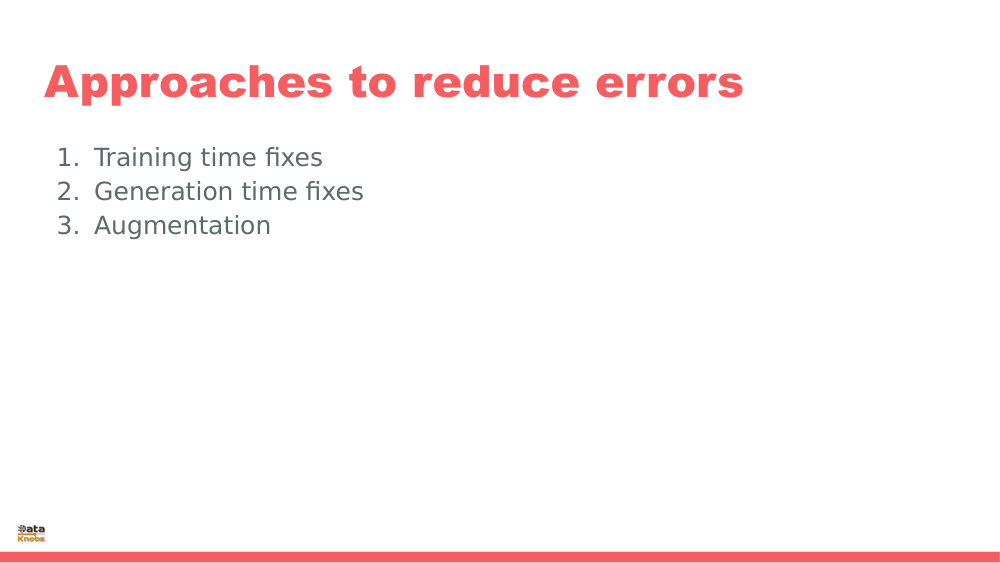

SLIDE83

SLIDE83
SLIDE83

SLIDE84

SLIDE84
SLIDE84

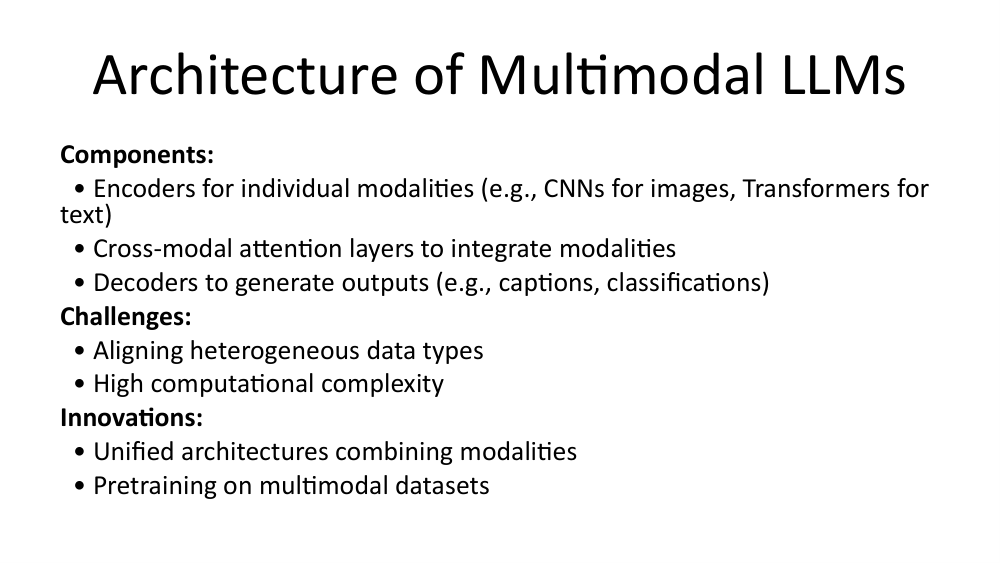

SLIDE85

SLIDE85
SLIDE85

SLIDE86

SLIDE86
SLIDE86

SLIDE87

SLIDE87
SLIDE87

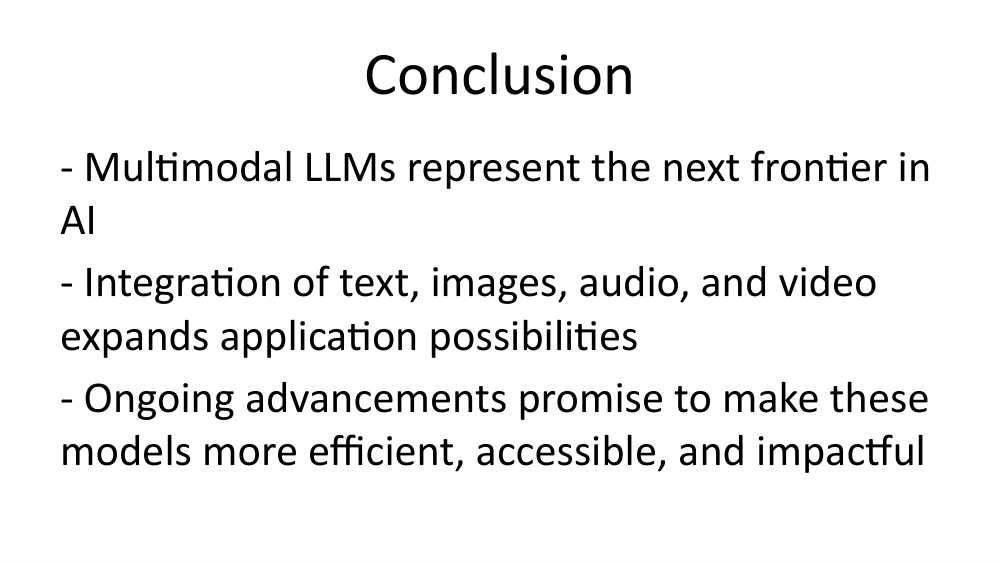

SLIDE88

SLIDE88
SLIDE88

SLIDE89

SLIDE89
SLIDE89

SLIDE90

SLIDE90
SLIDE90

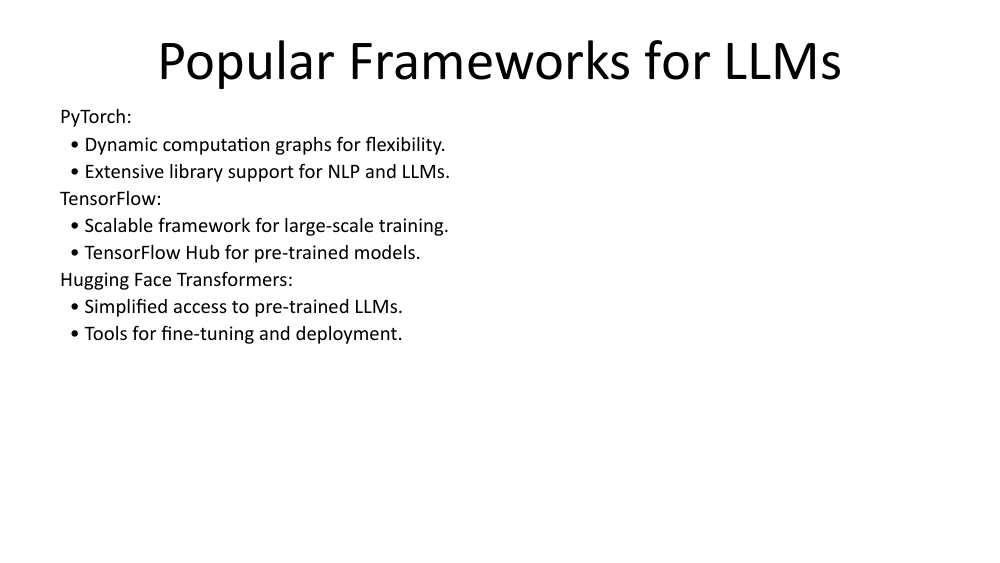

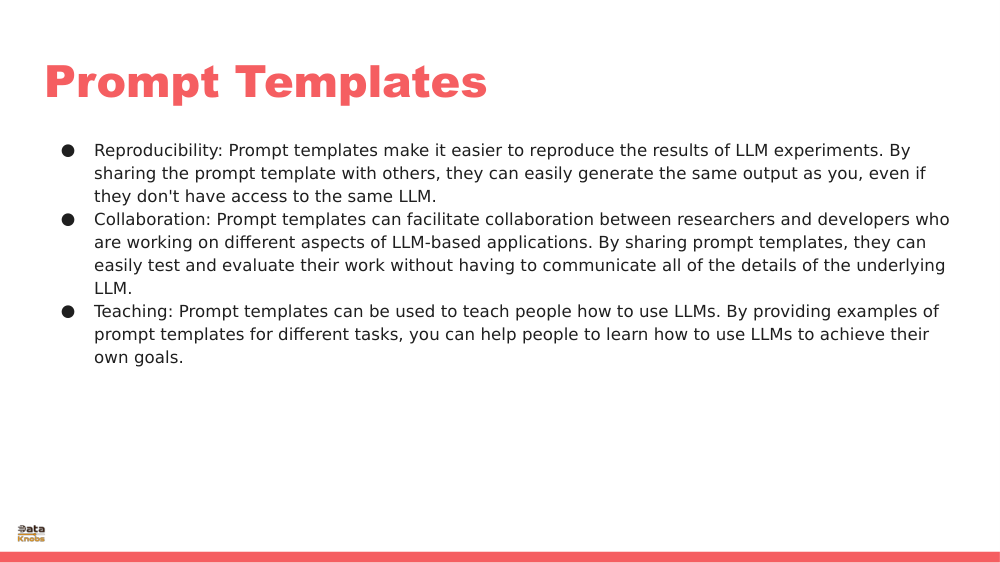

SLIDE91

SLIDE91
SLIDE91

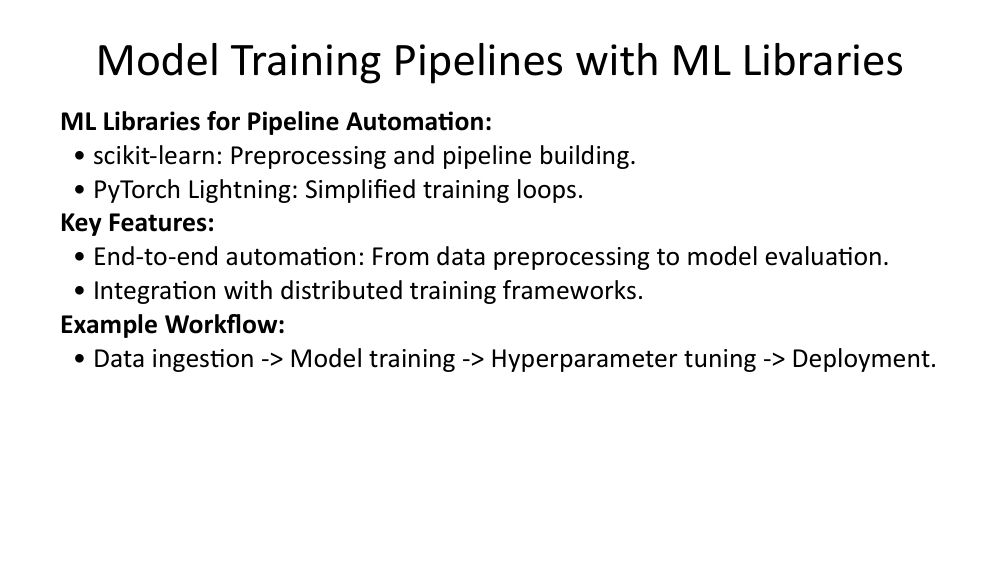

SLIDE92

SLIDE92
SLIDE92

SLIDE93

SLIDE93
SLIDE93

SLIDE94

SLIDE94
SLIDE94

SLIDE95

SLIDE95
SLIDE95

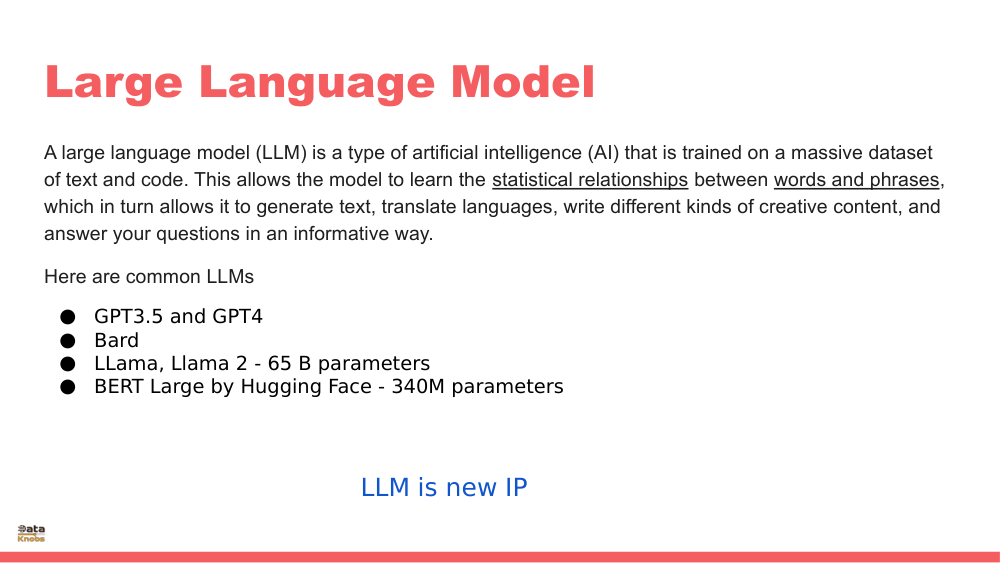

Large Language Models (LLMs)


LLMs are a type of artificial intelligence (AI) capable of processing and generating human-like text in response to a wide range of prompts and questions. Trained on massive datasets of text and code, they can perform various tasks such as:

Generating different creative text formats: poems, code, scripts, musical pieces, emails, letters, etc.
Answering open ended, challenging, or strange questions in an informative way: drawing on their internal knowledge and understanding of the world.
Translating languages: seamlessly converting text from one language to another.
Writing different kinds of creative content: stories, poems, scripts, musical pieces, etc., often indistinguishable from human-written content.

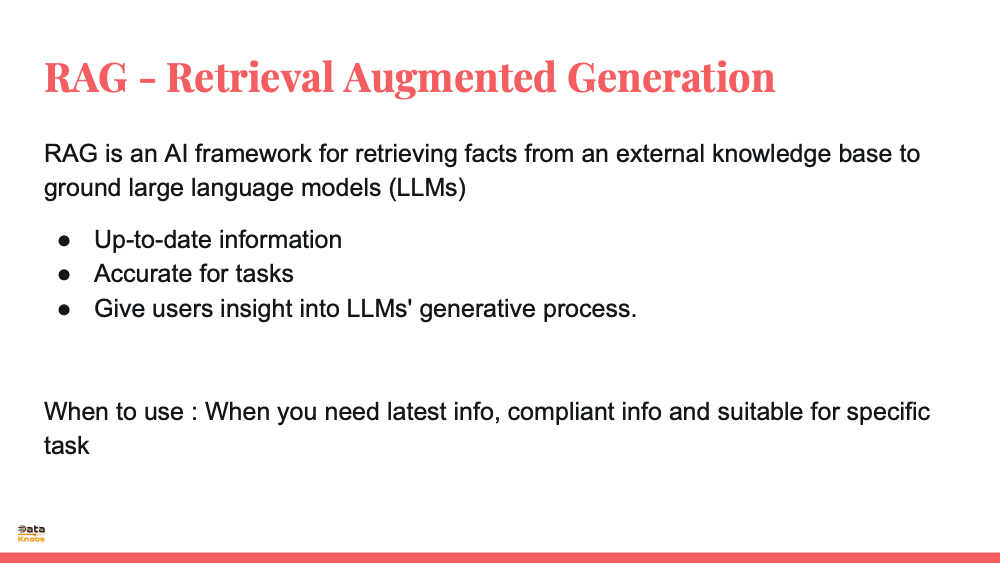

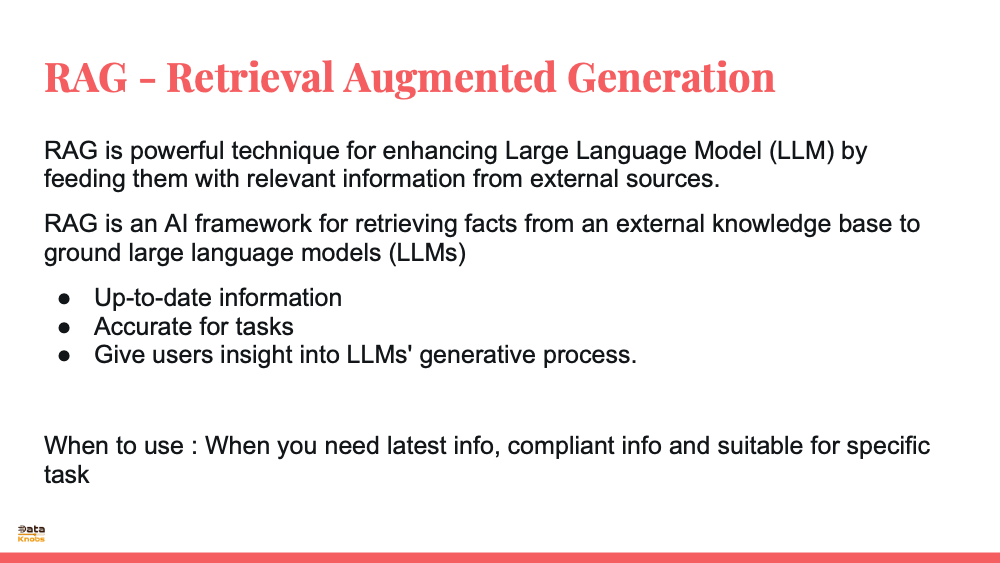

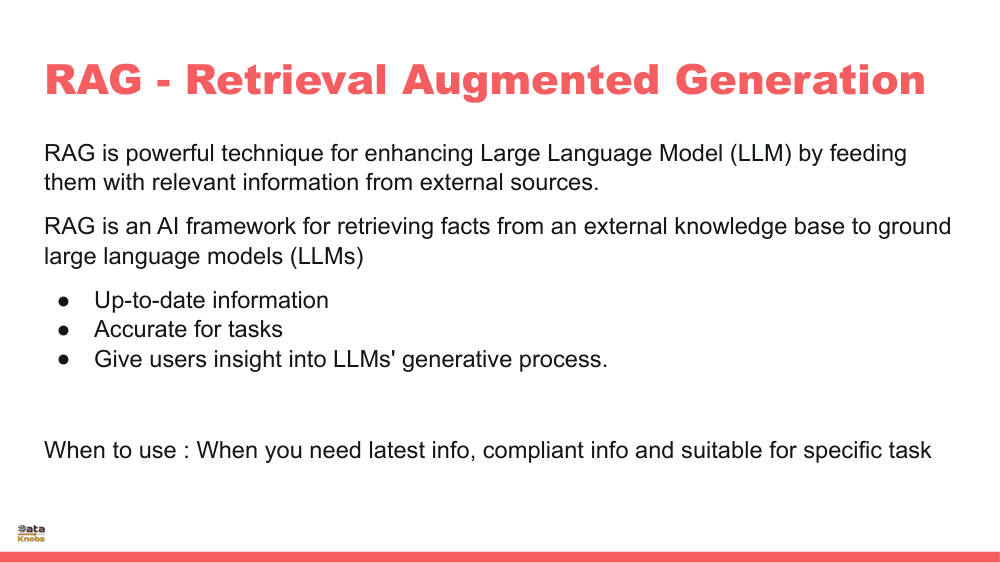

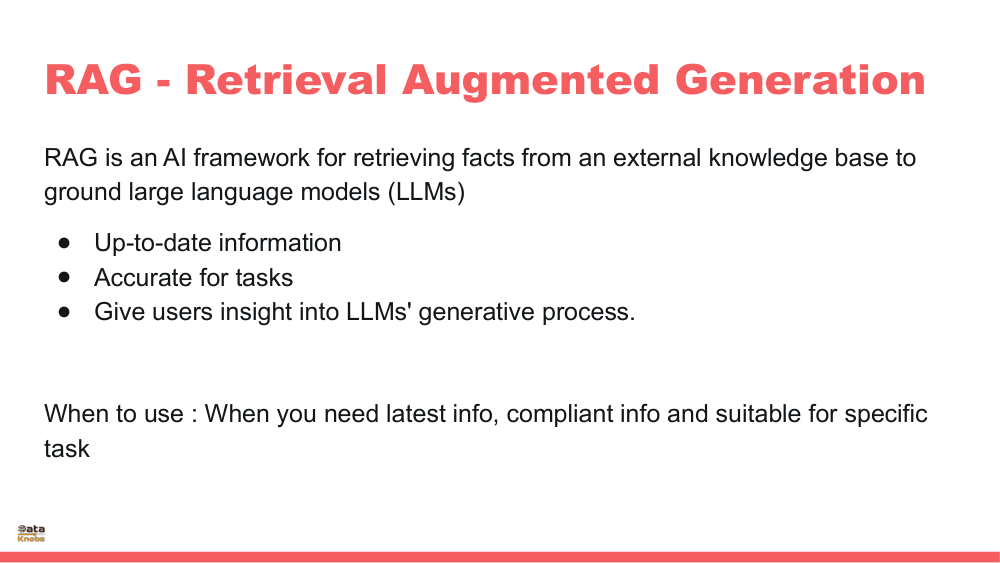

Retrieval Augmented Generation (RAG)


RAG is a novel approach that combines the strengths of LLMs with external knowledge sources. It works by:

Retrieval: When given a prompt, RAG searches through an external database of relevant documents to find information related to the query.
Augmentation: The retrieved information is then used to enrich the context provided to the LLM. This can be done by incorporating facts, examples, or arguments into the prompt.
Generation: Finally, the LLM uses the enhanced context to generate a response that is grounded in factual information and tailored to the specific query.
RAG offers several advantages over traditional LLM approaches:

Improved factual accuracy: By anchoring responses in real-world data, RAG reduces the risk of generating false or misleading information.
Greater adaptability: As external knowledge sources are updated, RAG can access the latest information, making it more adaptable to changing circumstances.
Transparency: RAG facilitates a clear understanding of the sources used to generate responses, fostering trust and accountability.
However, RAG also has its challenges:

Data quality: The accuracy and relevance of RAG's outputs depend heavily on the quality of the external knowledge sources.
Retrieval efficiency: Finding the most relevant information from a large database can be computationally expensive.
Integration complexity: Combining two different systems (retrieval and generation) introduces additional complexity in terms of design and implementation.

Prompt Engineering


Prompt engineering is a crucial technique for guiding LLMs towards generating desired outputs. It involves crafting prompts that:

Clearly define the task: Specify what the LLM should do with the provided information.
Provide context: Give the LLM enough background knowledge to understand the prompt and generate an appropriate response.
Use appropriate language: Frame the prompt in a way that aligns with the LLM's capabilities and training data.



Advantage of using RAG


Better Accuracy: If factual correctness is crucial, RAG can be fantastic. It retrieves information from external sources, allowing the AI assistant to double-check its responses and provide well-sourced answers.
Domain Knowledge: Imagine an AI assistant for medical diagnosis or legal or up to date tax laws. RAG can access medical databases to enhance its responses and ensure they align with established medical knowledge.
Reduce Hallucination: LLMs can sometimes fabricate information, a phenomenon called hallucination in which they make up things. RAG mitigates this risk by grounding the response in retrieved data.
Building Trust: By citing sources, RAG fosters trust with users. Users can verify the information and see the reasoning behind the response.

Disadvantages of using RAG


Speed is Crucial: RAG involves retrieving information, which can add a slight delay to the response. If real-time response is essential, a pre-trained LLM might be sufficient.
Limited Context: RAG works best when the user's query and context are clear. If the conversation is ambiguous, retrieved information might not be relevant.
Privacy Concerns: If the AI assistant deals with sensitive user data, RAG might raise privacy concerns. External retrievals could potentially expose user information.



When to finetune LLM


Consider fine-tuning a large language model (LLM) when you want it to perform better at a specific task or adapt to a particular domain. Here are exampple scenarios where fine-tuning is optimal

Domain-Specific Nuances: If you need an LLM for financial analysis, legal document or on medical document - finething is better. Example word capital has meaning in finance domain. While a pre-trained LLM might understand language, it won't grasp legal, finance or medical specific terms or jargons. Fine-tuning on finance Q&A, document or legal documents will imrpove the LLM to that specific domain.

Instruction Fine-Tuning: This is a recent advancement where you provide the LLM with instructions or demonstrations alongside training data. This can be useful for tasks where you want the LLM to follow a certain style or format, like writing safety instructions in a specific tone.

Specialized Tasks: Imagine you want an LLM to write different kinds of creative content, like poems or code. Fine-tuning on a dataset of poems can improve its poetry generation skills, while fine-tuning on code samples can enhance its code writing abilities.

However, fine-tuning isn't always the right answer. Here are examples when you should not do fine tuning. In fact you should first use standard LLM, prompt engineering. Then try RAG. Later consider fine tuning.

General Use Cases: If you need a broad LLM for various tasks, a pre-trained model will do better job. Pre-trained models are versatile, trained on diverse data and can handle many tasks well enough without specific fine-tuning.

Limited Data: Fine-tuning works well when you have lot of data related to your specific task or domain. If you only add few records which most demo shows - fine-tuning might not be effective and could even harm the model's performance.

Knowledge Integration: If your goal is to add propietary/latest/specific knowledge to the LLM, retrieval-augmented-generation (RAG)is better approach. In RAG LLM retrieves relevant information from a knowledge base. You can use out of box RAG. You can further optimize it by smmarizing knowledge,, creating embeddings with meta data etc.

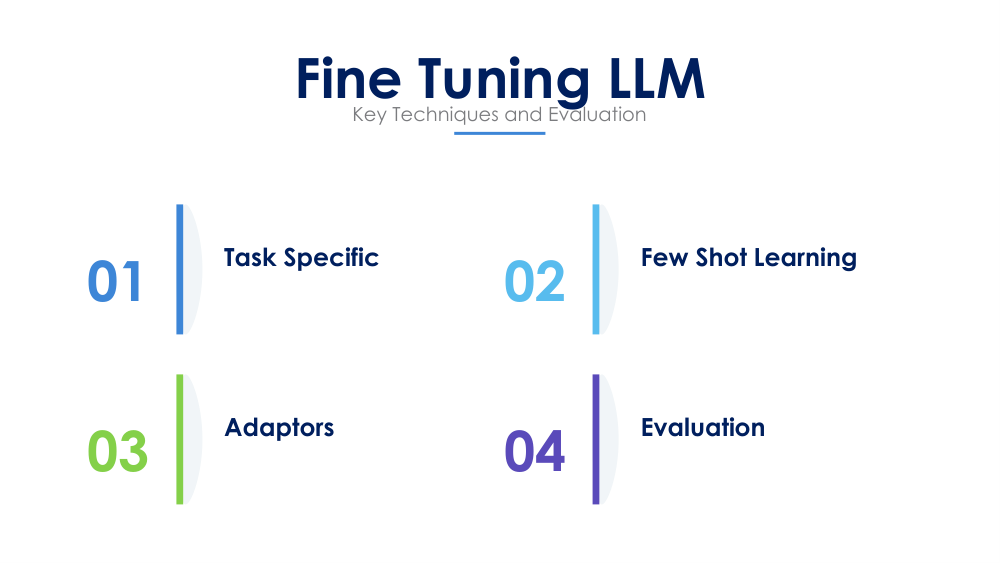

Fine Tuning Steps



How can LLMs be fine-tuned for summarization?
LLMs (Large Language Models) like GPT-3 can be fine-tuned for summarization using the following approaches:
Supervised training - The simplest approach is to fine-tune the LLM using a large dataset of text-summary pairs. The model is trained to generate the corresponding summary given the input text.
This requires a sizable supervised dataset, which can be expensive to create. Public datasets like CNN/DailyMail can be used.

Self-supervised training - The LLM is trained using the original text as input and the first few sentences as the "summary". This creates weak supervision from the data itself.
The model is then fine-tuned on a smaller set of human-written summaries to improve accuracy. This approach requires less labeled data.

Reinforcement learning - The LLM is first trained autoencoding - to reproduce the input text. Then, rewards are given based on the quality and conciseness of the generated summary.
The model learns to generate better summaries through trial-and-error to maximize these rewards. However, this requires defining a good reward function.

Filtering and post-processing - Generated summaries from the LLM can be filtered and refined using techniques like:
• Extracting sentences with the highest similarity to human references • Removing repetitive sentences • Combining overlapping content into a single sentence, etc.
This requires minimal fine-tuning of the base LLM but provides less control over the summary style.

Prompting - The LLM can be "prompted" to generate a summary using natural language instructions. For example:
In 2-3 short paragraphs, summarize the main points of the following text:
This relies more on the pre-trained LLM abilities and requires less labeled data. But accuracy tends to be lower.
So in short, there are a variety of approaches to fine-tune LLMs for summarization - from fully supervised to minimally supervised. The choice depends on the available data, required accuracy and custom need.

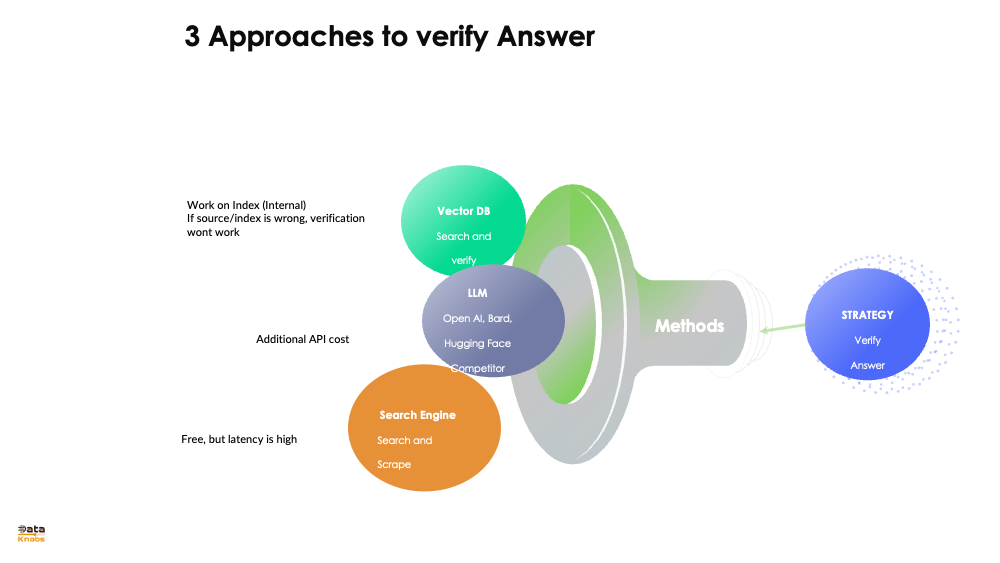

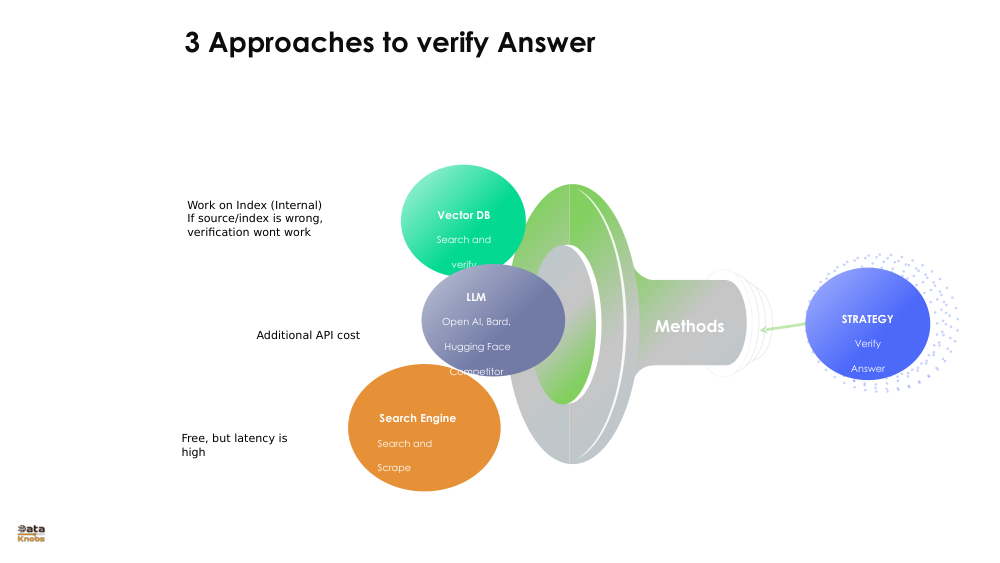

Verify LLM and AI Assistant Answers

If you are using AI Assistant, you should cross check facts/number given by AI Assistant

Check in Vecor DB: If you are using Vector DB/RAG, you can check what value RAG provide. This will help to ensure that response generated by RAG is in line with value stored in vector DB.
Use Second LLM: Other/aditional approach is you can ask a smaller question from second or same LLM and se what answer you get e.g. if there is 1 page of text and it says company Dataknobs has revenue of $78M, you can ask a smaller question "how much revneue Dataknobs has". However you need to consider additional cost of 2nd call? You may have more than one fact and multiple calls may be needed for each fact.
Call to Search Engine: You can run a query on search engine programmatically and chec response. However depending on domain this result may or may not work. It may require parsing result from search engine.

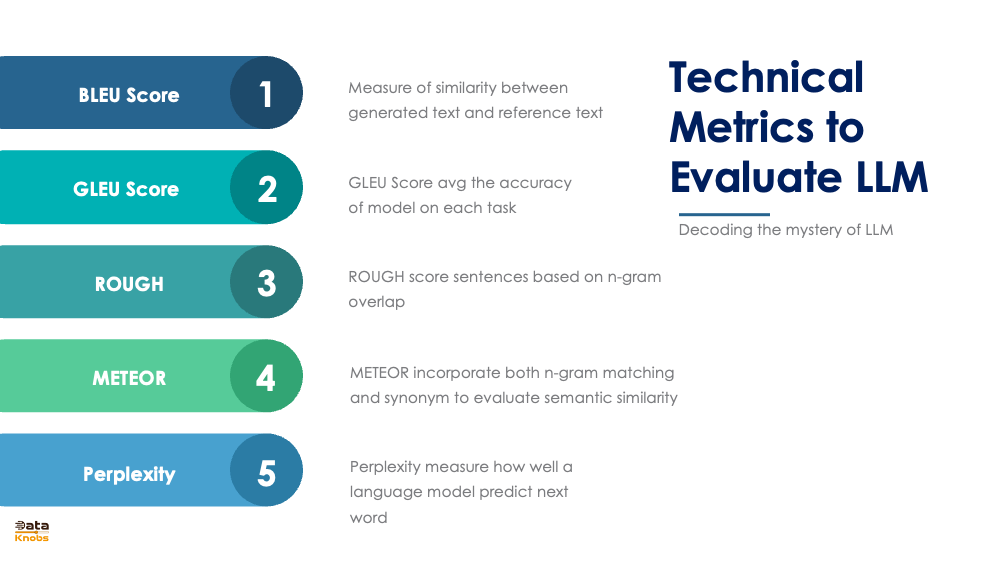

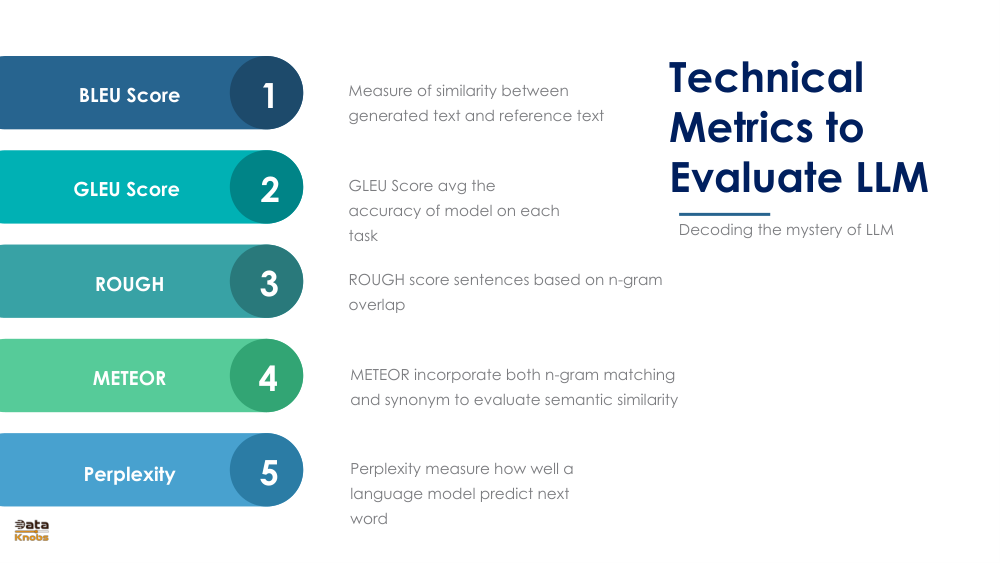

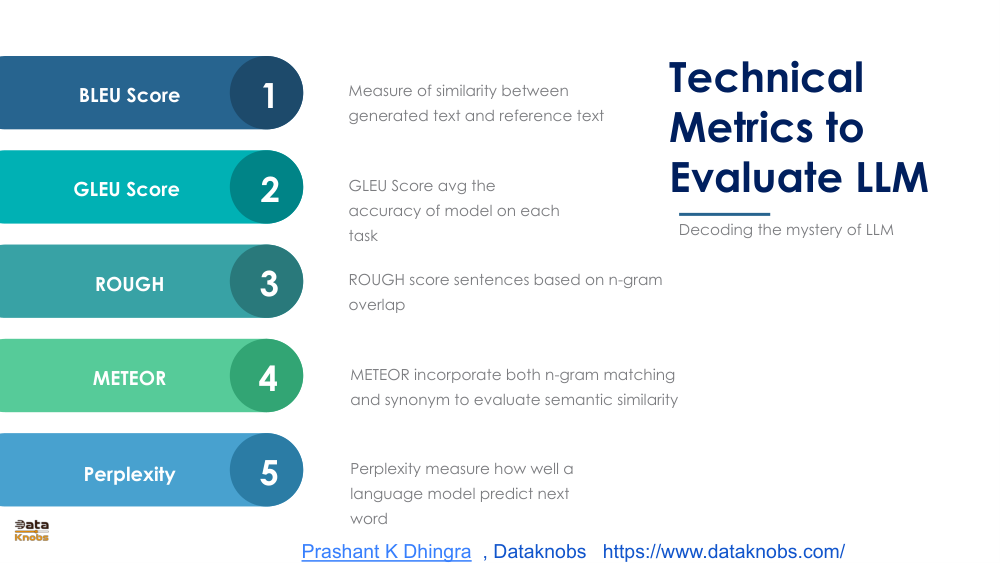

How to evaluate LLM


Method Description
Perplexity Perplexity measures how well a language model predicts a sample of text. Lower perplexity indicates better performance.
BLEU Score BLEU (Bilingual Evaluation Understudy) Score is commonly used to evaluate the quality of machine-translated text by comparing it to human-generated translations.
ROUGE Score ROUGE (Recall-Oriented Understudy for Gisting Evaluation) Score is used to evaluate the quality of summaries produced by a language model by comparing them to reference summaries.
Human Evaluation Human evaluation involves having human judges assess the quality of text generated by the language model based on criteria such as fluency, coherence, and relevance.
Word Error Rate (WER) WER measures the difference between the words generated by the language model and the reference text. Lower WER indicates better performance.





100K-tokens    Agenda    Ai-assistant-architecture    Ai-assistant-building-blocks    Ai-assistant-custom-model    Ai-assistant-evaluation-metric    Ai-assistant-finetune-model    Ai-assistant-on-your-data    Ai-assistant-tech-stack    Ai-assistant-wrapper

Dataknobs blog

10 Use Cases Built

10 Use Cases Built By Dataknobs

Dataknobs has developed a wide range of products and solutions powered by Generative AI (GenAI), Agent AI, and traditional AI to address diverse industry needs. These solutions span finance, healthcare, real estate, e-commerce, and more. Click on to see in-depth look at these use cases - Stocks Earning Call Analysis, Ecommerce Analysis with GenAI, Financial Planner AI Assistant, Kreatebots, Kreate Websites, Kreate CMS, Travel Agent Website, Real Estate Agent etc.

AI Agent Tutorial

Agent AI Tutorial

Here are slides and AI Agent Tutorial. Agentic AI refers to AI systems that can autonomously perceive, reason, and take actions to achieve specific goals without constant human intervention. These AI agents use techniques like reinforcement learning, planning, and memory to adapt and make decisions in dynamic environments. They are commonly used in automation, robotics, virtual assistants, and decision-making systems.

Build Dataproducts

How Dataknobs help in building data products

Building data products using Generative AI (GenAI) and Agentic AI enhances automation, intelligence, and adaptability in data-driven applications. GenAI can generate structured and unstructured data, automate content creation, enrich datasets, and synthesize insights from large volumes of information. This helps in scenarios such as automated report generation, anomaly detection, and predictive modeling.

AI Agent for Business Analysis

Analyze reports, dashboard and determine To-do

DataKnobs has built an AI Agent for structured data analysis that extracts meaningful insights from diverse datasets such as e-commerce metrics, sales/revenue reports, and sports scorecards. The agent ingests structured data from sources like CSV files, SQL databases, and APIs, automatically detecting schemas and relationships while standardizing formats. Using statistical analysis, anomaly detection, and AI-driven forecasting, it identifies trends, correlations, and outliers, providing insights such as sales fluctuations, revenue leaks, and performance metrics.

KreateHub

Create new knowledge with Prompt library

At its core, KreateHub is designed to enable creation of new data and the generation of insights from existing datasets. It acts as a bridge between raw data and meaningful outcomes, providing the tools necessary for organizations to experiment, analyze, and optimize their data processes.

Build Budget Plan for GenAI

CIO Guide to create GenAI Budget for 2025

CIOs and CTOs can apply GenAI in IT Systems. The guide here describe scenarios and solutions for IT system, tech stack, GenAI cost and how to allocate budget. Once CIO and CTO can apply this to IT system, it can be extended for business use cases across company.

What is KREATE and KreatePro

Kreate - Bring your Ideas to Life

KREATE empowers you to create things - Dataset, Articles, Presentations, Proposals, Web design, Websites and AI Assistants Kreate is a platform inclide set of tools that ignite your creatviity and revolutionize the way you work. KReatePro is enterprise version.

What is KONTROLS

KONTROLS - apply creatvity with responsbility

KONTROLS enable adding guardrails, lineage, audit trails and governance. KOntrols recogizes that different use cases for Gen AI and AI have varying levels of control requirements. Kontrols provide structure to select right controls.

What is KNOBS

KNOBS - Experimentation and Diagnostics

Well defined tunable paramters for LLM API, LLM fine tuning , Vector DB. These parameters enable faster experimentation and diagosis for every state of GenAI development - chunking, embedding, upsert into vector DB, retrievel, generation and creating responses for AI Asistant.

Kreate Articles

Create Articles and Blogs

Create articles for Blogs, Websites, Social Media posts. Write set of articles together such as chapters of book, or complete book by giving list of topics and Kreate will generate all articles.

Kreate Slides

Create Presentations, Proposals and Pages

Design impactful presentation by giving prmpt. Convert your text and image content into presentations to win customers. Search in your knowledbe base of presentations and create presentations or different industry. Publish these presentation with one click. Generate SEO for public presentations to index and get traffic.

Kreate Websites

Agent to publish your website daily

AI powered website generation engine. It empower user to refresh website daily. Kreate Website AI agent does work of reading conent, website builder, SEO, create light weight images, create meta data, publish website, submit to search engine, generate sitemap and test websites.

Kreate AI Assistants

Build AI Assistant in low code/no code

Set up AI Assistant that give personized responss to your customers in minutes. Add RAG to AI assistant with minimal code- implement vector DB, create chunks to get contextual answer from your knowlebase. Build quality dataset with us for fine tuning and training a cusom LLM.

Create AI Agent

Build AI Agents - 5 types

AI agent independently chooses the best actions it needs to perform to achieve their goals. AI agents make rational decisions based on their perceptions and data to produce optimal performance and results. Here are features of AI Agent, Types and Design patterns

Develop data products with KREATE and AB Experiment

Develop data products and check user response thru experiment

As per HBR Data product require validation of both 1. whether algorithm work 2. whether user like it. Builders of data product need to balance between investing in data-building and experimenting. Our product KREATE focus on building dataset and apps , ABExperiment focus on ab testing. Both are designed to meet data product development lifecycle

Innovate with experiments

Experiment faster and cheaper with knobs

In complex problems you have to run hundreds of experiments. Plurality of method require in machine learning is extremely high. With Dataknobs approach, you can experiment thru knobs.

RAG For Unstructred and Structred Data

RAG Use Cases and Implementation

Here are several value propositions for Retrieval-Augmented Generation (RAG) across different contexts: Unstructred Data, Structred Data, Guardrails.

Why knobs matter

Knobs are levers using which you manage output

See Drivetrain appproach for building data product, AI product. It has 4 steps and levers are key to success. Knobs are abstract mechanism on input that you can control.

Our Products

KreateBots

  • Pre built front end that you can configure
  • Pre built Admin App to manage chatbot
  • Prompt management UI
  • Personalization app
  • Built in chat history
  • Feedback Loop
  • Available on - GCP,Azure,AWS.
  • Add RAG with using few lines of Code.
  • Add FAQ generation to chatbot
  • KreateWebsites

  • AI powered websites to domainte search
  • Premium Hosting - Azure, GCP,AWS
  • AI web designer
  • Agent to generate website
  • SEO powered by LLM
  • Content management system for GenAI
  • Buy as Saas Application or managed services
  • Available on Azure Marketplace too.
  • Kreate CMS

  • CMS for GenAI
  • Lineage for GenAI and Human created content
  • Track GenAI and Human Edited content
  • Trace pages that use content
  • Ability to delete GenAI content
  • Generate Slides

  • Give prompt to generate slides
  • Convert slides into webpages
  • Add SEO to slides webpages
  • Content Compass

  • Generate articles
  • Generate images
  • Generate related articles and images
  • Get suggestion what to write next
